Hello

I allow myself to post again this request about LACP supporting trunk as if this would not be implemented, it will impact strongly our use case deployment.

Thank you
Regards
Xavier

Le 17/10/2022 à 18:23, Xavier Jeannin a écrit :

Hello

I am still stuck with the creation of LACP handling a trunk.
In the meantime, I review my configuration and see that "bridge-group 2" was not declared in P4 server after correction same pb.
This really something that block this work.

Any suggestion ?

Regards
Xavier

Le 27/09/2022 à 10:37, Xavier Jeannin a écrit :

Hello

I create a testbed on which (see picture attached):

• the client is connected on a WEDGE (L2-PPN) at Layer 2 using Ethernet  or VLAN
• The WEDGE (L2PPN) should be connected to our backbone thanks to a bond of interfaces (LACP). The traffic on the LACP must be a VLAN trunk.

I see a strange behaviour and it is certainly due to how I configure it.

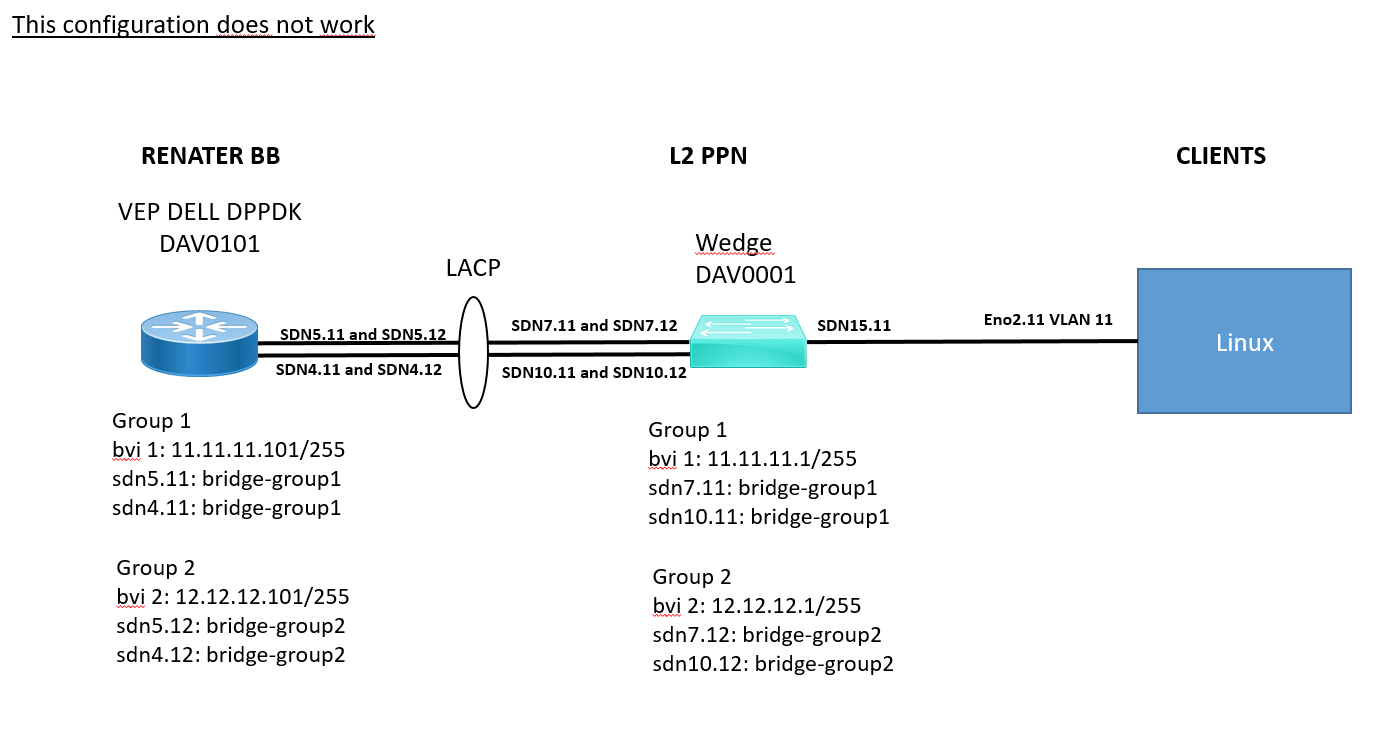

If I put the 2  vlans (11-12) on the all interfaces taking part on the LACP, it does not work.

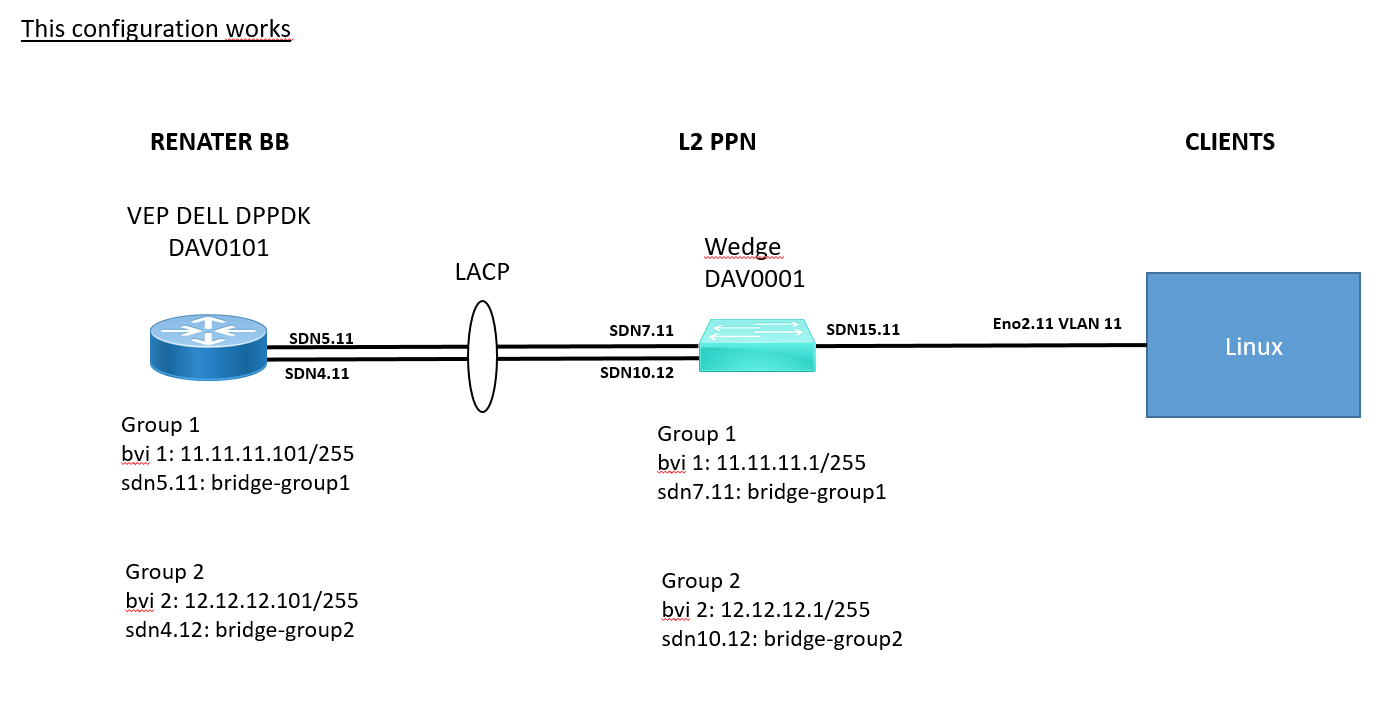

If  I put the 1 vlan only on each interface of the taking part on the LACP, it  works. But in this case the traffic should not be well shared between the LACP links.

I suspect I implement this use case not appropriately (see configuration attached + picture). Any suggestion?

Regards
Xavier

--
