Le 24/10/2022 à 15:52, mc36 a écrit :

    uhhh, please
      remove the ip address from the bvi1 and bun1.11,

      as if it have an ip then it'll be exported as routed port...

      also please remove the export-port bvi1 dynamic beforehand...

      also a clear p4 p4 may be needed after doing so...

      after that, if the bridge tables stays the same, it should work...

thank you
I will do it but If I suppress the address on bvi1 and bun1.11, how can I ping from DAV0001 to DAV0101?

I put here show bundle result

br
Xavier

    br,

      cs



      On 10/24/22 15:47, Xavier Jeannin wrote:

> Hi
>
>
>         Thank you for your help
>
>
>         I just come back and put the IP address on the bviX interface
>         instead of Bund1.X
>
>
>         Find below the show bridge1
>
>         It seems the mac learning works
>
>
>         No the from Bund1.11 and now bvi1 - ping does not work
>
>         Would you like I put a IPv4 @ on sdn4.11?
>
>
>
>
>         thank you
>
>         Xavier
>
>
>         Le 24/10/2022    15:16, mc36 a   crit  :
>
> > hi,
> >
> >           sad to hear that.. does the bundling alone work? i saw a .11
> >           subinterface in your configs, does that one ping?
> >
> >           also, does the mac learning at least work? could you please
> >           share sho bri 1 from both boxes?
> >
> >           thanks,
> >
> >           cs
> >
> >
> >
> >           On 10/24/22 14:37, Xavier Jeannin wrote:
> >
> > > Hello Csaba,
> > >
> > >
> > >             I apply your example but it does not work.
> > >
> > >             I am pretty sure, it is a misconfiguration     :-(
> > >
> > >
> > >             I put the configuration of the 2 switch attached and few
> > >             show commands below
> > >
> > >
> > >             Thank you
> > >
> > >             Xavier
> > >
> > >

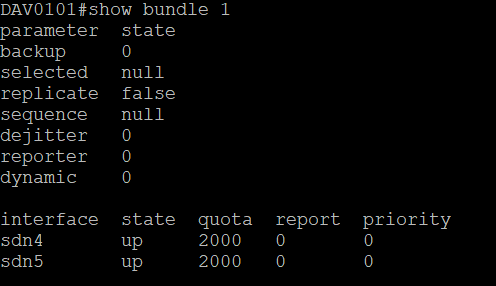

> > >             DAV0101#show bundle 1
> > >
> > >             parameter     state
> > >
> > >             backup                 0
> > >
> > >             selected         null
> > >
> > >             replicate     false
> > >
> > >             sequence         null
> > >
> > >             dejitter         0
> > >
> > >             reporter         0
> > >
> > >             dynamic             0
> > >
> > >
> > >             interface     state     quota     report     priority
> > >
> > >             sdn4                         up                 2000
> > >             0                         0
> > >
> > >             sdn5                         up                 2000
> > >             0                         0
> > >
> > >
> > >             DAV0101#show bundle 1
> > >
> > >             parameter     state
> > >
> > >             backup                 0
> > >
> > >             selected         null
> > >
> > >             replicate     false
> > >
> > >             sequence         null
> > >
> > >             dejitter         0
> > >
> > >             reporter         0
> > >
> > >             dynamic             0
> > >
> > >
> > >             interface     state     quota     report     priority
> > >
> > >             sdn4                         up                 2000
> > >             0                         0
> > >
> > >             sdn5                         up                 2000
> > >             0                         0
> > >
> > >
> > >             DAV0101#show lacp neighbor
> > >
> > >             interface     system port                 state
> > >
> > >             sdn4                         32768.0000.0000.1234.12345
> > >             32768.3     63
> > >
> > >             sdn5                         32768.0000.0000.1234.12345
> > >             32768.1     63
> > >
> > >
> > >

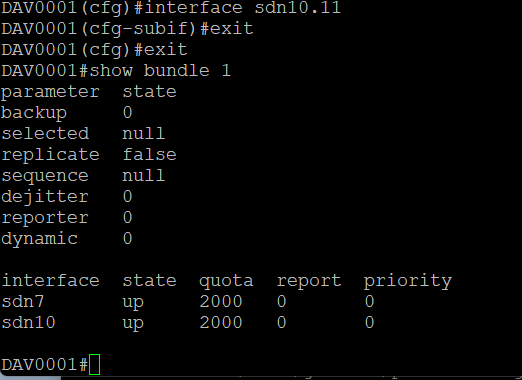

> > >             DAV0001#show bundle 1
> > >
> > >             parameter     state
> > >
> > >             backup                 0
> > >
> > >             selected         null
> > >
> > >             replicate     false
> > >
> > >             sequence         null
> > >
> > >             dejitter         0
> > >
> > >             reporter         0
> > >
> > >             dynamic             0
> > >
> > >
> > >             interface     state     quota     report     priority
> > >
> > >             sdn7                         up                 2000
> > >             0                         0
> > >
> > >             sdn10                     up                 2000
> > >             0                         0
> > >
> > >
> > >             DAV0001#show lacp neighbor
> > >
> > >             interface     system port                 state
> > >
> > >             sdn10                     32768.0000.0000.4321.12345
> > >             32768.4     63
> > >
> > >             sdn7                         32768.0000.0000.4321.12345
> > >             32768.2     63
> > >
> > >
> > >
> > >             Le 24/10/2022       13:07, mc36 a     crit   :
> > >
> > > > hi,
> > > >
> > > >               in general, bundles are created over physical interfaces
> > > >               and not subinterfaces...
> > > >
> > > >               so you have to bundle the sdns togeher, then configure the
> > > >               subinterface on top of the bundle interface...
> > > >
> > > >               much like this:
> > > >               http://sources.freertr.org/cfg/p4lang-rout018.tst
> > > >
> > > >               here you create a vlan 11 subinterface on top of sdn3 and
> > > >               sdn4...
> > > >
> > > >               br,
> > > >
> > > >               cs
> > > >
> > > >
> > > >
> > > >
> > > >               On 10/24/22 12:11, Xavier Jeannin wrote:
> > > >
> > > > > Hello Csaba,
> > > > >
> > > > >
> > > > >                 Thank         you for your email.
> > > > >
> > > > >                 I want to collect our user traffic and put their traffic
> > > > >                 in a dedicated VLAN (then established the BGP peering
> > > > >                 between the RENATER bacbone PE and the client) - see
> > > > >                 picture below.
> > > > >
> > > > >
> > > > >                 My understanding (I am certainly         wrong) is that
> > > > >                 I have to put the interface (sdnXX) in the bundle (not
> > > > >                 the sub interface) and it should be enough (see
> > > > >                 configuration attached).
> > > > >
> > > > >                 But it does not work
> > > > >
> > > > >                 I try also to put the sub-interface but no success.
> > > > >
> > > > >
> > > > >                 Could you advice what type of configuration should I use
> > > > >                 for this use case?
> > > > >
> > > > >
> > > > >                 The example available on
> > > > >                 http://docs.freertr.org/guides/reference/ are
> > > > >
> > > > >
> > > > > conn-bundle01                                                     bundle
> > > > >                 of ethernet port
> > > > >
> > > > > conn-bundle02                                                     bundle
> > > > >                 of serial port
> > > > >
> > > > > conn-bundle03                                                     bundle
> > > > >                 of ethernet ports
> > > > >
> > > > > conn-bundle04                                                     bundle
> > > > >                 of serial ports
> > > > >
> > > > > conn-bundle05                                                     bundle
> > > > >                 over bridge
> > > > >
> > > > > conn-bundle06                                                     bridge
> > > > >                 over bundle
> > > > >
> > > > > conn-bundle07
> > > > >                 replicating bundle
> > > > >
> > > > > conn-bundle08
> > > > >                 unreplicating bundle
> > > > >
> > > > > conn-bundle09
> > > > >                 dejittering bundle
> > > > >
> > > > > conn-bundle10
> > > > >                 loadbalancing bundle
> > > > >
> > > > > conn-bundle11
> > > > >                 multichassis bundle
> > > > >
> > > > > conn-bundle12                                                     backup
> > > > >                 bundle
> > > > >
> > > > >
> > > > >                 Thank you
> > > > >
> > > > >                 Regards
> > > > >
> > > > >                 Xavier
> > > > >
> > > > >
> > > > >                 Le 20/10/2022             10:03, mc36 a         crit
> > > > >                 :
> > > > >
> > > > > > hi,
> > > > > >
> > > > > >                   lacp is there:
> > > > > >
> > > > > >                   you have to configure it per member interface with
> > > > > >                   both the lacp knob and the bundle-group knob...
> > > > > >
> > > > > >                   the first one is just the protocol sender and you can
> > > > > >                   omit if you do "mode on" on the remote side...
> > > > > >
> > > > > >                   so that latter is the interesting part in the
> > > > > >                   fastpath, and it's heavily tested with the
> > > > > >                   dataplanes...
> > > > > >
> > > > > >                   br,
> > > > > >
> > > > > >                   cs
> > > > > >
> > > > > >
> > > > > >                   On 10/20/22 09:58,  wrote:
> > > > > >
> > > > > > > Hello
> > > > > > >
> > > > > > >
> > > > > > >                     I allow myself to post again this request about LACP
> > > > > > >                     supporting trunk as if this would not be
> > > > > > >                     implemented, it will impact strongly our use case
> > > > > > >                     deployment.
> > > > > > >
> > > > > > >
> > > > > > >                     Thank you
> > > > > > >
> > > > > > >                     Regards
> > > > > > >
> > > > > > >                     Xavier
> > > > > > >
> > > > > > >
> > > > > > >                     Le 17/10/2022                         18:23, Xavier
> > > > > > >                     Jeannin a                 crit         :
> > > > > > >
> > > > > > > >
> > > > > > > >                       Hello
> > > > > > > >
> > > > > > > >
> > > > > > > >                       I am still stuck with the creation of LACP
> > > > > > > >                       handling a trunk.
> > > > > > > >
> > > > > > > >                       In the meantime, I review my configuration and see
> > > > > > > >                       that "bridge-group 2" was not declared in P4
> > > > > > > >                       server after correction same pb.
> > > > > > > >
> > > > > > > >                       This really something that block this work.
> > > > > > > >
> > > > > > > >
> > > > > > > >                       Any suggestion ?
> > > > > > > >
> > > > > > > >
> > > > > > > >                       Regards
> > > > > > > >
> > > > > > > >                       Xavier
> > > > > > > >
> > > > > > > >
> > > > > > > >                       Le 27/09/2022                         10:37,
> > > > > > > >                       Xavier Jeannin a                 crit         :
> > > > > > > >
> > > > > > > > >
> > > > > > > > >                         Hello
> > > > > > > > >
> > > > > > > > >
> > > > > > > > >                         I create a testbed on which (see picture
> > > > > > > > >                         attached):
> > > > > > > > >
> > > > > > > > >
> > > > > > > > >                                  * the client is connected on a WEDGE
> > > > > > > > >                         (L2-PPN) at Layer 2 using
> > > > > > > > >                         Ethernet                 or VLAN
> > > > > > > > >
> > > > > > > > >                                  * The WEDGE (L2PPN) should be connected
> > > > > > > > >                         to our backbone thanks to a bond of interfaces
> > > > > > > > >                         (LACP). The traffic on the LACP must be a VLAN
> > > > > > > > >                         trunk.
> > > > > > > > >
> > > > > > > > >
> > > > > > > > >                         I see a strange behaviour and it is certainly
> > > > > > > > >                         due to how I configure it.
> > > > > > > > >
> > > > > > > > >
> > > > > > > > >                         If I put the 2                 vlans (11-12) on
> > > > > > > > >                         the all interfaces taking part on the LACP, it
> > > > > > > > >                         does not work.
> > > > > > > > >
> > > > > > > > >                         If                 I put the 1 vlan only on each
> > > > > > > > >                         interface of the taking part on the LACP,
> > > > > > > > >                         it                 works. But in this case the
> > > > > > > > >                         traffic should not be well shared between the
> > > > > > > > >                         LACP links.
> > > > > > > > >
> > > > > > > > >
> > > > > > > > >                         I suspect I implement this use case not
> > > > > > > > >                         appropriately (see configuration attached +
> > > > > > > > >                         picture). Any suggestion?
> > > > > > > > >
> > > > > > > > >
> > > > > > > > >                         Regards
> > > > > > > > >
> > > > > > > > >                         Xavier
> > > > > > > > >
> > > > > > > > >
> > > > > > > > >
> > > > > > > > >
> > > > > > > > >                         --
> > > > > > > > >                         Xavier JEANNIN
> > > > > > > > >
> > > > > > > > >                         Network Dpt.
> > > > > > > > >
> > > > > > > > >                         GN4-3 Network technology evolution (WP6 T1) task
> > > > > > > > >                         leader
> > > > > > > > >
> > > > > > > > >                         T         l. : +33 1 5394 2042
> > > > > > > > >
> > > > > > > > >                         Mob. : +33 6 3017 0963
> > > > > > > > >
> > > > > > > > >                         www.renater.fr
> > > > > > > > >
> > > > > > > > >
> > > > > > > >                       --
> > > > > > > >                       Xavier JEANNIN
> > > > > > > >
> > > > > > > >                       Network Dpt.
> > > > > > > >
> > > > > > > >                       GN4-3 Network technology evolution (WP6 T1) task
> > > > > > > >                       leader
> > > > > > > >
> > > > > > > >                       T         l. : +33 1 5394 2042
> > > > > > > >
> > > > > > > >                       Mob. : +33 6 3017 0963
> > > > > > > >
> > > > > > > >                       www.renater.fr
> > > > > > > >
> > > > > > > >
> > > > > > >
> > > > > > >                     --
> > > > > > >                     Xavier JEANNIN
> > > > > > >
> > > > > > >                     Network Dpt.
> > > > > > >
> > > > > > >                     GN4-3 Network technology evolution (WP6 T1) task
> > > > > > >                     leader
> > > > > > >
> > > > > > >                     T         l. : +33 1 5394 2042
> > > > > > >
> > > > > > >                     Mob. : +33 6 3017 0963
> > > > > > >
> > > > > > >                     www.renater.fr
> > > > > > >
> > > > > > >
> > > > > > >                     _._,_._,_
> > > > > > >
> > > > > > > ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
> > > > > > >
> > > > > > >                     Groups.io Links:
> > > > > > >
> > > > > > >
> > > > > > >                     You receive all messages sent to this group.
> > > > > > >
> > > > > > >
> > > > > > >                     View/Reply Online (#768)
> > > > > > >                     <https://groups.io/g/freertr/message/768> |
> > > > > > >                     Reply To Group
> > > > > > >
> > > > > > >                     | Reply To Sender
> > > > > > >
> > > > > > >                     | Mute This Topic
> > > > > > >                     <https://groups.io/mt/93945667/6006518> | New
> > > > > > >                     Topic <https://groups.io/g/freertr/post>
> > > > > > >
> > > > > > >                     Your Subscription
> > > > > > >                     <https://groups.io/g/freertr/editsub/6006518>
> > > > > > >                     | Contact Group Owner
> > > > > > >                      | Unsubscribe
> > > > > > >                     <https://groups.io/g/freertr/unsub> []
> > > > > > >
> > > > > > >
> > > > > > >                     _._,_._,_
> > > > > > >
> > > > > > >
> > > > > >                   From - Fri Oct 21 08:43:28 2022
> > > > > >
> > > > > >                   X-Mozilla-Status: 0001
> > > > > >
> > > > > >                   X-Mozilla-Status2: 00000000
> > > > > >
> > > > > >                   Return-Path:
> > > > > >
> > > > > >
> > > > > >                   Received: from zmtain01.partage.renater.fr (LHLO
> > > > > >
> > > > > >                   zmtain01.partage.renater.fr) (194.254.240.20) by
> > > > > >
> > > > > >                   zstore-b1-018.partage.renater.fr with LMTP; Fri, 21
> > > > > >                   Oct 2022 06:02:16
> > > > > >
> > > > > >
> > > > >
> > > > >                 --
> > > > >                 Xavier JEANNIN
> > > > >
> > > > >                 Network Dpt.
> > > > >
> > > > >                 GN4-3 Network technology evolution (WP6 T1) task leader
> > > > >
> > > > >                 T     l. : +33 1 5394 2042
> > > > >
> > > > >                 Mob. : +33 6 3017 0963
> > > > >
> > > > >                 www.renater.fr
> > > > >
> > > > >
> > > > >
> > > >
> > >
> >
>         --
>         Xavier JEANNIN
>
>         Network Dpt.
>
>         GN4-3 Network technology evolution (WP6 T1) task leader
>
>         T  l. : +33 1 5394 2042
>
>         Mob. : +33 6 3017 0963
>
>         www.renater.fr
>
>
>

--
Xavier JEANNIN
Network Dpt.
GN4-3 Network technology evolution (WP6 T1) task leader
Tél. : +33 1 5394 2042
Mob. : +33 6 3017 0963
www.renater.fr
