RARE user and assistance email list

[Xavier Jeannin <>]

Hi

Thank you for your help

I just come back and put the IP address on the bviX interface instead of Bund1.X

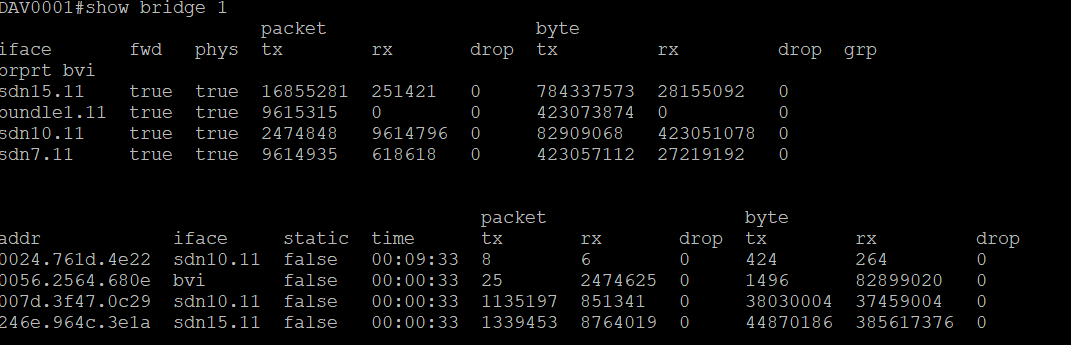

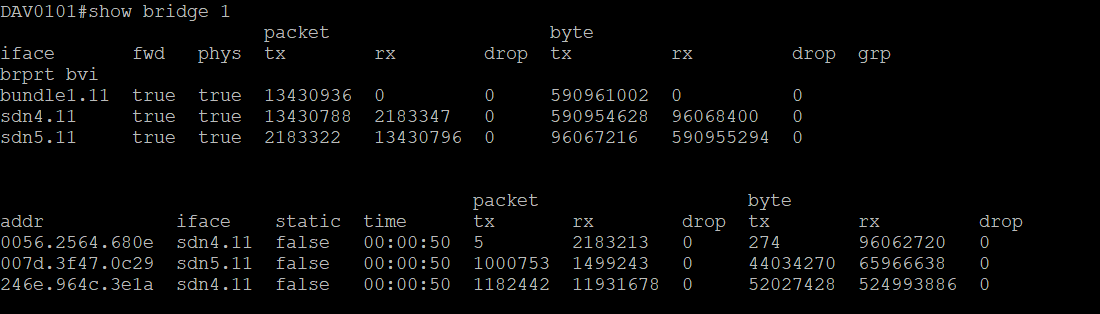

Find below the show bridge1
It seems the mac learning works

No the from Bund1.11 and now bvi1 - ping does not work
Would you like I put a IPv4 @ on sdn4.11?

thank you
Xavier

Le 24/10/2022 à 15:16, mc36 a écrit :

    hi,

      sad to hear that.. does the bundling alone work? i saw a .11
      subinterface in your configs, does that one ping?

      also, does the mac learning at least work? could you please share
      sho bri 1 from both boxes?

      thanks,

      cs



      On 10/24/22 14:37, Xavier Jeannin wrote:

> Hello Csaba,
>
>
>         I apply your example but it does not work.
>
>         I am pretty sure, it is a misconfiguration   :-(
>
>
>         I put the configuration of the 2 switch attached and few show
>         commands below
>
>
>         Thank you
>
>         Xavier
>
>
>         DAV0101#show bundle 1
>
>         parameter   state
>
>         backup         0
>
>         selected     null
>
>         replicate   false
>
>         sequence     null
>
>         dejitter     0
>
>         reporter     0
>
>         dynamic       0
>
>
>         interface   state   quota   report   priority
>
>         sdn4             up         2000     0             0
>
>         sdn5             up         2000     0             0
>
>
>         DAV0101#show bundle 1
>
>         parameter   state
>
>         backup         0
>
>         selected     null
>
>         replicate   false
>
>         sequence     null
>
>         dejitter     0
>
>         reporter     0
>
>         dynamic       0
>
>
>         interface   state   quota   report   priority
>
>         sdn4             up         2000     0             0
>
>         sdn5             up         2000     0             0
>
>
>         DAV0101#show lacp neighbor
>
>         interface   system
>         port         state
>
>         sdn4             32768.0000.0000.1234.12345   32768.3   63
>
>         sdn5             32768.0000.0000.1234.12345   32768.1   63
>
>
>
>         DAV0001#show bundle 1
>
>         parameter   state
>
>         backup         0
>
>         selected     null
>
>         replicate   false
>
>         sequence     null
>
>         dejitter     0
>
>         reporter     0
>
>         dynamic       0
>
>
>         interface   state   quota   report   priority
>
>         sdn7             up         2000     0             0
>
>         sdn10           up         2000     0             0
>
>
>         DAV0001#show lacp neighbor
>
>         interface   system
>         port         state
>
>         sdn10           32768.0000.0000.4321.12345   32768.4   63
>
>         sdn7             32768.0000.0000.4321.12345   32768.2   63
>
>
>
>         Le 24/10/2022    13:07, mc36 a   crit  :
>
> > hi,
> >
> >           in general, bundles are created over physical interfaces and
> >           not subinterfaces...
> >
> >           so you have to bundle the sdns togeher, then configure the
> >           subinterface on top of the bundle interface...
> >
> >           much like this:
> >           http://sources.freertr.org/cfg/p4lang-rout018.tst
> >
> >           here you create a vlan 11 subinterface on top of sdn3 and
> >           sdn4...
> >
> >           br,
> >
> >           cs
> >
> >
> >
> >
> >           On 10/24/22 12:11, Xavier Jeannin wrote:
> >
> > > Hello Csaba,
> > >
> > >
> > >             Thank     you for your email.
> > >
> > >             I want to collect our user traffic and put their traffic in
> > >             a dedicated VLAN (then established the BGP peering between
> > >             the RENATER bacbone PE and the client) - see picture below.
> > >
> > >
> > >             My understanding (I am certainly     wrong) is that I have
> > >             to put the interface (sdnXX) in the bundle (not the sub
> > >             interface) and it should be enough (see configuration
> > >             attached).
> > >
> > >             But it does not work
> > >
> > >             I try also to put the sub-interface but no success.
> > >
> > >
> > >             Could you advice what type of configuration should I use for
> > >             this use case?
> > >
> > >
> > >             The example available on
> > >             http://docs.freertr.org/guides/reference/ are
> > >
> > >
> > >             conn-bundle01                           bundle of ethernet
> > >             port
> > >
> > >             conn-bundle02                           bundle of serial
> > >             port
> > >
> > >             conn-bundle03                           bundle of ethernet
> > >             ports
> > >
> > >             conn-bundle04                           bundle of serial
> > >             ports
> > >
> > >             conn-bundle05                           bundle over bridge
> > >
> > >             conn-bundle06                           bridge over bundle
> > >
> > >             conn-bundle07                           replicating bundle
> > >
> > >             conn-bundle08                           unreplicating bundle
> > >
> > >             conn-bundle09                           dejittering bundle
> > >
> > >             conn-bundle10                           loadbalancing bundle
> > >
> > >             conn-bundle11                           multichassis bundle
> > >
> > >             conn-bundle12                           backup bundle
> > >
> > >
> > >             Thank you
> > >
> > >             Regards
> > >
> > >             Xavier
> > >
> > >
> > >             Le 20/10/2022       10:03, mc36 a     crit   :
> > >
> > > > hi,
> > > >
> > > >               lacp is there:
> > > >
> > > >               you have to configure it per member interface with both
> > > >               the lacp knob and the bundle-group knob...
> > > >
> > > >               the first one is just the protocol sender and you can omit
> > > >               if you do "mode on" on the remote side...
> > > >
> > > >               so that latter is the interesting part in the fastpath,
> > > >               and it's heavily tested with the dataplanes...
> > > >
> > > >               br,
> > > >
> > > >               cs
> > > >
> > > >
> > > >               On 10/20/22 09:58,  wrote:
> > > >
> > > > > Hello
> > > > >
> > > > >
> > > > >                 I allow myself to post again this request about LACP
> > > > >                 supporting trunk as if this would not be implemented, it
> > > > >                 will impact strongly our use case deployment.
> > > > >
> > > > >
> > > > >                 Thank you
> > > > >
> > > > >                 Regards
> > > > >
> > > > >                 Xavier
> > > > >
> > > > >
> > > > >                 Le 17/10/2022             18:23, Xavier Jeannin
> > > > >                 a         crit     :
> > > > >
> > > > > >
> > > > > >                   Hello
> > > > > >
> > > > > >
> > > > > >                   I am still stuck with the creation of LACP handling a
> > > > > >                   trunk.
> > > > > >
> > > > > >                   In the meantime, I review my configuration and see
> > > > > >                   that "bridge-group 2" was not declared in P4 server
> > > > > >                   after correction same pb.
> > > > > >
> > > > > >                   This really something that block this work.
> > > > > >
> > > > > >
> > > > > >                   Any suggestion ?
> > > > > >
> > > > > >
> > > > > >                   Regards
> > > > > >
> > > > > >                   Xavier
> > > > > >
> > > > > >
> > > > > >                   Le 27/09/2022             10:37, Xavier Jeannin
> > > > > >                   a         crit     :
> > > > > >
> > > > > > >
> > > > > > >                     Hello
> > > > > > >
> > > > > > >
> > > > > > >                     I create a testbed on which (see picture attached):
> > > > > > >
> > > > > > >
> > > > > > >                          * the client is connected on a WEDGE (L2-PPN)
> > > > > > >                     at Layer 2 using Ethernet         or VLAN
> > > > > > >
> > > > > > >                          * The WEDGE (L2PPN) should be connected to our
> > > > > > >                     backbone thanks to a bond of interfaces (LACP). The
> > > > > > >                     traffic on the LACP must be a VLAN trunk.
> > > > > > >
> > > > > > >
> > > > > > >                     I see a strange behaviour and it is certainly due to
> > > > > > >                     how I configure it.
> > > > > > >
> > > > > > >
> > > > > > >                     If I put the 2         vlans (11-12) on the all
> > > > > > >                     interfaces taking part on the LACP, it does not
> > > > > > >                     work.
> > > > > > >
> > > > > > >                     If         I put the 1 vlan only on each interface
> > > > > > >                     of the taking part on the LACP, it         works.
> > > > > > >                     But in this case the traffic should not be well
> > > > > > >                     shared between the LACP links.
> > > > > > >
> > > > > > >
> > > > > > >                     I suspect I implement this use case not
> > > > > > >                     appropriately (see configuration attached +
> > > > > > >                     picture). Any suggestion?
> > > > > > >
> > > > > > >
> > > > > > >                     Regards
> > > > > > >
> > > > > > >                     Xavier
> > > > > > >
> > > > > > >
> > > > > > >
> > > > > > >
> > > > > > >                     --
> > > > > > >                     Xavier JEANNIN
> > > > > > >
> > > > > > >                     Network Dpt.
> > > > > > >
> > > > > > >                     GN4-3 Network technology evolution (WP6 T1) task
> > > > > > >                     leader
> > > > > > >
> > > > > > >                     T     l. : +33 1 5394 2042
> > > > > > >
> > > > > > >                     Mob. : +33 6 3017 0963
> > > > > > >
> > > > > > >                     www.renater.fr
> > > > > > >
> > > > > > >
> > > > > >                   --
> > > > > >                   Xavier JEANNIN
> > > > > >
> > > > > >                   Network Dpt.
> > > > > >
> > > > > >                   GN4-3 Network technology evolution (WP6 T1) task
> > > > > >                   leader
> > > > > >
> > > > > >                   T     l. : +33 1 5394 2042
> > > > > >
> > > > > >                   Mob. : +33 6 3017 0963
> > > > > >
> > > > > >                   www.renater.fr
> > > > > >
> > > > > >
> > > > >
> > > > >                 --
> > > > >                 Xavier JEANNIN
> > > > >
> > > > >                 Network Dpt.
> > > > >
> > > > >                 GN4-3 Network technology evolution (WP6 T1) task leader
> > > > >
> > > > >                 T     l. : +33 1 5394 2042
> > > > >
> > > > >                 Mob. : +33 6 3017 0963
> > > > >
> > > > >                 www.renater.fr
> > > > >
> > > > >
> > > > >                 _._,_._,_
> > > > >
> > > > > ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
> > > > >
> > > > >                 Groups.io Links:
> > > > >
> > > > >
> > > > >                 You receive all messages sent to this group.
> > > > >
> > > > >
> > > > >                 View/Reply Online (#768)
> > > > >                 <https://groups.io/g/freertr/message/768> | Reply
> > > > >                 To Group
> > > > >
> > > > >                 | Reply To Sender
> > > > >
> > > > >                 | Mute This Topic
> > > > >                 <https://groups.io/mt/93945667/6006518> | New
> > > > >                 Topic <https://groups.io/g/freertr/post>
> > > > >
> > > > >                 Your Subscription
> > > > >                 <https://groups.io/g/freertr/editsub/6006518> |
> > > > >                 Contact Group Owner
> > > > >                  | Unsubscribe
> > > > >                 <https://groups.io/g/freertr/unsub> []
> > > > >
> > > > >
> > > > >                 _._,_._,_
> > > > >
> > > > >
> > > >               From - Fri Oct 21 08:43:28 2022
> > > >
> > > >               X-Mozilla-Status: 0001
> > > >
> > > >               X-Mozilla-Status2: 00000000
> > > >
> > > >               Return-Path:
> > > >
> > > >
> > > >               Received: from zmtain01.partage.renater.fr (LHLO
> > > >
> > > >               zmtain01.partage.renater.fr) (194.254.240.20) by
> > > >
> > > >               zstore-b1-018.partage.renater.fr with LMTP; Fri, 21 Oct
> > > >               2022 06:02:16
> > > >
> > > >
> > >
> > >             --
> > >             Xavier JEANNIN
> > >
> > >             Network Dpt.
> > >
> > >             GN4-3 Network technology evolution (WP6 T1) task leader
> > >
> > >             T   l. : +33 1 5394 2042
> > >
> > >             Mob. : +33 6 3017 0963
> > >
> > >             www.renater.fr
> > >
> > >
> > >
> >
>

--
Xavier JEANNIN
Network Dpt.
GN4-3 Network technology evolution (WP6 T1) task leader
Tél. : +33 1 5394 2042
Mob. : +33 6 3017 0963
www.renater.fr

DAV0101#show running-config hide
hostname DAV0101
buggy
!
logging buffered debug 8192
logging file debug zzz.log
logging rotate 65536000 zzz.old
!
crypto rsakey rsa import $w10$<removed>$
!
crypto dsakey dsa import $w10$<removed>$
!
crypto ecdsakey ecdsa import $w10$<removed>$
!
aaa userlist usr
 username rare
 username rare password $w10$<removed>$
 exit
!
scheduler errors
 time 600000
 delay 30000
 command clear errors
 start
 exit
!
scheduler upgrade
 time 600000
 delay 60000
 random-time 60000
 random-delay 300000
 command flash upgrade
 start
 exit
!
object-group network host4
 sequence 10 10.255.255.0 255.255.255.0
 exit
!
object-group network host6
 sequence 10 2001:db8:ffff:ffff:: ffff:ffff:ffff:ffff::
 exit
!
object-group network lloc4
 sequence 10 169.254.0.0 255.255.0.0
 exit
!
object-group network lloc6
 sequence 10 fe80:: ffff::
 exit
!
object-group network mcast4
 sequence 10 224.0.0.0 255.255.0.0
 exit
!
object-group network mcast6
 sequence 10 ff00:: ff00::
 exit
!
access-list nat4
 sequence 10 deny all obj lloc4 all any all
 sequence 20 deny all any all obj mcast4 all
 sequence 30 deny all obj host4 all obj host4 all
 sequence 40 permit all obj host4 all any all
 exit
!
access-list nat6
 sequence 10 deny all obj lloc6 all any all
 sequence 20 deny all any all obj mcast6 all
 sequence 30 deny all obj host6 all obj host6 all
 sequence 40 permit all obj host6 all any all
 exit
!
access-list test4
 sequence 10 permit all any all 3.3.3.3 255.255.255.255 all
 exit
!
prefix-list all4
 sequence 10 permit 0.0.0.0/0 ge 0 le 0
 exit
!
prefix-list all6
 sequence 10 permit ::/0 ge 0 le 0
 exit
!
bundle 1
 exit
!
bridge 1
 mac-learn
 exit
!
bridge 2
 mac-learn
 exit
!
vrf definition inet
 exit
!
vrf definition oob
 exit
!
vrf definition p4
 exit
!
vrf definition pr_vrf
 exit
!
router ospf4 1
 vrf inet
 router-id 10.1.3.3
 traffeng-id 0.0.0.0
 area 0 enable
 exit
!
router ospf6 1
 vrf inet
 router-id 10.1.3.3
 traffeng-id ::
 area 0 enable
 exit
!
interface loopback0
 vrf forwarding inet
 ipv4 address 10.1.3.3 255.255.255.255
 router ospf4 1 enable
 router ospf4 1 area 0
 router ospf4 1 passive
 no shutdown
 no log-link-change
 exit
!
interface loopback1
 vrf forwarding inet
 ipv4 address 2.2.2.3 255.255.255.255
 ipv6 address 4321::3 ffff:ffff:ffff:ffff:ffff:ffff:ffff:ffff
 router ospf4 1 enable
 router ospf4 1 area 0
 router ospf4 1 passive
 router ospf6 1 enable
 router ospf6 1 area 0
 router ospf6 1 passive
 no shutdown
 no log-link-change
 exit
!
interface loopback3333
 vrf forwarding inet
 ipv4 address 3.3.3.3 255.255.255.255
 no shutdown
 no log-link-change
 exit
!
interface bundle1
 description "Bundle to PPN"
 no shutdown
 no log-link-change
 exit
!
interface bundle1.11
 bridge-group 1
 no shutdown
 no log-link-change
 exit
!
interface bundle1.12
 bridge-group 2
 no shutdown
 no log-link-change
 exit
!
interface bvi1
 vrf forwarding inet
 ipv4 address 11.11.11.101 255.255.255.0
 no shutdown
 no log-link-change
 exit
!
interface bvi2
 vrf forwarding inet
 ipv4 address 12.12.12.101 255.255.255.0
 no shutdown
 no log-link-change
 exit
!
interface ethernet0
 description p4 cpu port
 no shutdown
 no log-link-change
 exit
!
interface sdn1
 mtu 1500
 macaddr 0028.7866.2c41
 lldp enable
 vrf forwarding inet
 ipv4 address 10.1.34.3 255.255.255.0
 shutdown
 no log-link-change
 exit
!
interface sdn2
 mtu 1500
 macaddr 0040.572f.3c09
 lldp enable
 vrf forwarding inet
 ipv4 address 10.2.34.3 255.255.255.0
 shutdown
 no log-link-change
 exit
!
interface sdn3
 mtu 1500
 macaddr 0009.1275.1e69
 lldp enable
 vrf forwarding inet
 ipv4 address 10.3.34.3 255.255.255.0
 shutdown
 no log-link-change
 exit
!
interface sdn4
 mtu 1500
 macaddr 004f.3b5b.5353
 lldp enable
 lacp 0000.0000.4321 12345 4
 bundle-group 1
 vrf forwarding inet
 no shutdown
 no log-link-change
 exit
!
interface sdn4.11
 bridge-group 1
 no shutdown
 no log-link-change
 exit
!
interface sdn4.12
 bridge-group 2
 no shutdown
 no log-link-change
 exit
!
interface sdn5
 mtu 1500
 macaddr 0060.1a21.1d27
 lldp enable
 lacp 0000.0000.4321 12345 2
 bundle-group 1
 no shutdown
 no log-link-change
 exit
!
interface sdn5.11
 bridge-group 1
 no shutdown
 no log-link-change
 exit
!
interface sdn5.12
 bridge-group 2
 no shutdown
 no log-link-change
 exit
!
interface sdn6
 mtu 1500
 macaddr 0061.4870.5670
 lldp enable
 vrf forwarding inet
 ipv4 address 10.6.34.3 255.255.255.0
 shutdown
 no log-link-change
 exit
!
interface sdn7
 mtu 1500
 macaddr 0067.2724.3157
 lldp enable
 vrf forwarding inet
 ipv4 address 10.7.34.3 255.255.255.0
 shutdown
 no log-link-change
 exit
!
proxy-profile inet
 vrf inet
 exit
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
sensor ifaces-hw
 path interfaces-hw/interface/counter
 prefix freertr-ifaces
 prepend iface_hw_byte_
 command sho inter hwsumm
 name 0 ifc=
 key name interfaces-hw/interface
 replace \. _
 column 1 name st
 column 1 replace admin -1
 column 1 replace down 0
 column 1 replace up 1
 column 2 name tx
 column 3 name rx
 column 4 name dr
 exit
!
sensor ifaces-sw
 path interfaces-sw/interface/counter
 prefix freertr-ifaces
 prepend iface_sw_byte_
 command sho inter swsumm
 name 0 ifc=
 key name interfaces-sw/interface
 replace \. _
 column 1 name st
 column 1 replace admin -1
 column 1 replace down 0
 column 1 replace up 1
 column 2 name tx
 column 3 name rx
 column 4 name dr
 exit
!
alias test bash command attach shell1 socat - exec:bash,ctty,pty,stderr
alias test bash description get linux shell
!
server telnet inet
 security protocol telnet
 security authentication usr
 exec logging
 no exec authorization
 login authentication usr
 login logging
 interface loopback3333
 vrf inet
 exit
!
server telnet oob
 security authentication usr
 security rsakey rsa
 security dsakey dsa
 security ecdsakey ecdsa
 second-port 22
 exec logging
 no exec authorization
 login authentication usr
 login logging
 vrf oob
 exit
!
server telnet p4
 security protocol telnet
 no exec authorization
 no login authentication
 vrf p4
 exit
!
server telnet tel
 security rsakey rsa
 security dsakey dsa
 security ecdsakey ecdsa
 access-log
 access-rate 5 5000
 access-total 5
 access-peer 5
 protocol ipv4 tcp
 second-port 22
 exec logging
 no exec authorization
 no login authentication
 login logging
 login last global
 vrf inet
 exit
!
server p4lang p4
 export-vrf inet
 export-vrf oob
 export-bridge 1
 export-bridge 2
 export-port sdn1 0 1 0 0 0
 export-port sdn2 1 1 0 0 0
 export-port sdn3 2 1 0 0 0
 export-port sdn4 3 10 0 0 0
 export-port sdn5 4 10 0 0 0
 export-port sdn6 5 1 0 0 0
 export-port sdn7 6 1 0 0 0
 export-port bundle1 dynamic 0 0 0 0
 export-port bvi1 dynamic 0 0 0 0
 interconnect ethernet0
 vrf p4
 exit
!
server dns ns
 recursion enable
 vrf inet
 exit
!
server prometheus pr
 sensor ifaces-hw
 sensor ifaces-sw
 interface bvi1
 vrf inet
 exit
!
client proxy inet
client name-server 193.49.159.2
client upgrade-server http://upgrade.nop.hu/
client upgrade-backup
client config-backup
client time-server europe.pool.ntp.org
client time-zone CET
!
end
DAV0001#show running-config hide
hostname DAV0001
buggy
!
logging buffered debug 10240
logging file debug /var/log/freertr.log
logging rotate 655360000 /var/log/freertr.old
!
crypto rsakey rsa import $w10$<removed>$
!
crypto dsakey dsa import $w10$<removed>$
!
crypto ecdsakey ecdsa import $w10$<removed>$
!
aaa userlist usr
 username rare
 exit
!
scheduler errors
 time 600000
 delay 30000
 command clear errors
 start
 exit
!
access-list test1
 exit
!
prefix-list all4
 sequence 10 permit 0.0.0.0/0 ge 0 le 0
 exit
!
prefix-list all6
 sequence 10 permit ::/0 ge 0 le 0
 exit
!
bundle 1
 exit
!
bridge 1
 mac-learn
 exit
!
bridge 2
 mac-learn
 exit
!
vrf definition inet
 exit
!
vrf definition lin
 exit
!
vrf definition oob
 exit
!
vrf definition p4
 description P4 VRF _NEVER_EVER_ CONFIGURE IT
 exit
!
interface bundle1
 description "Bundle to RENATER"
 no shutdown
 no log-link-change
 exit
!
interface bundle1.11
 bridge-group 1
 no shutdown
 no log-link-change
 exit
!
interface bundle1.12
 bridge-group 2
 no shutdown
 no log-link-change
 exit
!
interface bvi1
 vrf forwarding inet
 ipv4 address 11.11.11.1 255.255.255.0
 no shutdown
 no log-link-change
 exit
!
interface bvi2
 vrf forwarding inet
 ipv4 address 12.12.12.1 255.255.255.0
 no shutdown
 no log-link-change
 exit
!
interface ethernet0
 description CPU_PORT _NEVER_EVER_ CONFIGURE IT
 no shutdown
 no log-link-change
 exit
!
interface ethernet1
 description out of band management port
 vrf forwarding oob
 ipv4 address dynamic dynamic
 ipv4 gateway-prefix all4
 ipv4 dhcp-client enable
 ipv4 dhcp-client early
 ipv6 address dynamic dynamic
 ipv6 gateway-prefix all6
 ipv6 slaac-client enable
 ipv6 prefix-suppress
 no shutdown
 no log-link-change
 exit
!
interface ethernet2
 description linux tuntap management interface
 vrf forwarding lin
 ipv4 address 10.255.255.254 255.255.255.0
 no shutdown
 no log-link-change
 exit
!
interface sdn10
 description frontpanel port 10/0
 mtu 1500
 macaddr 0031.755e.0363
 monitor-session ethernet2
 lldp enable
 lacp 0000.0000.1234 12345 3
 bundle-group 1
 no shutdown
 no log-link-change
 exit
!
interface sdn10.11
 bridge-group 1
 no shutdown
 no log-link-change
 exit
!
interface sdn10.12
 bridge-group 2
 no shutdown
 no log-link-change
 exit
!
interface sdn15
 description frontpanel port 15/0
 mtu 1500
 bandwidth 10000000
 macaddr 0056.2158.6249
 lldp enable
 vrf forwarding inet
 no shutdown
 log-link-change
 exit
!
interface sdn15.11
 bridge-group 1
 no shutdown
 no log-link-change
 exit
!
interface sdn7
 description frontpanel port 7/0
 mtu 1500
 macaddr 0040.784a.0b38
 lldp enable
 lacp 0000.0000.1234 12345 1
 bundle-group 1
 no shutdown
 log-link-change
 exit
!
interface sdn7.11
 bridge-group 1
 no shutdown
 no log-link-change
 exit
!
interface sdn7.12
 bridge-group 2
 no shutdown
 no log-link-change
 exit
!
proxy-profile oob
 vrf oob
 exit
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
sensor ifaces-hw
 path interfaces-hw/interface/counter
 prefix freertr-ifaces
 prepend iface_hw_byte_
 command sho inter hwsumm
 name 0 ifc=
 key name interfaces-hw/interface
 replace \. _
 column 1 name st
 column 1 replace admin -1
 column 1 replace down 0
 column 1 replace up 1
 column 2 name tx
 column 3 name rx
 column 4 name dr
 exit
!
sensor ifaces-sw
 path interfaces-sw/interface/counter
 prefix freertr-ifaces
 prepend iface_sw_byte_
 command sho inter swsumm
 name 0 ifc=
 key name interfaces-sw/interface
 replace \. _
 column 1 name st
 column 1 replace admin -1
 column 1 replace down 0
 column 1 replace up 1
 column 2 name tx
 column 3 name rx
 column 4 name dr
 exit
!
!
!
!
!
!
!
!
!
!
!
alias exec tna-set-profile sticky-param RENATER_PEERING_L2
!
!
!
!
!
!
!
!
!
!
server telnet oob
 security authentication usr
 security rsakey rsa
 security dsakey dsa
 security ecdsakey ecdsa
 second-port 22
 exec logging
 no exec authorization
 login authentication usr
 login logging
 vrf oob
 exit
!
server telnet p4
 security protocol telnet
 exec logging
 no exec authorization
 no login authentication
 login logging
 vrf p4
 exit
!
server p4lang p4
 export-vrf inet
 export-bridge 1
 export-bridge 2
 export-port sdn15 12 10 0 0 0
 export-port sdn10 52 10 0 0 0
 export-port sdn7 176 10 0 0 0
 export-port bundle1 dynamic 0 0 0 0
 export-port bvi1 dynamic 0 0 0 0
 interconnect ethernet0
 vrf p4
 exit
!
server prometheus pr
 sensor ifaces-hw
 sensor ifaces-sw
 interface bvi1
 vrf inet
 exit
!
client proxy oob
client name-server 1.1.1.1
client time-server europe.pool.ntp.org
client time-zone CET
!
end
