Hello

I am still stuck with the creation of LACP handling a trunk.
In the meantime, I review my configuration and see that "bridge-group 2" was not declared in P4 server after correction same pb.
This really something that block this work.

Any suggestion ?

Regards
Xavier

Le 27/09/2022 à 10:37, Xavier Jeannin a écrit :

Hello

I create a testbed on which (see picture attached):

• the client is connected on a WEDGE (L2-PPN) at Layer 2 using Ethernet  or VLAN
• The WEDGE (L2PPN) should be connected to our backbone thanks to a bond of interfaces (LACP). The traffic on the LACP must be a VLAN trunk.

I see a strange behaviour and it is certainly due to how I configure it.

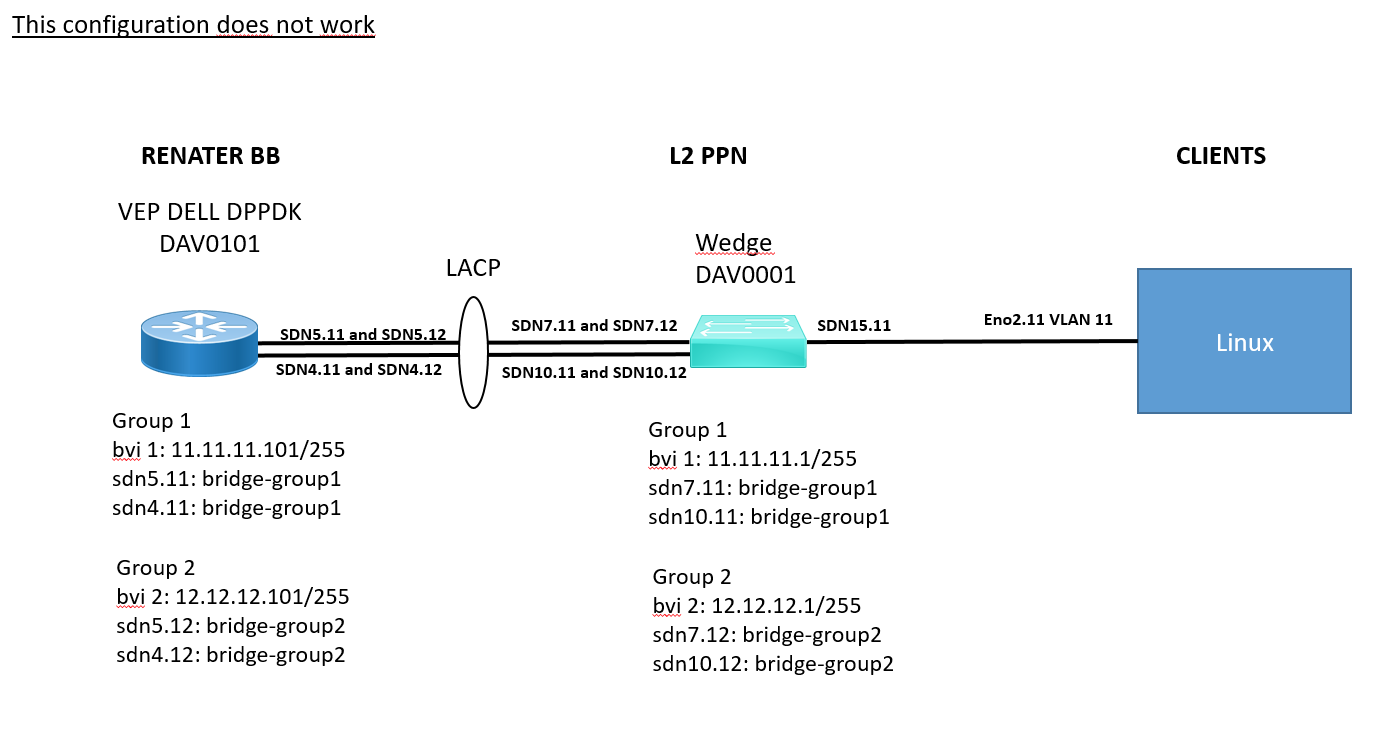

If I put the 2  vlans (11-12) on the all interfaces taking part on the LACP, it does not work.

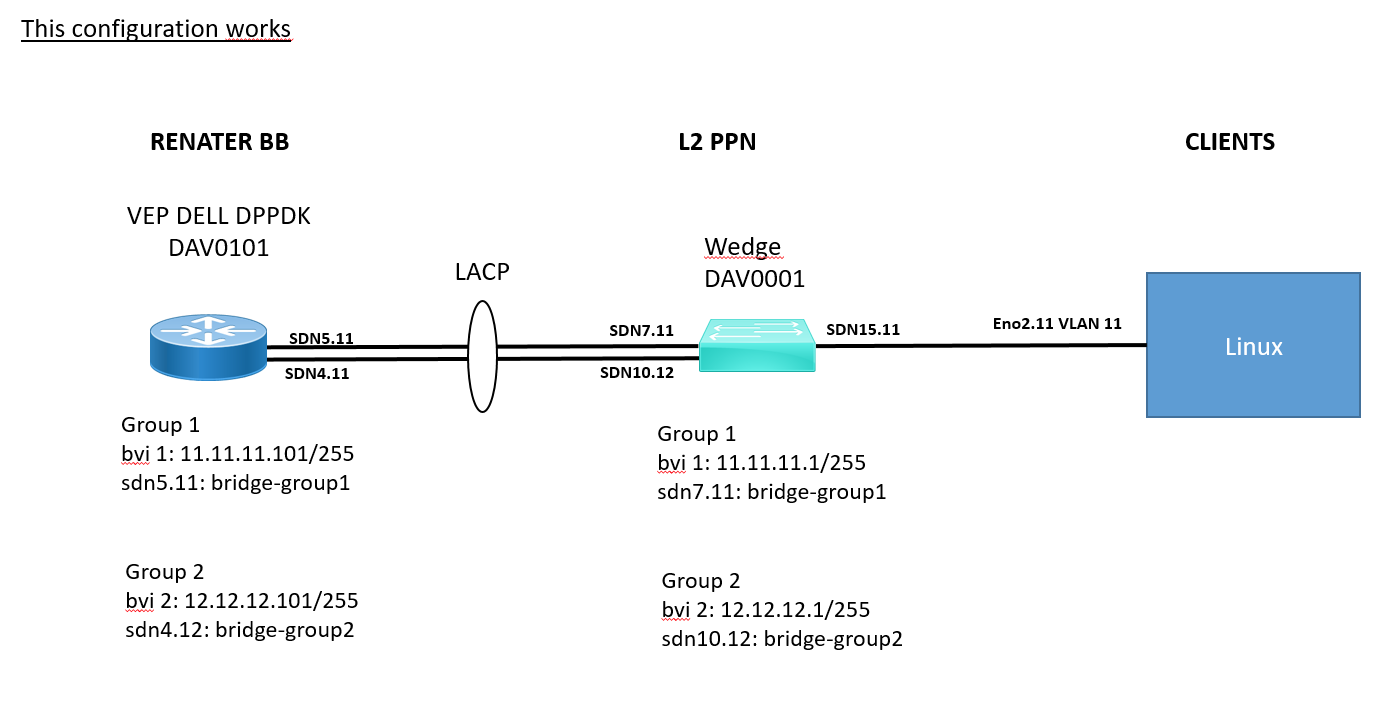

If  I put the 1 vlan only on each interface of the taking part on the LACP, it  works. But in this case the traffic should not be well shared between the LACP links.

I suspect I implement this use case not appropriately (see configuration attached + picture). Any suggestion?

Regards
Xavier

--
