RARE user and assistance email list

[Xavier Jeannin <>]

Thank you very much Csaba

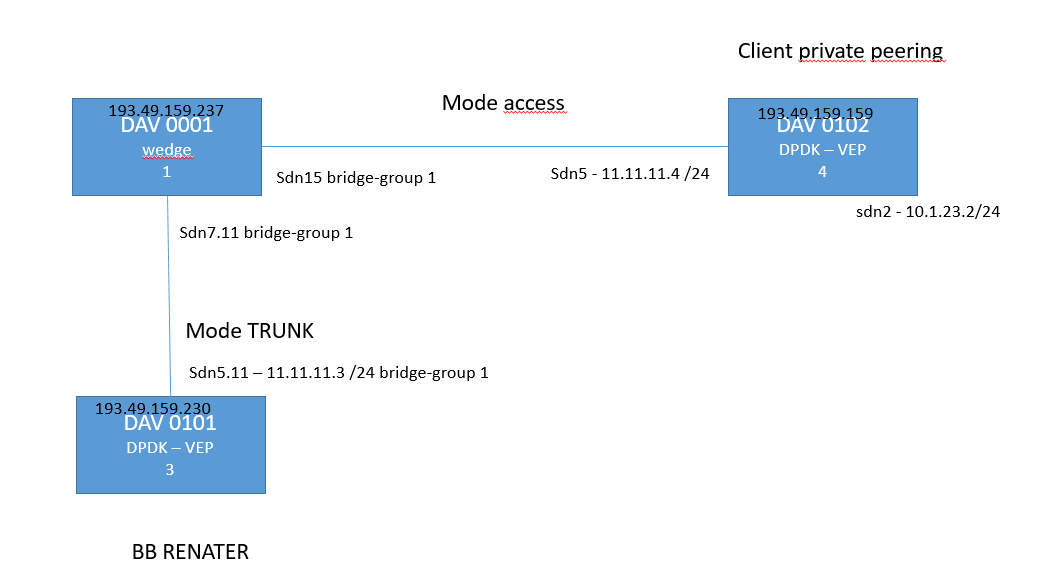

I ping from DAV0102 11.11.11.3 on DAV0101 and it works

The packet capture works nicely on DAV 0101 (DPDK version) both on sdn5 and sdn5.11
But I am not able to capture any Ping packets on the intermediate switch  DAV0001 (Wedge) netiher on sdn15, sdn7 nor on sdn7.11.
On these interface, I can see LLD and L2 broadcast, so I suppose (certainly wrong) that we can capture only packets that goes to control plane?

Thank you
Xavier

Le 11/03/2022 à 16:20, mc36 a écrit :

    you can run
      "pack cap sdnX" in freerouter on all the platforms....



      On 3/11/22 16:16, Xavier Jeannin wrote:

> Dear All,
>
>
>         We would like to check the packets that arrive on a RARE/FreeRtr
>         switch (especially the encapsulation used - check the VLAN tag).
>
>         Would it be possible to start a TCPDump on 1 interface and
>         generate a pcap file that we could then "scp" on our laptop for
>         checking?
>
>         If it is possible I suppose the process to use TCPDump should
>         change according to the platform: Wedge, DPDK, BMv2?
>
>
>         Thank you
>
>         Xavier
>
>
>

--
Xavier JEANNIN
Network Dpt.
GN4-3 Network technology evolution (WP6 T1) task leader
Tél. : +33 1 5394 2042
Mob. : +33 6 3017 0963
www.renater.fr
