The mailing list for users of the eduroam Configuration Assistant Tool (CAT)

[Michele de Varda <michele.devarda AT unimi.it>]

Dear Stefan,

thank you for your help, this configuration seems to work :-)

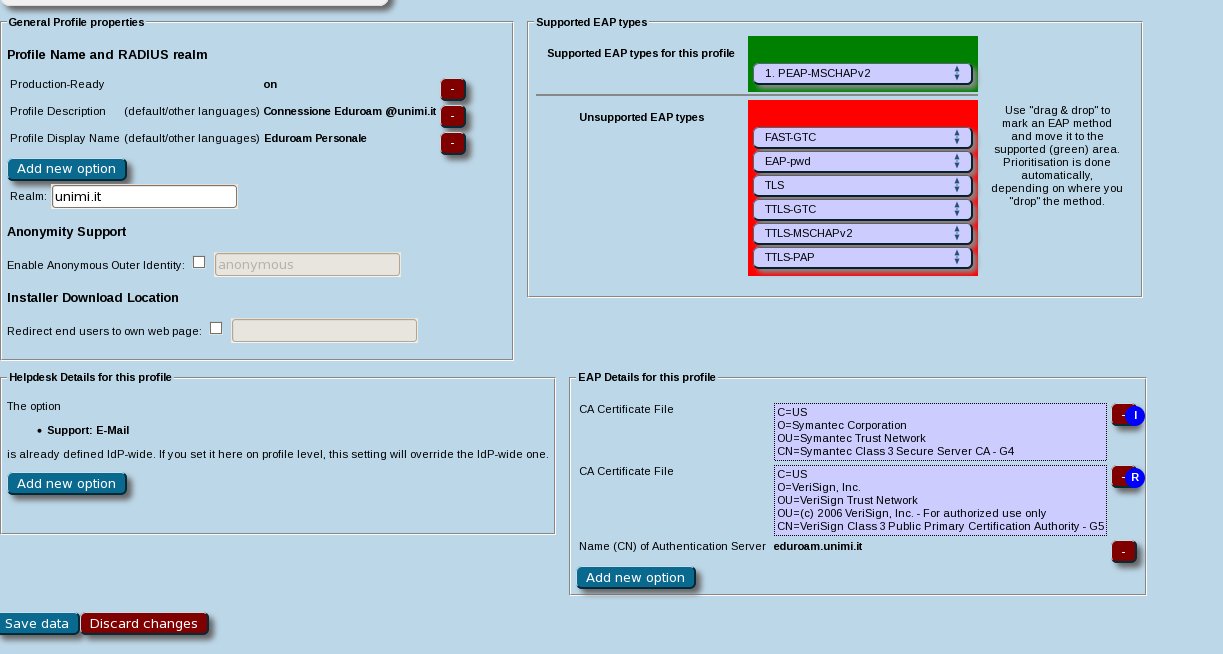

I have installed on the CAT configuration the Root and the G4
Intermediate certificates (see screenshot) and the Class 3 G4
certificate on the RADIUS server.

I have a question: during the installation of a CAT profile on an
Android KitKat device the installer didn't complete the installation and
appeared a warning message like this "You have to set a pin code for the
password manager..."
Is it a normal behavior?

Thanks again,

Michele


On 08/07/2015 04:03 PM, Stefan Winter wrote:
> Hi,
>
> > > EITHER: define the G5 root variant as the root, and *don't* send the
> > > intermediate variant during EAP. This is utterly confusing to the client.
> > In this case  have I to modify the RADIUS certificate putting only
> > server cert +
> > intermediate with only Symantec Class 3 Secure Server CA - G4?
> >
> > On CAT side have I to put only G5 root?
> That root, and for Android to work you also need to upload the Symantec
> Class 3 Secure Server CA - G4.
>
> That should be it. Please check if the warnings are then going away :-)
>
> Stefan
>
> > > OR: define the "Primary CA" as the root, and include the G5 intermediate
> > > variant in CAT config and EAP. Do not send the G5 root variant in the
> > > EAP conversation then.
> > I put the "Class 3 Public Primary Certification Authority"  root
> > certificate on cat configuration (see attached file
> > CAT_certificate_not_working.jpg).
> > Android seems to work but in the Wi-Fi config I see "certificate not
> > specified", Windows 7 doesn't work and when I run cat conf tool I see a
> > message that I have never seen with the old confs  (see CAT_message.jpg).
> > In this case I didn't touch the RADIUS server certificate.
> >
> > > (in both cases, of course continue to send the G4 intermediate)
> > >
> > > This is mostly a mess on VeriSign's side - but you need to be cautious,
> > > too. "More helps more" does not apply to PKI certificates. You need to
> > > send a consistent message. Superfluous items are okay (for most client
> > > devices), but *conflicting ones* are not.
> > You are right, I hope to not have conflicting items :-)
> >
> > > Greetings,
> > >
> > > Stefan Winter
> > Thanks a lot,
> >
> > Michele

--
Michele de Varda

Università degli Studi di Milano
Divisione Telecomunicazioni
via G. Colombo 46
20133 Milano
Tel. 02 50315306

Attachment: CAT_working_with_Android.jpg
Description: JPEG image
