Hi,

> I have uploaded a Terena certificate, but not a chain.

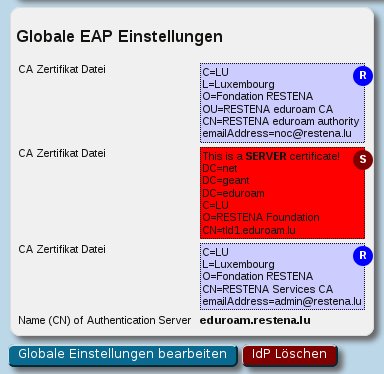

Further to this, I've now added code into trunk (i.e. a 1.1 version
coming up later) which will visualise that it's a bad idea to upload a
server cert at all, see attached screenshot.

Maybe that's not the best solution... instead uploading a server cert
could outright be rejected in the first place; I guess this needs to be
thought through a bit more thoroughly.

Stefan

 I will try that later.

> I did notice that the code is identical for the different apple devices but
> in my site the lion works and iphone ipad does not. The ipad download web
> page looks like all the others but the iphone one looks very different,
> which seems to suggest that there is a difference somewhere.
> We have a profile that works on an iphone I will get hold of it and send to
> the list.
>
> Thanks
>
> Judy
>
>
> -----Original Message-----
> From: Stefan Winter
> [mailto:stefan.winter AT restena.lu]
>
> Sent: 14 June 2013 12:47
> To:
> cat-users AT geant.net;
>  Mailcon2
> Subject: Re: [cat-users] iphone problem
>
> Hi,
>
>> I have taken a look at the actual profile. It has an error. Instead of
>> the certificate chain for the CAs it just contains the server
>> certificate (TCS one). This is not correct.
>>
>> Please supply the whole TCS certificate chain as either one PEM file
>> containing all, or several files with separate certificates and please
>> try again then.
>
> You are right with that; but I don't think it is the root cause of the
> problem. Judy mentioned in her first mail that she initially had a
> self-signed cert; which is its own CA root certificate and is a complete
> chain in itself.
>
>> With TTLS-PAP, the newest IOS does not ask the user to provide
>> credentials at install time, only at first connection time. This is
>> different from PEAP.
>
> I understood the problem to be that on this first connection, the "unknown
> cert" warning comes up, and it is *not possible* to proceed with the
> connection. (?)
>
> Still, if she was able to upload a *server* cert instead of a CA cert, and
> wasn't told by the UI that this is wrong, then this is something we have to
> tackle in CAT. That warning needs to make it to the admin's eye.
>
> Greetings,
>
> Stefan
>
>>
>> Tomasz
>>
>>
>>
>> W dniu 14.06.2013 13:04, Stefan Winter pisze:
>>> Hi,
>>>
>>>> We use PAP-TTLS as we authenticate against a unix password file.
>>>> Unfortunately PEAP did not work.
>>>> iPad and iPhone does not work and vast majority of students use have
>>>> these devices.
>>> Looking at the thread, I see that you reported OS X Lion+ to work
>>> without problems.
>>>
>>> That's "funny" because the OS X Lion download and iOS download are
>>> the identical file; they only have two different buttons on the
>>> download interface because people are looking for device classes
>>> usually, and a button with an abstract notion of "anythinig Apple"
>>> looked less intuitive than mentioning the exact device class.
>>>
>>> So if the OS X Lion+ installer works, I'm reasonably confident that
>>> the profile as generated by CAT is in good working order.
>>>
>>> Since Scott mentioned that their CloudPath installer has the same
>>> issue, I'm really tempted to think that this is an iOS bug - in that
>>> it can't do TTLS-PAP properly - much more than an eduroam CAT problem.
>>>
>>> Since you can't move away from TTLS-PAP, I'm sort of lost in things
>>> to suggest. There is one thing maybe: you could try to generate an
>>> iOS profile "by hand"; i.e. download Apple's "iPhone Configuration
>>> Utility", click together the settings as they apply to your IdP and
>>> see if the resulting profile works better with the iOS devices.
>>>
>>> I'm guessing it won't, and then it's clearly an iOS bug. If it does
>>> work better however, please send the profile over to me so I can
>>> inspect it for differences to what CAT generates.
>>>
>>> Greetings,
>>>
>>> Stefan Winter
>>>
>>>>
>>>> Regards
>>>> Judy Angel
>>>>
>>>>
>>>> Sent from my iPad
>>>>
>>>> On 13 Jun 2013, at 08:56 PM, Scott Armitage
>>>> <S.P.Armitage AT lboro.ac.uk>
>>>>  wrote:
>>>>
>>>>> On 13 Jun 2013, at 15:46, "Angel, Judy"
>>>>> <admyet4 AT herts.ac.uk>
>>>>>  wrote:
>>>>>
>>>>>> Hi
>>>>>> I am new to this system and think it is great. Thank you very much for
>>>>>> developing such a useful tool.
>>>>>> I have tested the download for w7, XP ,lion , linux and all work
>>>>>> fine. However the iphone app does not look as nice as the others and
>>>>>> More to the point down not work for me. It goes through the install
>>>>>> screen, I enter username and password but there is no connection.
>>>>>> I originally had a self certified certificate. I have now
>>>>>> installed the Janet Terena one which I can see as verified in the
>>>>>> iphone>general>profile But when I select the SSID eduroam the
>>>>>> certificate page with the gears is on the left, not verified in red in
>>>>>> the middle of the screen, accept on the right hand side but it is not
>>>>>> an active button, so can not be selected.
>>>>>> Have you come across such a problem? Any suggestions please.
>>>>>
>>>>> I think the problem is TTLS.  I noticed the same problem with our
>>>>> cloudpath profiles if the authentication type was set to EAP-TTLS.  I
>>>>> therefore had to switch PEAP.
>>>>> From memory this was discussed a while ago on another mailing list (but
>>>>> I can't remember).
>>>>>
>>>>> Try a PEAP configuration and see if you have the same problem.
>>>>>
>>>>> Regards
>>>>>
>>>>> Scott Armitage
>>>
>>
>
>
> --
