Hi All,

We have a problem when sending traffic using the polka tunnel, if someone can help us, that would be great.

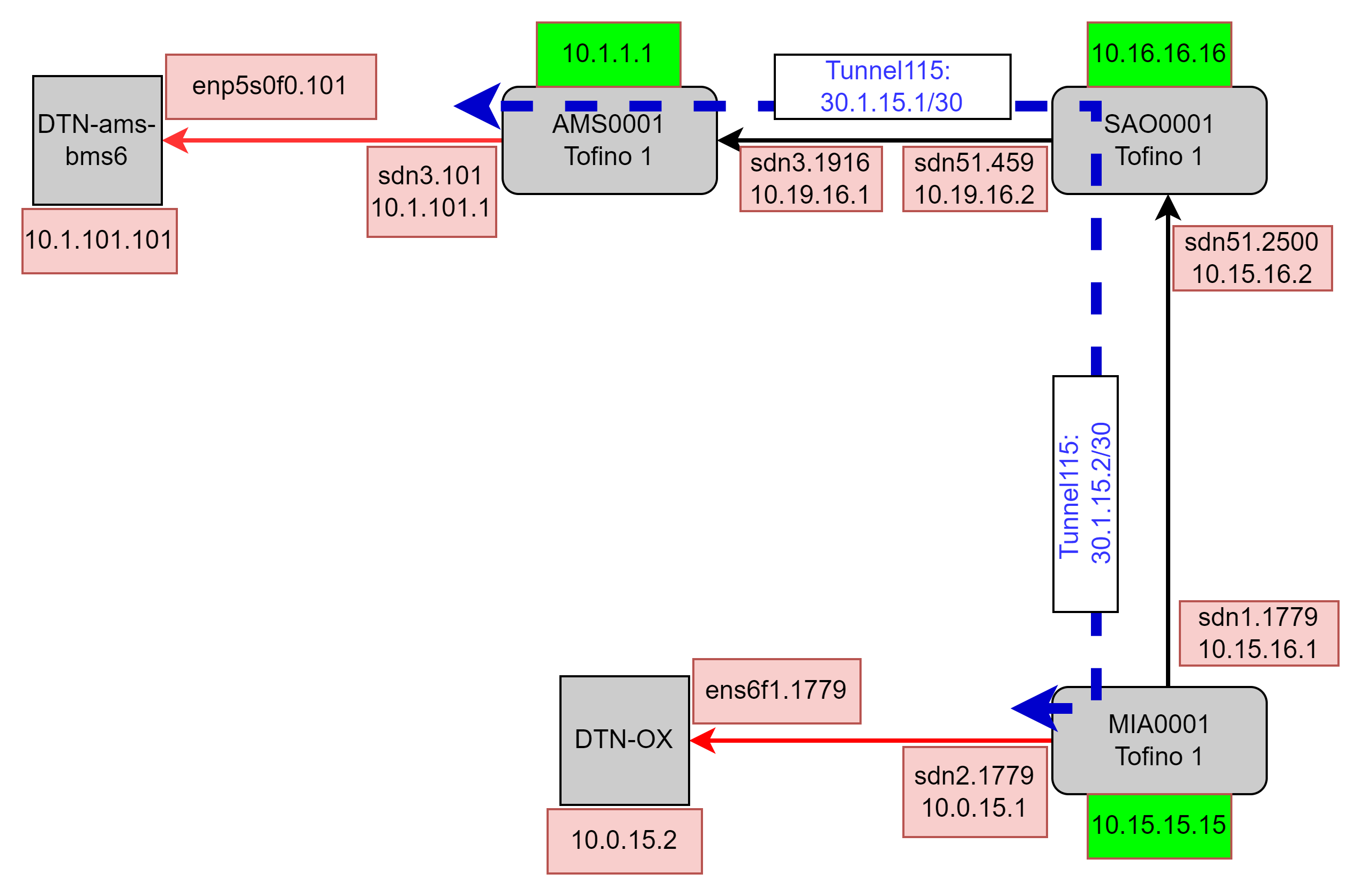

We are sending Traffic from the DTN-AMS-bm6(10.1.101.101) host via the polka tunnel (in blue), to DTN-OX(10.0.15.2), but we are facing the following issue:

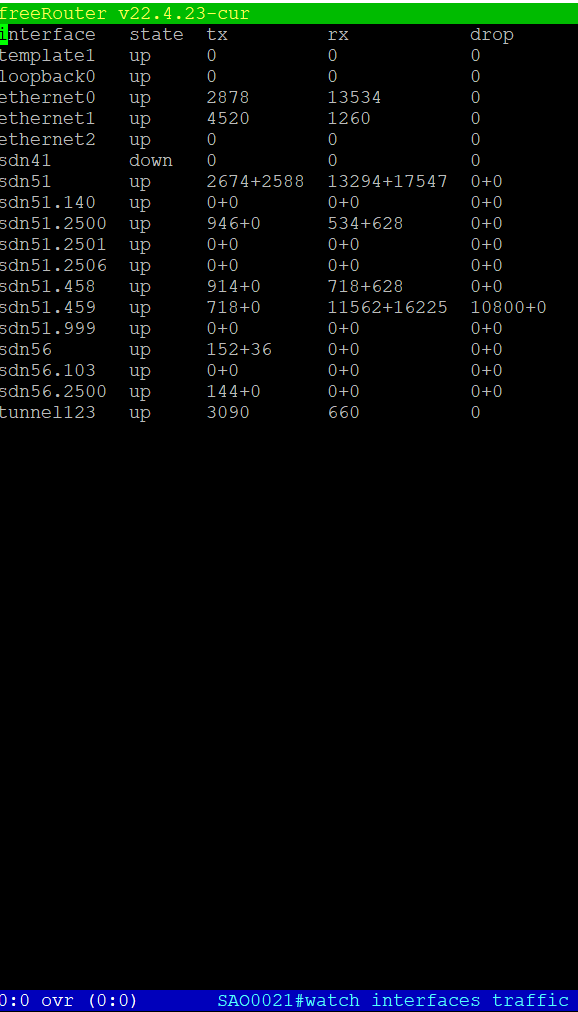

- As shown below in the figure the packets have been dropped at the switch sao0001 in the interface sdn51.459. The switch ams0001 forwards according to the traffic.

All the configurations are available in p4lab.
