Hi Csaba,

Thank you! It will be great to discuss with you and Frederic. Everson has
already started his 3-month internship at Caltech and he is helping to
configure their P4 testbed this week. Is it possible to schedule the VC for
the other week on September 27th?

In the meanwhile, I will report the preliminary results, but Everson can give
more detailed information. During the investigation with the Tofinos in the
RARE testbed (AMS&FRA edge-core + POZ&BUD core), when we use a PolKA node as
edge, it seems that the entries for encapsulating the traffic are not
installed in the tables of the fastpath. This may be the cause of the
performance degradation when we send traffic with iperf. Note that, in our
paper with ONDM, we were replaying packets that already contained the PolKA
header and no performance issue was detected, so we can infer that the
problem is in the edge function and not in the core.

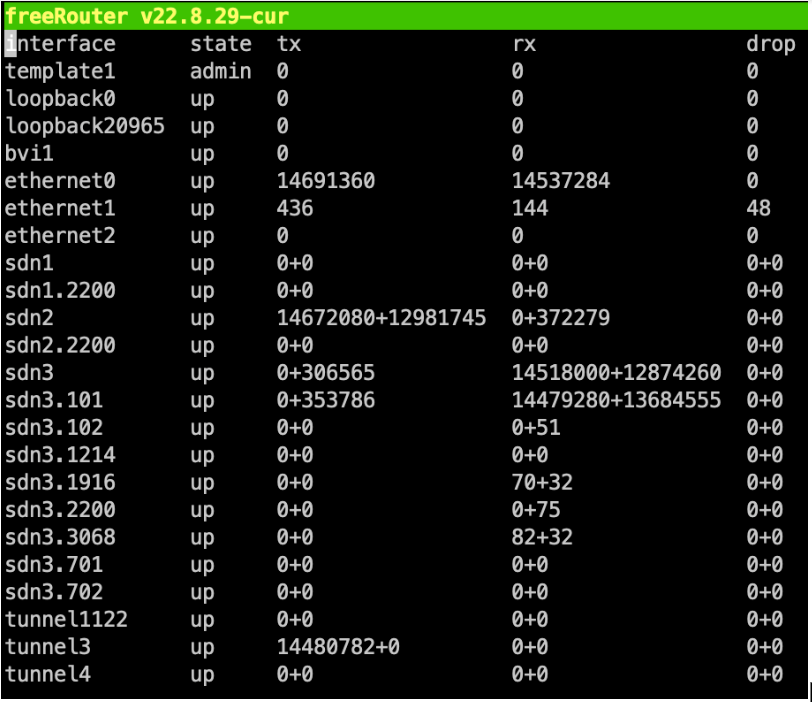

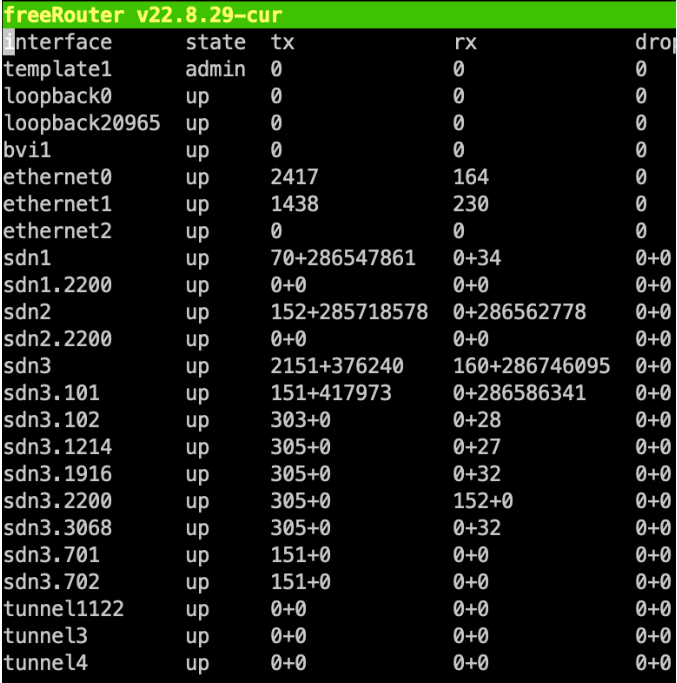

Moreover, we have seen a huge amount of traffic going through the eth0 when
the traffic goes through a PolKA tunnel with PBR. Please see attached
printscreens. Note that the issue does not happen in Segment Routing
configuration, only in PolKA. One difference is that, with PolKA, we needed
to configure the vrf forwarding, as you indicated in a previous email.
Configuration can be seen here:
wdv.rare.nmaas.eu/uploads/commits/master

We talked with Frederic and he suggested some tests in the RARE testbed:
1) Only PolKA (remove simultaneous SR configuration): AMS&FRA edge-core +
POZ&BUD core only
Result: No difference, same issues happen
2) Only PolKA: AMS&FRA edge only + POZ&BUD core only
Result: It is not possible to configure a PolKA node as edge only

It is possible that our configuration is not correct, so Frederic also
suggested to try to reproduce the issue in a virtual environment:
1)  each VM uses a P4 studio installation with bf_switchd to emulate the RARE
testbed
2)  each VM uses a DPDK installation with P4emu to emulate the RARE testbed
Everson is working on these tasks.

Best regards,
Cristina


________________________________________
De:  <> em
nome de mc36 <>
Enviado: quinta-feira, 15 de setembro de 2022 03:02
Para: ; Cristina Klippel Dominicini; Frederic LOUI
Cc: Cristina Klippel Dominicini; Everson Borges; Marcos Schwarz; rafaelsg;
Moises R. N. Ribeiro; Magnos Martinello; Domingos Paraiso
Assunto: Re: [rare-dev] Support with PolKA/SR-MPLS experiment

hi,
surely yess for the vc, will the next regular rare freertr session work for
you?
thanks,
cs


On 9/1/22 21:34, Cristina Klippel Dominicini wrote:
> Hi, Frederic and Csaba,
>
> I hope this email finds you well :-)
>
> Everson has been working in the PolKA/SR-MPLS tests in the RARE testbed.
> Following your last instructions, we are setting up the Tofino nodes at AMS
> and FRA as both PolKA (or
> SR-MPLS) core and edge nodes, and the DTNs generate traffic (topology file
> attached).
>
> However, we detected some inconsistencies in the results and have been
> facing some difficulties in debugging whether the problem is in our
> configuration (most probably) or in the
> freeRtr implementation of PolKA when edge and nodes are in the same node
> (our previous emulated tests were using separated edge/core). I can send a
> more detailed description about
> the debugging and, if possible, it would be very good if we could set up a
> VC with you to show what we have done. Is it possible please to use part of
> the slot of the freertr-dev
> meeting on September 6th?
>
> Everson has just arrived in Caltech to start a 3-month internship, with the
> goal of developing these PolKA/SRMPLS tests for the SuperComputing
> conference.
> @Everson, when you settle down, could you please share with us the backup
> of the config files that you are using at the RARE testbed?
>
> Thank you,
> Cristina
> ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
>
