RE: [[cat-users]] Eduroam CAT Tool Configuration

From: Venkat Reddy Banda <venkat.banda AT lsbm.ac.uk>
To: Stefan Winter <stefan.winter AT restena.lu>, "cat-users AT lists.geant.org" <cat-users AT lists.geant.org>
Subject: RE: [[cat-users]] Eduroam CAT Tool Configuration
Date: Mon, 13 Nov 2017 15:10:57 +0000
Accept-language: en-GB, en-US
Authentication-results: prod-mail.geant.net (amavisd-new); dkim=pass (1024-bit key) header.d=lsbm.onmicrosoft.com
Authentication-results: spf=none (sender IP is ) smtp.mailfrom=venkat.banda AT lsbm.ac.uk;
Spamdiagnosticmetadata: NSPM
Spamdiagnosticoutput: 1:99

Hi Stefan,

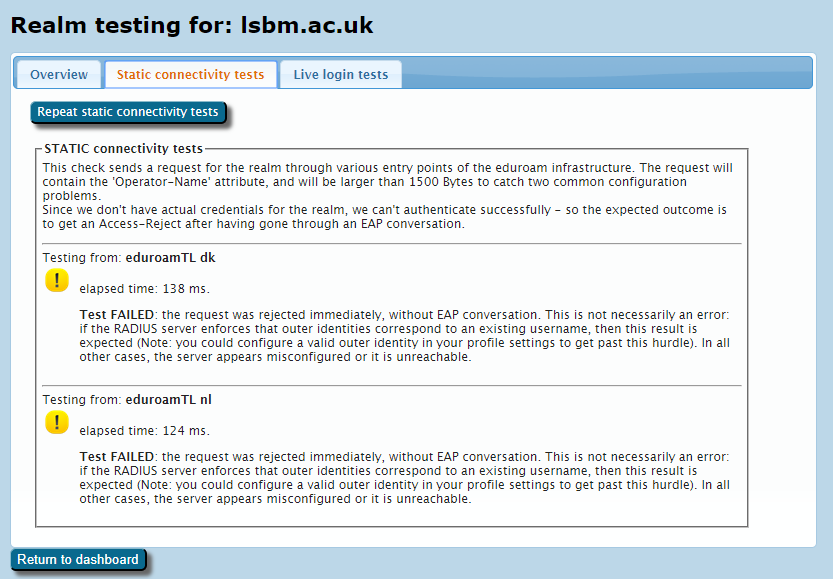

We are getting below errors in realm check.

Thank you.

Regards,

Venkat Reddy Banda

London School of Business and Management.

-----Original Message-----
From: Stefan Winter [mailto:stefan.winter AT restena.lu]
Sent: 13 November 2017 12:10
To: Venkat Reddy Banda <venkat.banda AT lsbm.ac.uk>; cat-users AT lists.geant.org
Subject: Re: [[cat-users]] Eduroam CAT Tool Configuration

Hello,

> Thanks for the reply.

> We are listed on https://cat.eduroam.org. Currently we are testing the tool.

> The question I have is : Which CA files I need to upload in to tool.

> Our Server certificate is from https://www.thawte.com/. I have uploaded CA certificates from this site. When it comes to authentication on the server its rejecting.

> I thought there is something in the tool I have misconfigured. Could you help us?

There are many CA certificate in Thwate's portfolio.

You only need to upload

a) the (one) root CA certificate that issued your server cert

b) optionally, but recommended, all the intermediate CAs that make up the certification path from said root CA to your server cert.

If you'd post the "Subject" part of your server cert (or send the entire thing, please WITHOUT the private key of course) then it's fairly simple to look up which CAs you need.

Even though I'm surprised you weren't given those certificates on the same download page that gave you the server cert itself - all these belong together.

Greetings,

Stefan Winter

Stefan WINTER

Ingenieur de Recherche

Fondation RESTENA - Réseau Téléinformatique de l'Education Nationale et de la Recherche 2, avenue de l'Université

L-4365 Esch-sur-Alzette

Tel: +352 424409 1

Fax: +352 422473

PGP key updated to 4096 Bit RSA - I will encrypt all mails if the recipient's key is known to me

http://pgp.mit.edu:11371/pks/lookup?op=get&search=0xC0DE6A358A39DC66
