Hi Xavier,



I get my images from: https://sonic-build.azurewebsites.net/ui/sonic/pipelines:

1. Choose a branch from the derised platform. Ex: 202205 for barefoot, and click on build history

2. Choose a Build that resulted in "succeeded". Ex: 154140 and click on Artifacts (you can see the commit that this build relates to, in case you want to build a custom SONiC version)

3. Look for target/sonic-barefoot.bin, and either copy the link to the specific choosen version [1] or to the latest version [2]



Some SONiC images are not stable, even tagged ones. So there is some trial and error to try to find a working version.

The good thing is that after the inittial install, it's very easy to install a new image: sudo sonic-installer install "URL".

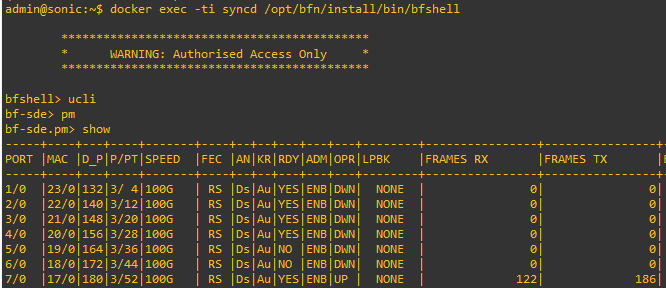

I can confirm that build 154140 recongnizes my SFPs correctly:



[1] https://sonic-build.azurewebsites.net/api/sonic/artifacts?branchName=202205&platform=barefoot&buildId=154140&target=target%2Fsonic-barefoot.bin

[2] https://sonic-build.azurewebsites.net/api/sonic/artifacts?branchName=202205&platform=barefoot&target=target%2Fsonic-barefoot.bin



Regards,



Marcos Schwarz



-----Mensagem original-----

De: <> Em nome de Xavier Jeannin

Enviada em: quarta-feira, 28 de setembro de 2022 12:39

Para:

Assunto: [RARE-users] Wedge 100BF-32 and SONIC



Hello



I know that my question is not in the right list.



In our study to implement L2 PPN based on RARE/Freertr, it was asked me to have an alternative if finally RARE/Freertr would not make the job (I do not think we will never do thi s but I have to show this alternative is doa able).



I have to use an image found here https://sonic.software/ as on the web page "Supported Devices and Platforms" from sonic GitHub, it is impossible to fetch the image for the wedge. After the SONIC installation, SONIC does not detect any SFP within the  Wedge.



I suspect, I do not use the right image.

Does anyone already install SONIC on this type of machine and could give an advice to install it on the Wedge?



Regards

Xavier



admin@sonic:~$ show version



SONiC Software Version: SONiC.202205.153265-dirty-20220926.155828

Distribution: Debian 11.5

Kernel: 5.10.0-12-2-amd64

Build commit: 99f9c53d1

Build date: Mon Sep 26 16:03:45 UTC 2022 Built by: AzDevOps@sonic-build-workers-0025I8



Platform: x86_64-accton_wedge100bf_32x-r0

HwSKU: montara

ASIC: barefoot

ASIC Count: 1

Serial Number: AJ33026219

Model Number: NP3ZZ7632023A

Hardware Revision: N/A

Uptime: 15:37:54 up  2:50,  1 user,  load average: 0.15, 0.33, 0.53

Date: Wed 28 Sep 2022 15:37:54



Docker images:

REPOSITORY TAG                                   IMAGE ID       SIZE docker-syncd-bfn 202205.153265-dirty-20220926.155828   0f369c8024a5   2.5GB docker-syncd-bfn latest                                0f369c8024a5   2.5GB docker-macsec latest                                03a59be09ced   461MB docker-dhcp-relay latest                                b474d743bea1   452MB docker-sonic-telemetry 202205.153265-dirty-20220926.155828

6d02c958d64e   523MB

docker-sonic-telemetry latest 6d02c958d64e   523MB docker-teamd 202205.153265-dirty-20220926.155828   22b350234b32   459MB docker-teamd latest                                22b350234b32   459MB docker-snmp 202205.153265-dirty-20220926.155828   c6c451980df1   488MB docker-snmp latest                                c6c451980df1   488MB docker-router-advertiser 202205.153265-dirty-20220926.155828

49b27905c10b   443MB

docker-router-advertiser latest 49b27905c10b   443MB docker-platform-monitor 202205.153265-dirty-20220926.155828

bd15576fe74e   565MB

docker-platform-monitor latest bd15576fe74e   565MB docker-orchagent 202205.153265-dirty-20220926.155828   bbec60d58f01   477MB docker-orchagent latest                                bbec60d58f01   477MB docker-mux 202205.153265-dirty-20220926.155828   c6d4664aa3f0   491MB docker-mux latest                                c6d4664aa3f0   491MB docker-lldp 202205.153265-dirty-20220926.155828   60c8324f2a63   485MB docker-lldp latest                                60c8324f2a63   485MB docker-fpm-frr 202205.153265-dirty-20220926.155828   9f3939482635   488MB docker-fpm-frr latest                                9f3939482635   488MB docker-database 202205.153265-dirty-20220926.155828   de2fc45c59bb   443MB docker-database latest                                de2fc45c59bb   443MB docker-sonic-mgmt-framework 202205.153265-dirty-20220926.155828

5bb125d918e8   557MB

docker-sonic-mgmt-framework latest

5bb125d918e8   557MB

docker-sflow 202205.153265-dirty-20220926.155828   3933367b6899   428MB docker-sflow latest                                3933367b6899   428MB docker-nat 202205.153265-dirty-20220926.155828   81e885c2de1f   430MB docker-nat latest                                81e885c2de1f   430MB



--



Xavier JEANNIN

Network Dpt.

GN4-3 Network technology evolution (WP6 T1) task leader Tél. : +33 1 5394 2042 Mob. : +33 6 3017 0963 www.renater.fr
