hi,
jordi "accidentally" "forgot" an iperf on his server yesterday evening
so we did the 162tb in the past 8 hours... today plan is to melt the
tofino a bit by passing traffic back-and-forth between it's ports and
vrfs to reach and maintain the 1tbps forwarding rate for a while...
stay tuned, hopefully we'll some (good) news on the topic soon! :)
regards,
cs



the idea:
namespace1----[dac]---port1(vrf1)----<routing>-----port2(vrf1)-----[dac]------port3(vrf2)----<routing>-----port4(vrf2)----[dac]-----port5(vrf3)----<routing>-----port6(vrf3)--------namespace2



the setting in the attachment.... thx jordi again!




rare#show interfaces hwtraffic | exclude 0\s+0\s+0
interface  state  tx          rx          drop
sdn5       up     0           5450777393  0
sdn6       up     5489159734  0           0

rare#
rare#show interfaces hwsummary | exclude 0\s+0\s+0
interface  state  tx               rx               drop
sdn5       up     0                162672737494416  0
sdn6       up     163852570013292  235344           0

rare#

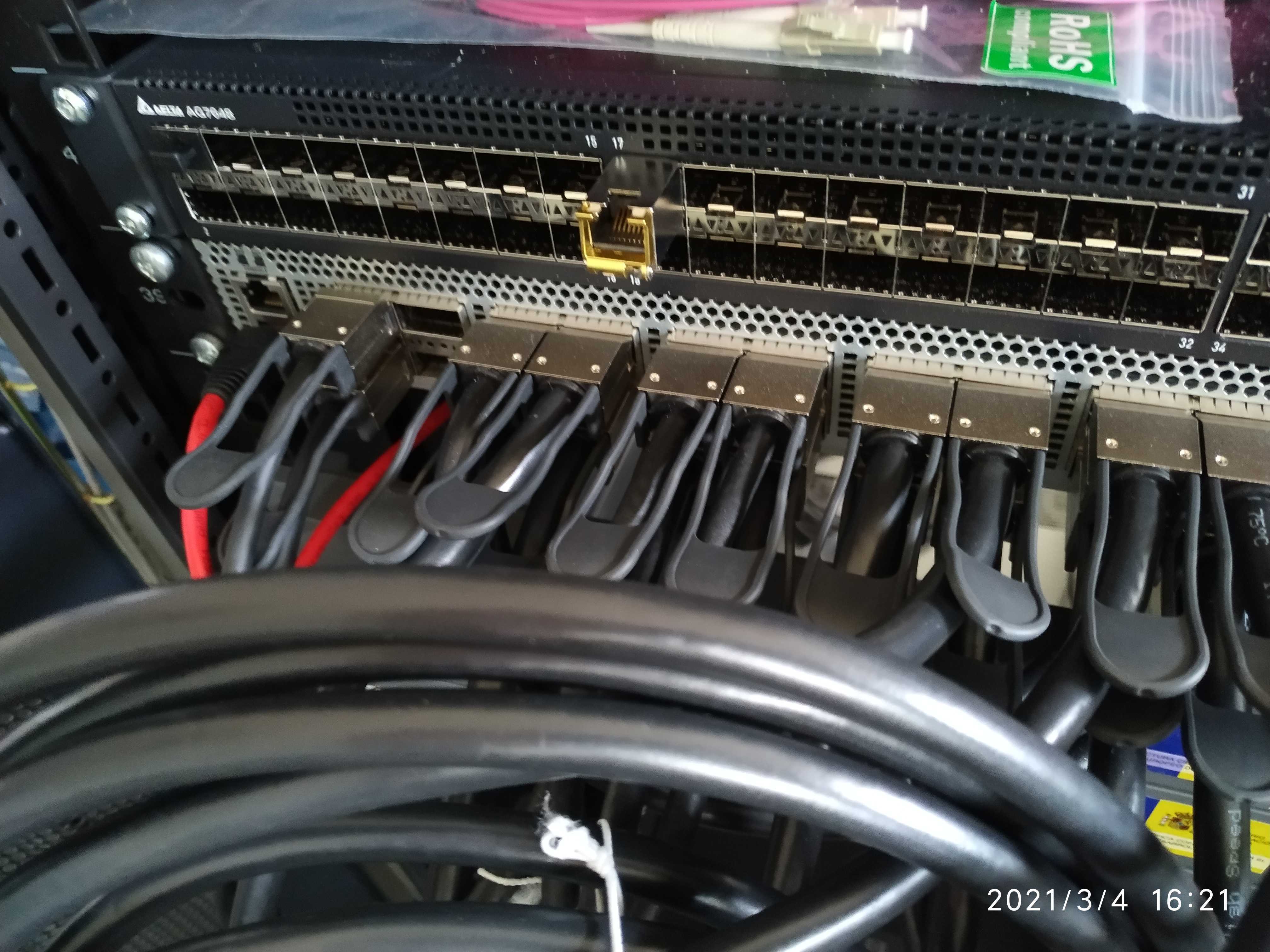

Attachment: img_20210304_162036.jpg
Description: JPEG image
