hi,

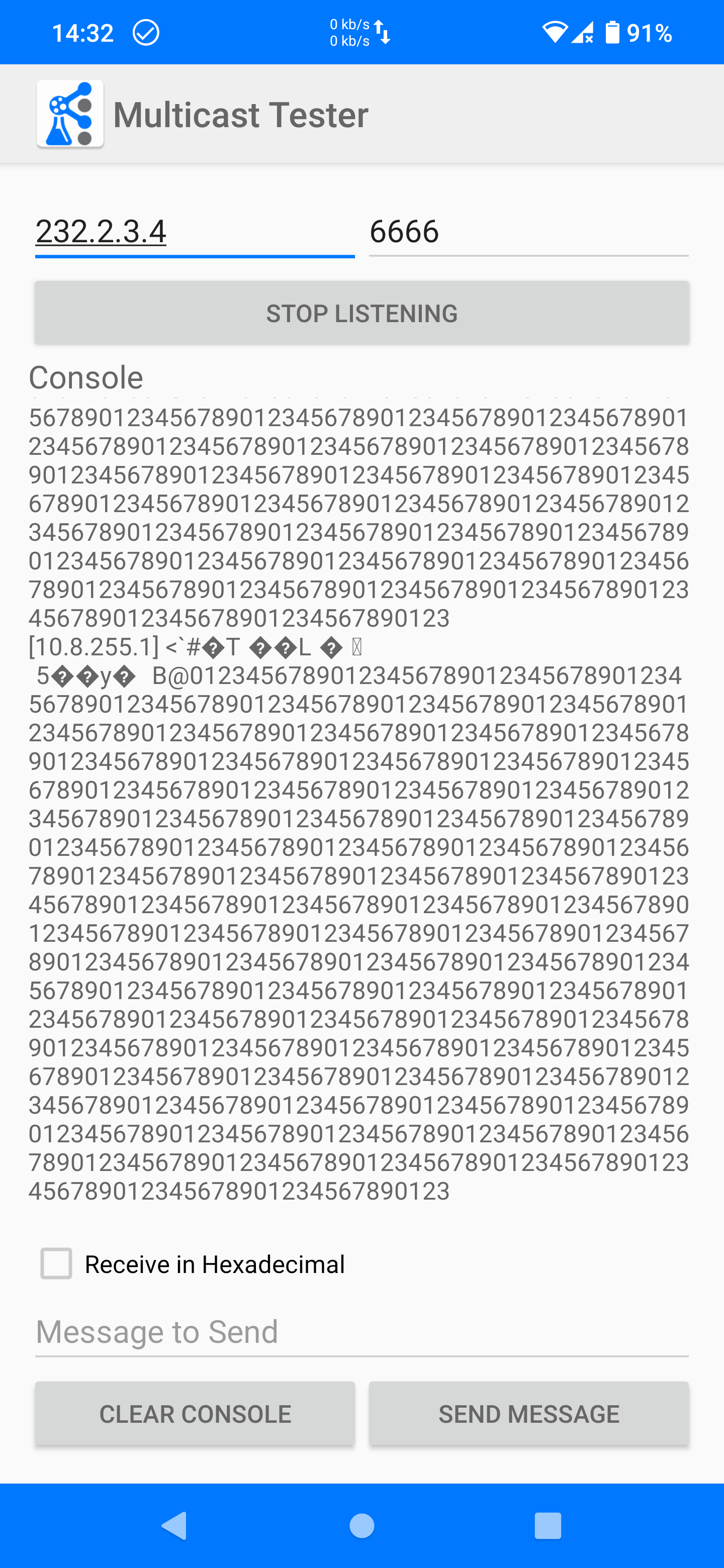

please find attached the screenshot of my android10 with mcast tester app
gotting the packets of my notebook.
the phone joined with igmp itself! my notebook also notified by igmp, in
between them, the signaling info was
sent through in pim encapped in bier as per the draft, sent through my bier
core with the tofino in the middle...
i have 2 streams on my notebook, one for the phone testing, and the other is
a constant stream to my amplifiers
in 2 rooms.... so android also have built in support, which is good to know!
:)
regards,
cs




wifi#show ipv4 mroute inet
source      group      interface  upstream   targets  bytes
10.8.255.1  232.2.3.4  sdn1       10.1.1.49  ifc=1    0+383454

wifi#



mc36@noti:~$ iperf -u -c232.2.3.4 -p6666 -i1 -t999 -T 123 -l 1333 -b 1m
------------------------------------------------------------
Client connecting to 232.2.3.4, UDP port 6666
UDP buffer size:  208 KByte (default)
------------------------------------------------------------
[  3] local 10.8.255.1 port 47881 connected with 232.2.3.4 port 6666
^C[ ID] Interval       Transfer     Bandwidth
[  3] 0.0000-0.6293 sec  78.2 KBytes  1.02 Mbits/sec
[  3] Sent 62 datagrams
mc36@noti:~$



noti#show ipv4 mroute inet
source      group      interface  upstream    targets                bytes
10.8.255.1  232.2.3.2  sdn999     10.8.255.1  ifc=0 bierp=2 bierf=1
0+3277051375
10.8.255.1  232.2.3.4  sdn999     10.8.255.1  ifc=0 bierp=1 bierf=1  0+525722

noti#show ipv4 mroute inet 10.8.255.1  232.2.3.4
category          value
source            10.8.255.1
group             232.2.3.4
rd                0:0
iface             sdn999
upstream          10.8.255.1
local             false
configG           false
configI           false
label             null
bier peer         10.1.11.1,25,10.1.1.234,sdn1.158,942508
bier fwd          10.1.1.234,sdn1.158,942508
counter           tx=0(0) rx=0(0) drp=0(0)
hardware counter  tx=525722(386) rx=0(0) drp=0(0)

noti#show ipv4 mroute inet 10.8.255.1  232.2.3.2
category          value
source            10.8.255.1
group             232.2.3.2
rd                0:0
iface             sdn999
upstream          10.8.255.1
local             false
configG           false
configI           false
label             null
bier peer         10.10.10.8,80,10.1.1.234,sdn1.158,942508
bier peer         10.10.10.199,199,10.1.1.234,sdn1.158,942508
bier fwd          10.1.1.234,sdn1.158,942508
counter           tx=0(0) rx=0(0) drp=0(0)
hardware counter  tx=3277773883(2390544) rx=0(0) drp=0(0)

noti#

Attachment: Screenshot_20210210-143215_Multicast_Tester.png
Description: PNG image
