Hi,



We are currently in the process of configuring the CAT Tool for our institution. We have configured the profile using PEAP-MSCHAPv2 and added the root & Intermediate Certificates for our Radius Server. However, when the profile is installed on the mobile device the Wifi will still not connect without manually setting the CA Certificate to (Unspecified), see before and after screenshot. Is there any way for the tool to set the certificate to (unspecified)? Or is there a way we can get our existing certificate to work with this tool?

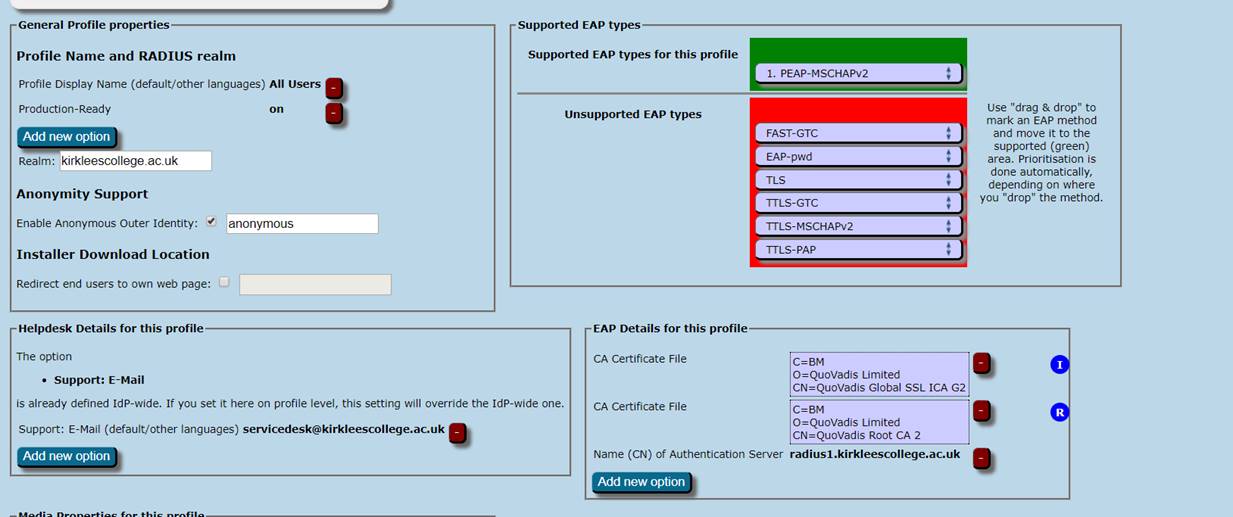

Here is the profile configuration for our institution.







Regards



	Lewis Couldwell Network Engineer
	T: 7300 E: lcouldwell AT kirkleescollege.ac.uk
	Huddersfield Centre, Waterfront Quarter, Manchester Rd, Huddersfield, HD1 3LD
	www.kirkleescollege.ac.uk





This email and any attachments are confidential and should not be used by anyone who is not the original intended recipient. If you receive this in error, please contact the sender and delete the material from your computer. You are not authorised to, and must not, read, copy, distribute, use or retain this message or any part of it. Kirklees College cannot accept liability for any statements made which are clearly the sender's own and not expressly made on behalf of Kirklees College or one of its agents.

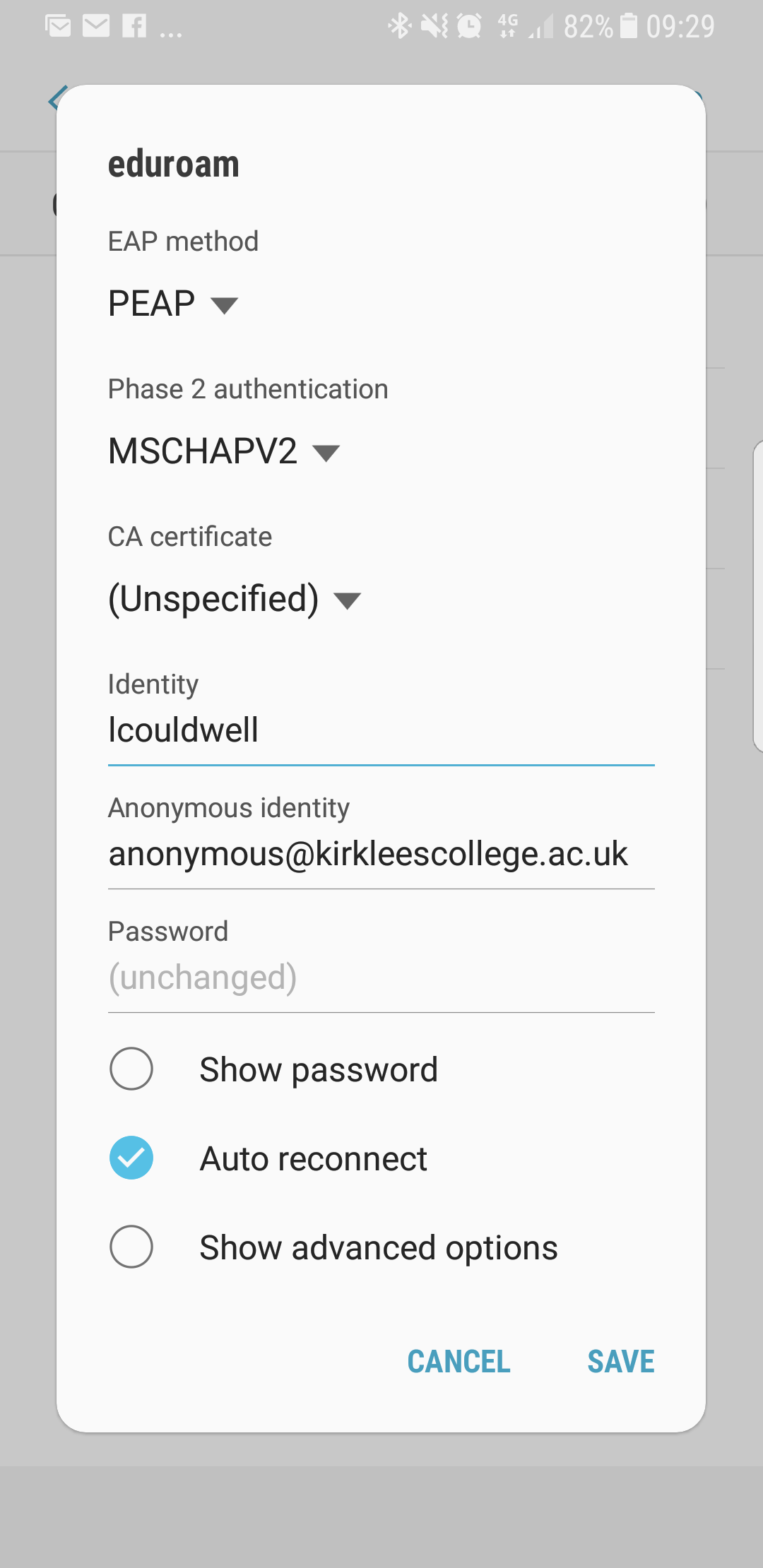

Attachment: Before.png
Description: Before.png

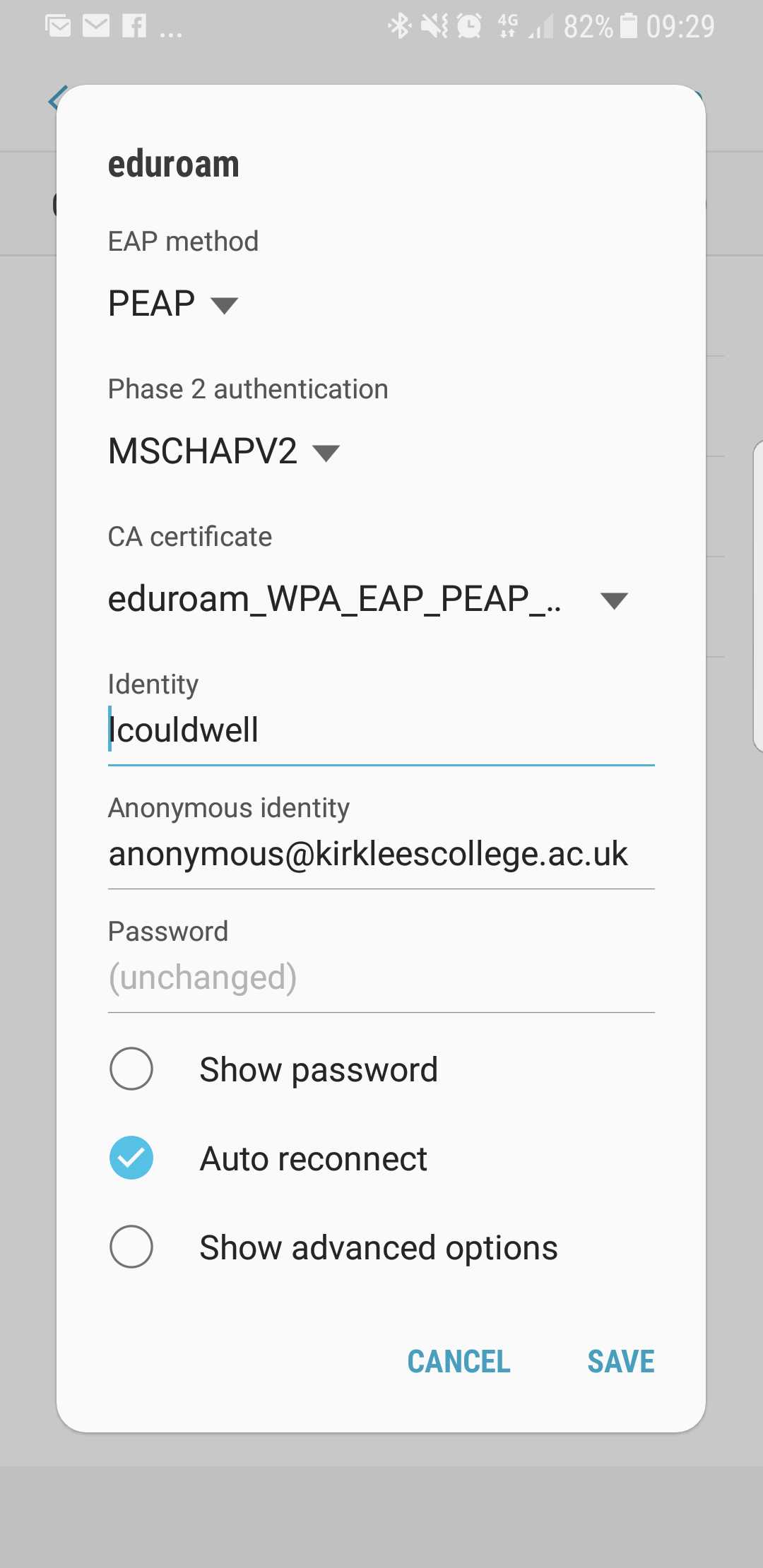

Attachment: After.png
Description: After.png
