RE: [[cat-users]] Trooble using Eduroam Installer, help needed

From: Sverrir Davíðsson <sverrir AT thekking.is>
To: Stefan Winter <stefan.winter AT restena.lu>, eduroam CAT Feedback <cat-users AT lists.geant.org>
Subject: RE: [[cat-users]] Trooble using Eduroam Installer, help needed
Date: Mon, 30 Nov 2015 14:44:52 +0000
Accept-language: is-IS, en-US

Yes, I was getting buffeld.

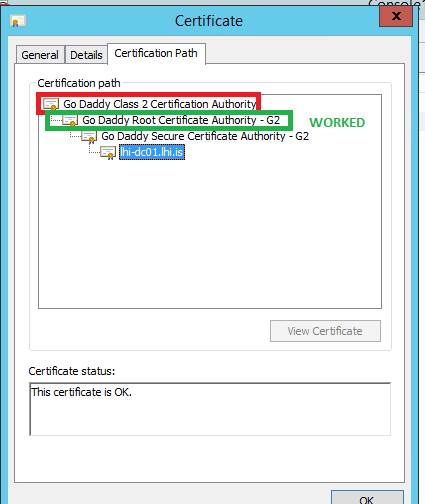

Well, it seams that the Root it self was not working, as soon as I imported the G2 intermedia Root SSL, it started to work.

See attachement.

All is well now J

Best regards

Sverrir Davíðsson

-----Original Message-----
From: Stefan Winter [mailto:stefan.winter AT restena.lu]
Sent: mánudagur, 30. nóvember 2015 14:00
To: Sverrir Davíðsson <sverrir AT thekking.is>; eduroam CAT Feedback <cat-users AT lists.geant.org>
Subject: Re: Trooble using Eduroam Installer, help needed

Hi,

ugh. Now this *is* turning into a nicely debug-worthy problem.

Indeed, I can reproduce that CAT thinks the chain is intact. While it's not.

I am still reasonably sure you should exchange the G1 root with the correct G2.

What I'm puzzled about is only why CAT did not tell you about this. I have just run an almost identical check on my command-line, and it rejects the wrong root as it should.

I need to investigate this a bit more...

Greetings,

Stefan

Am 30.11.2015 um 14:29 schrieb Sverrir Davíðsson:

> Hi Stefan

> That is the problem, all the realm checks are green !

> DNS Checks

> Realm is STATIC with no DNS errors encountered.

> Congratulations!

> Testing from: *eduroamTL dk*

> https://cat.eduroam.org/resources/images/icons/Quetto/check-icon.png

> *Connected to lhi-dc01.lhi.is.*

> elapsed time: 1579 ms.

> *Test successful*: a bidirectional RADIUS conversation with multiple

> round-trips was carried out, and ended in an Access-Reject as planned.

> *Subject:*

> /CN=lhi-dc01.lhi.is,OU=Domain Control Validated/

> *Issuer:***

> /CN=Go Daddy Secure Certificate Authority -

> G2,OU=http://certs.godaddy.com/repository/,O=GoDaddy.com,

> Inc.,L=Scottsdale,ST=Arizona,C=US/

> *Valid from:***

> /Wednesday, 11-Nov-2015 15:56:40 GMT/

> *Valid to:***

> /Sunday, 11-Nov-2018 15:56:40 GMT/

> *Serial number:***

> /6576733775903857949 (0x5B4540862F101D1D)/

> *SHA1 fingerprint:***

> /143b37fbbcb865a5410ce7c0b27eaa7b9dc95ca7/

> *Extensions***

> */basicConstraints: /*/CA:FALSE

> *extendedKeyUsage: *TLS Web Server Authentication, TLS Web Client

> Authentication

> *keyUsage: *Digital Signature, Key Encipherment

> *crlDistributionPoints: *Full Name:

> URI:http://crl.godaddy.com/gdig2s1-152.crl

> *certificatePolicies: *Policy: 2.16.840.1.114413.1.7.23.1 CPS:

> http://certificates.godaddy.com/repository/

> *authorityInfoAccess: *OCSP - URI:http://ocsp.godaddy.com/ CA Issuers

> - URI:http://certificates.godaddy.com/repository/gdig2.crt

> *authorityKeyIdentifier:

> *keyid:40:C2:BD:27:8E:CC:34:83:30:A2:33:D7:FB:6C:B3:F0:B4:2C:80:CE

> *subjectAltName: *DNS:lhi-dc01.lhi.is, DNS:www.lhi-dc01.lhi.is

> *subjectKeyIdentifier:

> *32:AC:33:B8:C5:FF:AE:44:36:24:5F:48:51:A7:41:8B:A4:B5:F7:0D/

> */show server certificate details»/*

> ----------------------------------------------------------------------

> --

> Testing from: *eduroamTL nl*

> https://cat.eduroam.org/resources/images/icons/Quetto/check-icon.png

> *Connected to lhi-dc01.lhi.is.*

> elapsed time: 1895 ms.

> *Test successful*: a bidirectional RADIUS conversation with multiple

> round-trips was carried out, and ended in an Access-Reject as planned.

> *Subject:*

> /CN=lhi-dc01.lhi.is,OU=Domain Control Validated/

> *Issuer:***

> /CN=Go Daddy Secure Certificate Authority -

> G2,OU=http://certs.godaddy.com/repository/,O=GoDaddy.com,

> Inc.,L=Scottsdale,ST=Arizona,C=US/

> *Valid from:***

> /Wednesday, 11-Nov-2015 15:56:40 GMT/

> *Valid to:***

> /Sunday, 11-Nov-2018 15:56:40 GMT/

> *Serial number:***

> /6576733775903857949 (0x5B4540862F101D1D)/

> *SHA1 fingerprint:***

> /143b37fbbcb865a5410ce7c0b27eaa7b9dc95ca7/

> *Extensions***

> */basicConstraints: /*/CA:FALSE

> *extendedKeyUsage: *TLS Web Server Authentication, TLS Web Client

> Authentication

> *keyUsage: *Digital Signature, Key Encipherment

> *crlDistributionPoints: *Full Name:

> URI:http://crl.godaddy.com/gdig2s1-152.crl

> *certificatePolicies: *Policy: 2.16.840.1.114413.1.7.23.1 CPS:

> http://certificates.godaddy.com/repository/

> *authorityInfoAccess: *OCSP - URI:http://ocsp.godaddy.com/ CA Issuers

> - URI:http://certificates.godaddy.com/repository/gdig2.crt

> *authorityKeyIdentifier:

> *keyid:40:C2:BD:27:8E:CC:34:83:30:A2:33:D7:FB:6C:B3:F0:B4:2C:80:CE

> *subjectAltName: *DNS:lhi-dc01.lhi.is, DNS:www.lhi-dc01.lhi.is

> *subjectKeyIdentifier:

> *32:AC:33:B8:C5:FF:AE:44:36:24:5F:48:51:A7:41:8B:A4:B5:F7:0D/

> */show server certificate details»/*

> Testing from: eduroamTL dk

> PEAP-MSCHAPv2 – elapsed time: 812 ms.

> Testing from: eduroamTL nl

> PEAP-MSCHAPv2 – elapsed time: 924 ms.

> Every check on the cat. Eduroam.org has been green, my only problem

> seems to be the installer, can´t get it to work.

> I will take a better look, at the Root CA in the profile.

> Another thing I notice was that the field: “Name of authentication

> Server” has to be in lower case. I was getting a server name mismatch

> if I used uppercase in the name. (Fixed)

> Best regards

> Sverrir Davíðsson

> -----Original Message-----

> From: Stefan Winter [mailto:stefan.winter AT restena.lu]

> Sent: mánudagur, 30. nóvember 2015 13:15

> To: Sverrir Davíðsson <sverrir AT thekking.is>; eduroam CAT Feedback

> <cat-users AT lists.geant.org>

> Subject: Re: Trooble using Eduroam Installer, help needed

> Hi,

> now I missed my main point. :-/

> I spent some amount of time debugging this for you. I like debugging

> difficult cases, so that's not usually a problem.

> This one however has been turned into automatic check code a long time

> ago. There is a button "realm check" in CAT, and it should yield in

> bright red "X" button style the error that the configured CA does not

> match the server certificate during the actual authentication.

> I'd appreciate if folks could actually use the on-board debugging

> facilities. My bad probably, next time I will bounce problem reports

> with a "have you tried the Check Realm feature" immediately.

> Greetings,

> Stefan Winter

> Am 30.11.2015 um 13:35 schrieb Sverrir Davíðsson:

>> Ho Stefan

>> Sorry, I must have pressed send to quickly :)

>> Here are the logs, see attachments

>> Best regards

>> Sverrir Davíðsson

>> -----Original Message-----

>> From: Stefan Winter [mailto:stefan.winter AT restena.lu]

>> Sent: mánudagur, 30. nóvember 2015 11:48

>> To: Sverrir Davíðsson <sverrir AT thekking.is>; eduroam CAT Feedback

>> <cat-users AT lists.geant.org>

>> Subject: Re: Trooble using Eduroam Installer, help needed

>> Hello,

>>> Hi my name is Sverrir,

>>> I have been setting up a IdP for the Iceland Academy of the Arts.

>> thanks for contacting the list and not me directly.

>>> Radius Authentication works, but we are unable to us the Installer.

>>>

>>> I´m having trouble getting the Installer (EXE) setup to work against

>>> our SSID.

>>>

>>> We are able to connect directly to "eduroam" SSID without the use of

>>> the Installer, user gets authenticated and connected no problem.

>> "Connected" is easy. Getting connected *securely*, i.e. with all security checks client-side enabled, is harder.

>> The installers set all the security parameters. Only once those checks are actually enabled, subtle misconfigurations on the server side will have consequences.

>>> But when we try to use the Installer, there is something of with the

>>> creation of the wifi Profile, users will not get connected and my

>>> RADIUS complains about user mismatch.

>>>

>>> I see that the User Security ID is NULL when using the Installer.

>> I have no idea what the "User Security ID" is supposed to be?

>>> I have tested this on both windows 10 and 8,1.

>>>

>>> I see at the top of the page that CAT vas recently updraded to

>>> versions 1.1.1, could that be the root of my problems?

>> No. We should really remove the MOTD. This version is up since over a month now.

>>> All attach some more info regarding our Wifi troubles.

>>>

>>> Radius: Windows Server 2012R2

>>>

>>> Microsoft: Protected EAP (PEAP)

>>>

>>> Secure Password (EAP-MSCHAP v2)

>>>

>>> Cert: Public SSL from GoDaddy

>>>

>>> AP: Cisco

>> This setup is as standard as can be and as such is probably not the source of any problem.

>>> Logs from Radius and Client when Connecting to eduroam

>>>

>>> Connecting directly to eduroam (Without Installer), See attachement :

>>> Eduroam-NonInstaller.txt

>>>

>>> Connecting to eduroam (With Installer), See attachement :

>>> Eduroam-Installer.txt

>> If you'd attach the log files, we could actually look at them ;-)

>> Greetings,

>> Stefan Winter

>>>

>>> Best Regards

>>>

>>> Sverrir Davíðsson

>>>

>>> --------------------------------------------------------------------

>>> -

>>> -- Skilmálar / Disclaimer <https://www.thekking.is/is/skilmalar>

>> --

>> Stefan WINTER

>> Ingenieur de Recherche

>> Fondation RESTENA - Réseau Téléinformatique de l'Education Nationale

>> et de la Recherche 2, avenue de l'Université

>> L-4365 Esch-sur-Alzette

>> Tel: +352 424409 1

>> Fax: +352 422473

>> PGP key updated to 4096 Bit RSA - I will encrypt all mails if the

>> recipient's key is known to me

>> http://pgp.mit.edu:11371/pks/lookup?op=get&search=0xC0DE6A358A39DC66

> --

> Stefan WINTER

> Ingenieur de Recherche

> Fondation RESTENA - Réseau Téléinformatique de l'Education Nationale

> et de la Recherche 2, avenue de l'Université

> L-4365 Esch-sur-Alzette

> Tel: +352 424409 1

> Fax: +352 422473

> PGP key updated to 4096 Bit RSA - I will encrypt all mails if the

> recipient's key is known to me

> http://pgp.mit.edu:11371/pks/lookup?op=get&search=0xC0DE6A358A39DC66

Stefan WINTER

Ingenieur de Recherche

Fondation RESTENA - Réseau Téléinformatique de l'Education Nationale et de la Recherche 2, avenue de l'Université

L-4365 Esch-sur-Alzette

Tel: +352 424409 1

Fax: +352 422473

PGP key updated to 4096 Bit RSA - I will encrypt all mails if the recipient's key is known to me

http://pgp.mit.edu:11371/pks/lookup?op=get&search=0xC0DE6A358A39DC66
