hi,
On 2/15/23 16:58, wrote:
Automated svg generation is in my to do list :)
so if you run "java -jar rtr.jar test tester .... mdfile" on the source tree
then it'll generate
automatically everything (and some more, and ask if you miss something) what
i'm just attached...

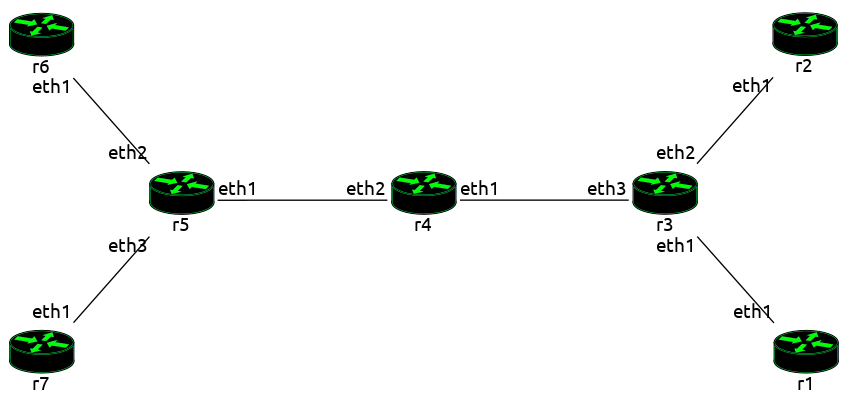

look at that inlined net.png, isn't it beautiful, especially without any
effort? :)
br,
cs
Attachment:
topo.tst.dot
Description: application/msword-template
# Example: ebgp in chain ## **Topology diagram**  ## **Configuration** **r1:** ``` hostname r1 buggy ! logging file debug ./slot0r1-log.run ! vrf definition tester exit ! vrf definition v1 rd 1:1 exit ! interface loopback0 vrf forwarding v1 ipv4 address 2.2.2.1 255.255.255.255 ipv6 address 4321::1 ffff:ffff:ffff:ffff:ffff:ffff:ffff:ffff no shutdown no log-link-change exit ! interface ethernet1 lldp enable vrf forwarding v1 ipv4 address 5.5.5.2 255.255.255.252 no shutdown no log-link-change exit ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ipv4 route v1 0.0.0.0 0.0.0.0 5.5.5.1 ! ! ! ! ! ! ! ! ! ! ! ! server telnet tester security protocol telnet exec colorize header exec monitor no exec authorization no login authentication vrf tester exit ! ! end ``` **r2:** ``` hostname r2 buggy ! logging file debug ./slot0r2-log.run ! vrf definition tester exit ! vrf definition v1 rd 1:1 exit ! interface loopback0 vrf forwarding v1 ipv4 address 2.2.2.2 255.255.255.255 ipv6 address 4321::2 ffff:ffff:ffff:ffff:ffff:ffff:ffff:ffff no shutdown no log-link-change exit ! interface ethernet1 lldp enable vrf forwarding v1 ipv4 address 5.5.5.6 255.255.255.252 no shutdown no log-link-change exit ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ipv4 route v1 0.0.0.0 0.0.0.0 5.5.5.5 ! ! ! ! ! ! ! ! ! ! ! ! server telnet tester security protocol telnet exec colorize header exec monitor no exec authorization no login authentication vrf tester exit ! ! end ``` **r3:** ``` hostname r3 buggy ! logging file debug ./slot0r3-log.run ! route-policy ibgp-in sequence 10 if rd 1:2 sequence 20 set nexthop 1.1.111.2 sequence 30 set vrf v2 ipv4 sequence 40 pass sequence 50 enif sequence 60 if rd 1:3 sequence 70 set nexthop 1.1.222.2 sequence 80 set vrf v3 ipv4 sequence 90 pass sequence 100 enif sequence 110 drop exit ! vrf definition tester exit ! vrf definition v1 rd 1:1 exit ! vrf definition v2 rd 1:2 rt4import 1:2 rt4export 1:2 rt6import 1:2 rt6export 1:2 clr4import 2 clr4export 2 clr6import 2 clr6export 2 exit ! vrf definition v3 rd 1:3 rt4import 1:3 rt4export 1:3 rt6import 1:3 rt6export 1:3 clr4import 3 clr4export 3 clr6import 3 clr6export 3 exit ! router isis4 1 vrf v1 upgrade-cli net-id 48.0000.0000.3333.00 traffeng-id :: is-type level2 level2 traffeng redistribute connected exit ! interface loopback0 vrf forwarding v1 ipv4 address 2.2.2.3 255.255.255.255 ipv6 address 4321::3 ffff:ffff:ffff:ffff:ffff:ffff:ffff:ffff no shutdown no log-link-change exit ! interface loopback2 vrf forwarding v2 ipv4 address 3.3.3.3 255.255.255.255 no shutdown no log-link-change exit ! interface loopback3 vrf forwarding v3 ipv4 address 4.4.4.3 255.255.255.255 no shutdown no log-link-change exit ! interface ethernet1 lldp enable vrf forwarding v2 ipv4 address 5.5.5.1 255.255.255.252 no shutdown no log-link-change exit ! interface ethernet2 lldp enable vrf forwarding v3 ipv4 address 5.5.5.5 255.255.255.252 no shutdown no log-link-change exit ! interface ethernet3 lldp enable no shutdown no log-link-change exit ! interface ethernet3.111 vrf forwarding v1 ipv4 address 1.1.1.1 255.255.255.252 mpls enable mpls rsvp4 router isis4 1 enable router isis4 1 circuit level2 no shutdown no log-link-change exit ! interface ethernet3.222 vrf forwarding v1 ipv4 address 1.1.1.5 255.255.255.252 mpls enable mpls rsvp4 router isis4 1 enable router isis4 1 circuit level2 no shutdown no log-link-change exit ! interface tunnel1 tunnel vrf v1 tunnel source loopback0 tunnel destination 1.1.1.2 tunnel mode p2pte vrf forwarding v2 ipv4 address 1.1.111.1 255.255.255.252 mpls enable no shutdown no log-link-change exit ! interface tunnel2 tunnel vrf v1 tunnel source loopback0 tunnel destination 1.1.1.6 tunnel mode p2pte vrf forwarding v3 ipv4 address 1.1.222.1 255.255.255.252 mpls enable no shutdown no log-link-change exit ! router bgp4 1 vrf v1 upgrade-cli local-as 1 router-id 2.2.2.3 address-family unicast neighbor 2.2.2.4 remote-as 1 neighbor 2.2.2.4 local-as 1 neighbor 2.2.2.4 address-family vpnuni neighbor 2.2.2.4 distance 200 neighbor 2.2.2.4 update-source loopback0 neighbor 2.2.2.4 send-community all neighbor 2.2.2.4 vpn-route-policy-in ibgp-in afi-vrf v2 enable afi-vrf v2 redistribute connected afi-vrf v3 enable afi-vrf v3 redistribute connected exit ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! server telnet tester security protocol telnet exec colorize header exec monitor no exec authorization no login authentication vrf tester exit ! ! end ``` **r4:** ``` hostname r4 buggy ! logging file debug ./slot0r4-log.run ! route-policy ibgp-in sequence 10 if rd 1:2 sequence 20 set nexthop 1.1.111.1 sequence 30 set vrf v2 ipv4 sequence 40 pass sequence 50 enif sequence 60 if rd 1:3 sequence 70 set nexthop 1.1.222.1 sequence 80 set vrf v3 ipv4 sequence 90 pass sequence 100 enif sequence 110 drop exit ! vrf definition tester exit ! vrf definition v1 rd 1:1 exit ! vrf definition v2 rd 1:2 rt4import 1:2 rt4export 1:2 rt6import 1:2 rt6export 1:2 clr4import 2 clr4export 2 clr6import 2 clr6export 2 exit ! vrf definition v3 rd 1:3 rt4import 1:3 rt4export 1:3 rt6import 1:3 rt6export 1:3 clr4import 3 clr4export 3 clr6import 3 clr6export 3 exit ! router isis4 1 vrf v1 upgrade-cli net-id 48.0000.0000.4444.00 traffeng-id :: is-type level2 level2 traffeng redistribute connected exit ! interface loopback0 vrf forwarding v1 ipv4 address 2.2.2.4 255.255.255.255 ipv6 address 4321::4 ffff:ffff:ffff:ffff:ffff:ffff:ffff:ffff no shutdown no log-link-change exit ! interface loopback2 vrf forwarding v2 ipv4 address 3.3.3.4 255.255.255.255 no shutdown no log-link-change exit ! interface loopback3 vrf forwarding v3 ipv4 address 4.4.4.4 255.255.255.255 no shutdown no log-link-change exit ! interface ethernet1 lldp enable no shutdown no log-link-change exit ! interface ethernet1.111 vrf forwarding v1 ipv4 address 1.1.1.2 255.255.255.252 mpls enable mpls rsvp4 router isis4 1 enable router isis4 1 circuit level2 no shutdown no log-link-change exit ! interface ethernet1.222 vrf forwarding v1 ipv4 address 1.1.1.6 255.255.255.252 mpls enable mpls rsvp4 router isis4 1 enable router isis4 1 circuit level2 no shutdown no log-link-change exit ! interface ethernet2 lldp enable vrf forwarding v1 ipv4 address 1.1.1.9 255.255.255.252 mpls enable no shutdown no log-link-change exit ! interface tunnel1 tunnel vrf v1 tunnel source loopback0 tunnel destination 1.1.1.1 tunnel mode p2pte vrf forwarding v2 ipv4 address 1.1.111.2 255.255.255.252 mpls enable no shutdown no log-link-change exit ! interface tunnel2 tunnel vrf v1 tunnel source loopback0 tunnel destination 1.1.1.5 tunnel mode p2pte vrf forwarding v3 ipv4 address 1.1.222.2 255.255.255.252 mpls enable no shutdown no log-link-change exit ! router bgp4 1 vrf v1 upgrade-cli local-as 1 router-id 2.2.2.4 address-family unicast neighbor 2.2.2.3 remote-as 1 neighbor 2.2.2.3 local-as 1 neighbor 2.2.2.3 address-family vpnuni neighbor 2.2.2.3 distance 200 neighbor 2.2.2.3 update-source loopback0 neighbor 2.2.2.3 send-community all neighbor 2.2.2.3 vpn-route-policy-in ibgp-in afi-vrf v2 enable afi-vrf v2 redistribute connected afi-vrf v2 redistribute bgp4 2 afi-vrf v3 enable afi-vrf v3 redistribute connected afi-vrf v3 redistribute bgp4 2 exit ! router bgp4 2 vrf v1 upgrade-cli local-as 1 router-id 2.2.2.4 no safe-ebgp address-family unicast neighbor 1.1.1.10 remote-as 2 neighbor 1.1.1.10 local-as 1 neighbor 1.1.1.10 address-family ctp neighbor 1.1.1.10 distance 20 neighbor 1.1.1.10 send-community all afi-clr v2 enable afi-clr v2 redistribute connected afi-clr v2 redistribute bgp4 1 afi-clr v3 enable afi-clr v3 redistribute connected afi-clr v3 redistribute bgp4 1 redistribute connected exit ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! server telnet tester security protocol telnet exec colorize header exec monitor no exec authorization no login authentication vrf tester exit ! ! end ``` **r5:** ``` hostname r5 buggy ! logging file debug ./slot0r5-log.run ! vrf definition tester exit ! vrf definition v1 rd 1:1 exit ! vrf definition v2 rd 1:2 rt4import 1:2 rt4export 1:2 rt6import 1:2 rt6export 1:2 clr4import 2 clr4export 2 clr6import 2 clr6export 2 exit ! vrf definition v3 rd 1:3 rt4import 1:3 rt4export 1:3 rt6import 1:3 rt6export 1:3 clr4import 3 clr4export 3 clr6import 3 clr6export 3 exit ! interface loopback0 vrf forwarding v1 ipv4 address 2.2.2.5 255.255.255.255 ipv6 address 4321::5 ffff:ffff:ffff:ffff:ffff:ffff:ffff:ffff no shutdown no log-link-change exit ! interface loopback2 vrf forwarding v2 ipv4 address 3.3.3.5 255.255.255.255 no shutdown no log-link-change exit ! interface loopback3 vrf forwarding v3 ipv4 address 4.4.4.5 255.255.255.255 no shutdown no log-link-change exit ! interface ethernet1 lldp enable vrf forwarding v1 ipv4 address 1.1.1.10 255.255.255.252 mpls enable no shutdown no log-link-change exit ! interface ethernet2 lldp enable vrf forwarding v2 ipv4 address 6.6.6.1 255.255.255.252 no shutdown no log-link-change exit ! interface ethernet3 lldp enable vrf forwarding v3 ipv4 address 6.6.6.5 255.255.255.252 no shutdown no log-link-change exit ! router bgp4 2 vrf v1 upgrade-cli local-as 2 router-id 2.2.2.5 no safe-ebgp address-family unicast neighbor 1.1.1.9 remote-as 1 neighbor 1.1.1.9 local-as 2 neighbor 1.1.1.9 address-family ctp neighbor 1.1.1.9 distance 20 neighbor 1.1.1.9 send-community all afi-clr v2 enable afi-clr v2 redistribute connected afi-clr v3 enable afi-clr v3 redistribute connected redistribute connected exit ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! server telnet tester security protocol telnet exec colorize header exec monitor no exec authorization no login authentication vrf tester exit ! ! end ``` **r6:** ``` hostname r6 buggy ! logging file debug ./slot0r6-log.run ! vrf definition tester exit ! vrf definition v1 rd 1:1 exit ! interface loopback0 vrf forwarding v1 ipv4 address 2.2.2.6 255.255.255.255 ipv6 address 4321::6 ffff:ffff:ffff:ffff:ffff:ffff:ffff:ffff no shutdown no log-link-change exit ! interface ethernet1 lldp enable vrf forwarding v1 ipv4 address 6.6.6.2 255.255.255.252 no shutdown no log-link-change exit ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ipv4 route v1 0.0.0.0 0.0.0.0 6.6.6.1 ! ! ! ! ! ! ! ! ! ! ! ! server telnet tester security protocol telnet exec colorize header exec monitor no exec authorization no login authentication vrf tester exit ! ! end ``` **r7:** ``` hostname r7 buggy ! logging file debug ./slot0r7-log.run ! vrf definition tester exit ! vrf definition v1 rd 1:1 exit ! interface loopback0 vrf forwarding v1 ipv4 address 2.2.2.7 255.255.255.255 ipv6 address 4321::7 ffff:ffff:ffff:ffff:ffff:ffff:ffff:ffff no shutdown no log-link-change exit ! interface ethernet1 lldp enable vrf forwarding v1 ipv4 address 6.6.6.6 255.255.255.252 no shutdown no log-link-change exit ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ipv4 route v1 0.0.0.0 0.0.0.0 6.6.6.5 ! ! ! ! ! ! ! ! ! ! ! ! server telnet tester security protocol telnet exec colorize header exec monitor no exec authorization no login authentication vrf tester exit ! ! end ```
Attachment:
Description: PNG image
