Hello

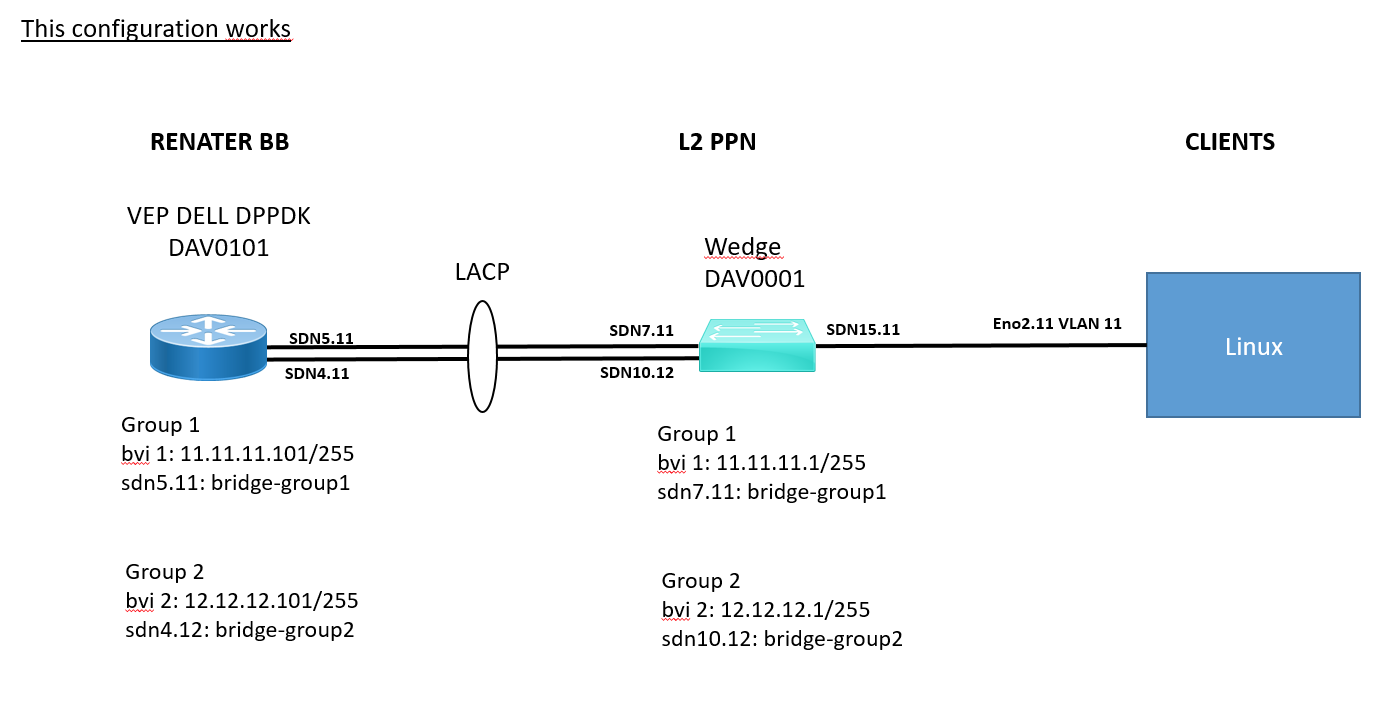

I create a testbed on which (see picture attached):

• the client is connected on a WEDGE (L2-PPN) at Layer 2 using Ethernet  or VLAN
• The WEDGE (L2PPN) should be connected to our backbone thanks to a bond of interfaces (LACP). The traffic on the LACP must be a VLAN trunk.

I see a strange behaviour and it is certainly due to how I configure it.

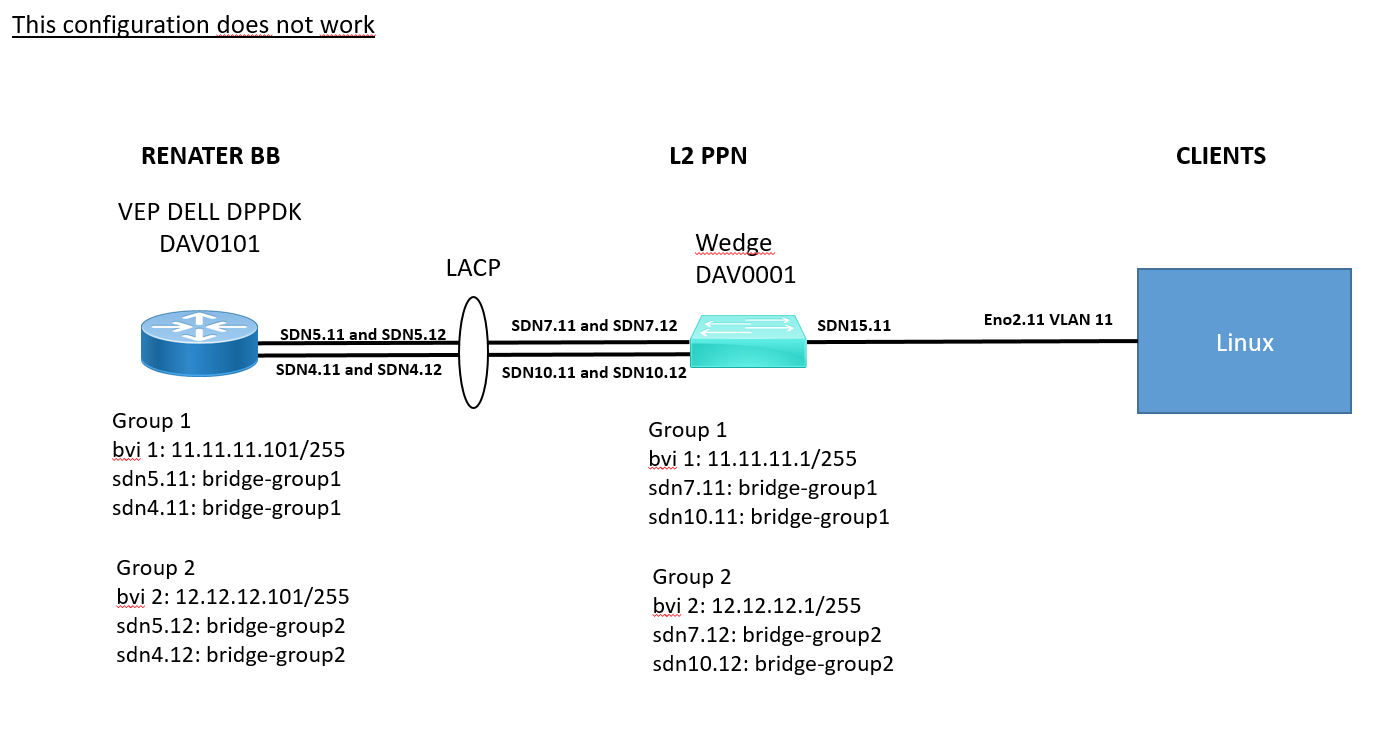

If I put the 2  vlans (11-12) on the all interfaces taking part on the LACP, it does not work.
If  I put the 1 vlan only on each interface of the taking part on the LACP, it  works. But in this case the traffic should not be well shared between the LACP links.

I suspect I implement this use case not appropriately (see configuration attached + picture). Any suggestion?

Regards
Xavier

--
Xavier JEANNIN
Network Dpt.
GN4-3 Network technology evolution (WP6 T1) task leader
Tél. : +33 1 5394 2042
Mob. : +33 6 3017 0963
www.renater.fr

DAV0101#show running-config hide
hostname DAV0101
buggy
!
logging buffered debug 8192
logging file debug zzz.log
logging rotate 65536000 zzz.old
!
crypto rsakey rsa import $w10$<removed>$
!
crypto dsakey dsa import $w10$<removed>$
!
crypto ecdsakey ecdsa import $w10$<removed>$
!
aaa userlist usr
 username rare
 username rare password $w10$<removed>$
 exit
!
scheduler errors
 time 600000
 delay 30000
 command clear errors
 start
 exit
!
scheduler upgrade
 time 600000
 delay 60000
 random-time 60000
 random-delay 300000
 command flash upgrade
 start
 exit
!
object-group network host4
 sequence 10 10.255.255.0 255.255.255.0
 exit
!
object-group network host6
 sequence 10 2001:db8:ffff:ffff:: ffff:ffff:ffff:ffff::
 exit
!
object-group network lloc4
 sequence 10 169.254.0.0 255.255.0.0
 exit
!
object-group network lloc6
 sequence 10 fe80:: ffff::
 exit
!
object-group network mcast4
 sequence 10 224.0.0.0 255.255.0.0
 exit
!
object-group network mcast6
 sequence 10 ff00:: ff00::
 exit
!
access-list nat4
 sequence 10 deny all obj lloc4 all any all
 sequence 20 deny all any all obj mcast4 all
 sequence 30 deny all obj host4 all obj host4 all
 sequence 40 permit all obj host4 all any all
 exit
!
access-list nat6
 sequence 10 deny all obj lloc6 all any all
 sequence 20 deny all any all obj mcast6 all
 sequence 30 deny all obj host6 all obj host6 all
 sequence 40 permit all obj host6 all any all
 exit
!
access-list test4
 sequence 10 permit all any all 3.3.3.3 255.255.255.255 all
 exit
!
prefix-list all4
 sequence 10 permit 0.0.0.0/0 ge 0 le 0
 exit
!
prefix-list all6
 sequence 10 permit ::/0 ge 0 le 0
 exit
!
bridge 1
 mac-learn
 exit
!
bridge 2
 mac-learn
 exit
!
vrf definition inet
 exit
!
vrf definition oob
 exit
!
vrf definition p4
 exit
!
router ospf4 1
 vrf inet
 router-id 10.1.3.3
 traffeng-id 0.0.0.0
 area 0 enable
 exit
!
router ospf6 1
 vrf inet
 router-id 10.1.3.3
 traffeng-id ::
 area 0 enable
 exit
!
interface loopback0
 vrf forwarding inet
 ipv4 address 10.1.3.3 255.255.255.255
 router ospf4 1 enable
 router ospf4 1 area 0
 router ospf4 1 passive
 no shutdown
 no log-link-change
 exit
!
interface loopback1
 vrf forwarding inet
 ipv4 address 2.2.2.3 255.255.255.255
 ipv6 address 4321::3 ffff:ffff:ffff:ffff:ffff:ffff:ffff:ffff
 router ospf4 1 enable
 router ospf4 1 area 0
 router ospf4 1 passive
 router ospf6 1 enable
 router ospf6 1 area 0
 router ospf6 1 passive
 no shutdown
 no log-link-change
 exit
!
interface loopback3333
 vrf forwarding inet
 ipv4 address 3.3.3.3 255.255.255.255
 no shutdown
 no log-link-change
 exit
!
interface bvi1
 vrf forwarding inet
 ipv4 address 11.11.11.101 255.255.255.0
 no shutdown
 no log-link-change
 exit
!
interface bvi2
 vrf forwarding inet
 ipv4 address 12.12.12.101 255.255.255.0
 no shutdown
 no log-link-change
 exit
!
interface ethernet0
 description p4 cpu port
 no shutdown
 no log-link-change
 exit
!
interface sdn1
 mtu 1500
 macaddr 0028.7866.2c41
 lldp enable
 vrf forwarding inet
 ipv4 address 10.1.34.3 255.255.255.0
 shutdown
 no log-link-change
 exit
!
interface sdn2
 mtu 1500
 macaddr 0040.572f.3c09
 lldp enable
 vrf forwarding inet
 ipv4 address 10.2.34.3 255.255.255.0
 shutdown
 no log-link-change
 exit
!
interface sdn3
 mtu 1500
 macaddr 0009.1275.1e69
 lldp enable
 vrf forwarding inet
 ipv4 address 10.3.34.3 255.255.255.0
 shutdown
 no log-link-change
 exit
!
interface sdn4
 mtu 1500
 macaddr 004f.3b5b.5353
 lldp enable
 lacp 0000.0000.4321 12345 4
 vrf forwarding inet
 no shutdown
 no log-link-change
 exit
!
interface sdn4.11
 bridge-group 1
 no shutdown
 no log-link-change
 exit
!
interface sdn4.12
 bridge-group 2
 no shutdown
 no log-link-change
 exit
!
interface sdn5
 mtu 1500
 macaddr 0060.1a21.1d27
 lldp enable
 lacp 0000.0000.4321 12345 2
 no shutdown
 no log-link-change
 exit
!
interface sdn5.11
 bridge-group 1
 no shutdown
 no log-link-change
 exit
!
interface sdn5.12
 bridge-group 2
 no shutdown
 no log-link-change
 exit
!
interface sdn6
 mtu 1500
 macaddr 0061.4870.5670
 lldp enable
 vrf forwarding inet
 ipv4 address 10.6.34.3 255.255.255.0
 shutdown
 no log-link-change
 exit
!
interface sdn7
 mtu 1500
 macaddr 0067.2724.3157
 lldp enable
 vrf forwarding inet
 ipv4 address 10.7.34.3 255.255.255.0
 shutdown
 no log-link-change
 exit
!
proxy-profile inet
 vrf inet
 exit
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
alias test bash command attach shell1 socat - exec:bash,ctty,pty,stderr
alias test bash description get linux shell
!
server telnet inet
 security protocol telnet
 security authentication usr
 exec logging
 no exec authorization
 login authentication usr
 login logging
 interface loopback3333
 vrf inet
 exit
!
server telnet oob
 security authentication usr
 security rsakey rsa
 security dsakey dsa
 security ecdsakey ecdsa
 second-port 22
 exec logging
 no exec authorization
 login authentication usr
 login logging
 vrf oob
 exit
!
server telnet p4
 security protocol telnet
 no exec authorization
 no login authentication
 vrf p4
 exit
!
server telnet tel
 security rsakey rsa
 security dsakey dsa
 security ecdsakey ecdsa
 access-log
 access-rate 5 5000
 access-total 5
 access-peer 5
 protocol ipv4 tcp
 second-port 22
 exec logging
 no exec authorization
 no login authentication
 login logging
 login last global
 vrf inet
 exit
!
server p4lang p4
 export-vrf inet
 export-vrf oob
 export-bridge 1
 export-port sdn1 0 1 0 0 0
 export-port sdn2 1 1 0 0 0
 export-port sdn3 2 1 0 0 0
 export-port sdn4 3 10 0 0 0
 export-port sdn5 4 10 0 0 0
 export-port sdn6 5 1 0 0 0
 export-port sdn7 6 1 0 0 0
 export-port bvi1 dynamic 0 0 0 0
 interconnect ethernet0
 vrf p4
 exit
!
server dns ns
 recursion enable
 vrf inet
 exit
!
client proxy inet
client name-server 193.49.159.2
client upgrade-server http://upgrade.nop.hu/
client upgrade-backup
client config-backup
client time-server europe.pool.ntp.org
client time-zone CET
!
end
DAV0001#show running-config hide
hostname DAV0001
buggy
!
logging buffered debug 10240
logging file debug /var/log/freertr.log
logging rotate 655360000 /var/log/freertr.old
!
crypto rsakey rsa import $w10$<removed>$
!
crypto dsakey dsa import $w10$<removed>$
!
crypto ecdsakey ecdsa import $w10$<removed>$
!
aaa userlist usr
 username rare
 username rare password $w10$<removed>$
 exit
!
scheduler errors
 time 600000
 delay 30000
 command clear errors
 start
 exit
!
access-list test1
 exit
!
prefix-list all4
 sequence 10 permit 0.0.0.0/0 ge 0 le 0
 exit
!
prefix-list all6
 sequence 10 permit ::/0 ge 0 le 0
 exit
!
bridge 1
 mac-learn
 exit
!
bridge 2
 mac-learn
 exit
!
vrf definition inet
 exit
!
vrf definition lin
 exit
!
vrf definition oob
 exit
!
vrf definition p4
 description P4 VRF _NEVER_EVER_ CONFIGURE IT
 exit
!
interface bvi1
 description "DAV0001 BVI1 BRIDGE 1"
 vrf forwarding inet
 ipv4 address 11.11.11.1 255.255.255.0
 no shutdown
 no log-link-change
 exit
!
interface bvi2
 vrf forwarding inet
 ipv4 address 12.12.12.1 255.255.255.0
 no shutdown
 no log-link-change
 exit
!
interface ethernet0
 description CPU_PORT _NEVER_EVER_ CONFIGURE IT
 no shutdown
 no log-link-change
 exit
!
interface ethernet1
 description out of band management port
 vrf forwarding oob
 ipv4 address dynamic dynamic
 ipv4 gateway-prefix all4
 ipv4 dhcp-client enable
 ipv4 dhcp-client early
 ipv6 address dynamic dynamic
 ipv6 gateway-prefix all6
 ipv6 slaac-client enable
 ipv6 prefix-suppress
 no shutdown
 no log-link-change
 exit
!
interface ethernet2
 description linux tuntap management interface
 vrf forwarding lin
 ipv4 address 10.255.255.254 255.255.255.0
 no shutdown
 no log-link-change
 exit
!
interface sdn10
 description frontpanel port 10/0
 mtu 1500
 macaddr 0031.755e.0363
 monitor-session ethernet2
 lldp enable
 lacp 0000.0000.1234 12345 3
 no shutdown
 no log-link-change
 exit
!
interface sdn10.11
 bridge-group 1
 no shutdown
 no log-link-change
 exit
!
interface sdn10.12
 bridge-group 2
 no shutdown
 no log-link-change
 exit
!
interface sdn15
 description frontpanel port 15/0
 mtu 1500
 bandwidth 10000000
 macaddr 0056.2158.6249
 lldp enable
 vrf forwarding inet
 no shutdown
 log-link-change
 exit
!
interface sdn15.11
 bridge-group 1
 no shutdown
 no log-link-change
 exit
!
interface sdn7
 description frontpanel port 7/0
 mtu 1500
 macaddr 0040.784a.0b38
 lldp enable
 lacp 0000.0000.1234 12345 1
 no shutdown
 log-link-change
 exit
!
interface sdn7.11
 bridge-group 1
 no shutdown
 no log-link-change
 exit
!
interface sdn7.12
 bridge-group 2
 no shutdown
 no log-link-change
 exit
!
proxy-profile oob
 vrf oob
 exit
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
alias exec tna-set-profile sticky-param RENATER_PEERING_L2
!
!
!
!
!
!
!
!
!
!
server telnet oob
 security authentication usr
 security rsakey rsa
 security dsakey dsa
 security ecdsakey ecdsa
 second-port 22
 exec logging
 no exec authorization
 login authentication usr
 login logging
 vrf oob
 exit
!
server telnet p4
 security protocol telnet
 exec logging
 no exec authorization
 no login authentication
 login logging
 vrf p4
 exit
!
server p4lang p4
 export-vrf inet
 export-bridge 1
 export-bridge 2
 export-port sdn15 12 10 0 0 0
 export-port sdn10 52 10 0 0 0
 export-port sdn7 176 10 0 0 0
 export-port bvi1 dynamic 0 0 0 0
 interconnect ethernet0
 vrf p4
 exit
!
client proxy oob
client name-server 1.1.1.1
client time-server europe.pool.ntp.org
client time-zone CET
!
end
