be prepared that as i last checked, the par0101 node does not have the latest
dpdk libs,
that is, once the connection restored,

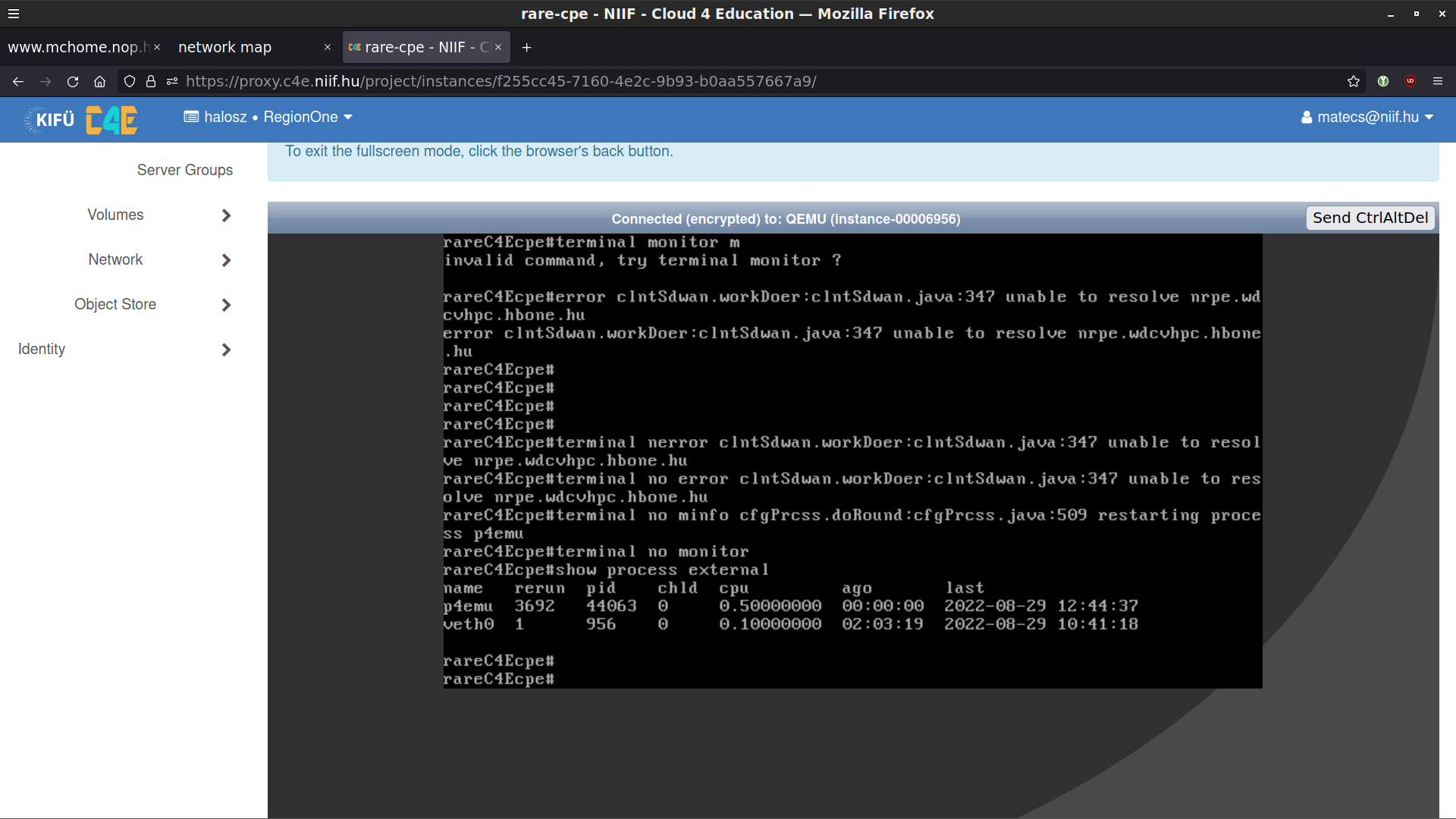

(_whoever_ will do that finally) it'll self destruct itself, see attached
screenshot: the p4emu restarts continously
the reason behind is that the new p4dpdk*.bin is linked against the dpdk21.11
libs which is missing at par0101...

sorry, i misunderstood something, because i saw the clearnet working and you
said geant cage and never mentioned that it's just the p4lab...

and exactly that's what i still dont understand:
why did _not_ configured the par0101 to use geant's clearnet and went the
nmaas wireguard tunnel?

here is a way to do so:
proxy-profile clearnet
 vrf clearnet
 exit
client http-proxy clearnet
client name-proxy clearnet
and the default nat config from the one-liner to have the linux also have
internet

we have it everywhere, the one-line installer, in alex's tofino images, the
prebuilts, and so on...



On 8/29/22 10:58, Fr  d  ric LOUI wrote:
> Hi,
>
> As it is a problem related to G  ANT P4 lab I   m stripping rare-users and
>
> If you feel that it is related to these mailing list feel free to add them
> again.
>
> As mentioned PAR0101 problem was under G  ANT responsibility.
> The problem has been identified and confirmed my observation but also your
> observation WRT PAR0101 inband management access working.
> (Cf check thread below)
>
> G  ANT support ticket  [TT#2022082434002594]
>
> And here is their feedback:
>
>
> <FEEDBACK FROM G  ANT support>
>
> Le 25 ao  t 2022    07:19, GEANT Support <> a   crit :
>
> Dear Frederic,
>
> The servers need repatching, following the move to a new location within the
> data centre.  Unfortunately this was not possible to do during the move due
> to unforeseen circumstances. Engineers are scheduled to attend site on Monday
> to complete these tasks.
>
> Please let us know if you require further information at this time.  We will
> provide further updates as they become available.
>
> Kind Regards,
>
> William Barber
> G  ANT Operations Centre
>
> Email:
> Tel: +44 (0)1223 733033
>
> GEANT CERT - PGP Key ID: 0x99833085  / Fingerprint: 3CBF F211 8305 635D 5839
> BB27 BA6B F34A 9983 3085
>
> Networks     Services     People
> http://www.geant.org
>    G  ANT Vereniging (Association) is registered with the Chamber of Commerce in Amsterdam with registration number 40535155 and operates in the UK as a branch of G  ANT Vereniging. Registered office: Hoekenrode 3, 1102BR Amsterdam, The Netherlands. UK branch address: City House, 126-130 Hills Road, Cambridge CB2 1PQ, UK.
>
> 24/08/2022 10:15 - Fr  d  ric LOUI wrote:
> Please note that the RARE P4 switch is working well.
>
>
>
> What is not working is PAR-BMS4 internet access.
> Accessing PAR-BMS via guacamole is OK and we see the Linux interface is UP
>
> Just in case please allow me to add Milos and Alexander who are GTS subject
> matter
> expert.
>
> Maybe they can provide more details on what is broken at GTS_hardware@PAR
>
> All the best,
> Frederic
>
> > Le 24 ao  t 2022    12:18, GEANT Support <> a   crit :
> >
> > Dear Frederic,
> >
> > Sorry for the delay in this.  We're currently working to try and resolve the
> > connectivity issues for the RARE servers in Paris and awaiting engineers
> > locally to be available to assist in this.  We are chasing this at the moment
> > and will update you when we have durther information.
> >
> > Kind Regards,
> >
> > William Barber
> > G  ANT Operations Centre
> >
> > Email:
> > Tel: +44 (0)1223 733033
> >
> > GEANT CERT - PGP Key ID: 0x99833085  / Fingerprint: 3CBF F211 8305 635D 5839
> > BB27 BA6B F34A 9983 3085
>
>
> </END FEEDBACK FROM G  ANT support>
>
> By the way I cross check with NMaaS support team, and they were not involve
> nor myself in shutting down the tunnel whatsoever.
> Their firewall logs showed that the tunnel went down ~32 days ago which is
> roughly when G  ANT initiated cage move.
>
> So the problem is identified and handled by G  ANT, further investigation is
> not needed from your part.
> Thanks your help though !
>
> Frederic
>
> > Le 28 ao  t 2022    09:21, mc36 <> a   crit :
> >
> > and finally, it's a wg tunnel and at the moment i really have questions about
> > it...
> > i avoided using ec unless i absolutely had to with a reason: as it turned out,
> > most of the curves are backdoored ( https://safecurves.cr.yp.to/ ) and what
> > remains,
> > provides not too much bits and under the hood, and ec is just a
> > multiplication...
> > more about the question here:
> > https://lists.geant.org/sympa/arc/rare-dev/2022-08/msg00082.html
> >
> >
> >
> > On 8/28/22 08:58, mc36 wrote:
> > > okkk so just to summarize it up a bit for easier understanding:
> > > -frederic said to me that it's a geant issue after a cage movement
> > > -he configured the box to use the wg to nmaas for the oob's default
> > > and as the wg code last changed 24 days ago (*) and the internet access is
> > > down for 12 days:
> > > he simply asked the nmaas friends of him to shut down the tunnels
> > > *:
> > > https://github.com/rare-freertr/freeRtr/blob/master/src/net/freertr/clnt/clntWireguard.java
> > > On 8/28/22 08:11, mc36 wrote:
> > > > so we have a proverb for this in hungary: huzogatod a faszomon a bort de nem
> > > > nyeled le
> > > >
> > > >
> > > > On 8/28/22 08:00, mc36 wrote:
> > > > > clearly frederic the fuck are you doing?!?!?!?!?!
> > > > >
> > > > >
> > > > > {"date":"2022-08-25T11:31:40.000Z","who":"fl","text":"BTW PAR0101 is down, GEANT moved their cage physcally in PAROS and
> > > > > obviously forgot things","flags":["incoming"],"remoteId":""}
> > > > > {"date":"2022-08-25T11:31:43.000Z","who":"mc36","text":"hmm, then imho you'll send and i'll
> > > > > receive","flags":["outgoing"],"remoteId":""}
> > > > > {"date":"2022-08-25T11:32:11.000Z","who":"mc36","text":"par0101 it'll recover later
> > > > > right?","flags":["outgoing"],"remoteId":""}
> > > > > {"date":"2022-08-25T11:32:17.000Z","who":"fl","text":"I'm working with GEANT NOC in order to resolve that
> > > > > issue","flags":["incoming"],"remoteId":""}
> > > > >
> > > > >
> > > > >
> > > > >
> > > > > On 8/28/22 07:57, mc36 wrote:
> > > > > > okkk, btw at that point im pretty sure it was not geant btw.... :))))))))))
> > > > > >
> > > > > > On 8/28/22 07:39, mc36 wrote:
> > > > > > > well, so the box will die for sure as geant recovers but if you used
> > > > > > > client proxy clearnet
> > > > > > > instead of
> > > > > > > client proxy oob
> > > > > > > which, is a wg to poznan then you wouldn't have to reinstall it from
> > > > > > > scratch...
> > > > > > > clearly, what you had here is not oob but a tunneled one...
> > > > > > >
> > > > > > >
> > > > > > > On 8/28/22 07:34, mc36 wrote:
> > > > > > > > well it cannot be a routing issue :))))))))))))))))))))))))
> > > > > > > >
> > > > > > > > PAR0101#ping 1.1.1.1 vrf CLEARNET
> > > > > > > > pinging 1.1.1.1, src=null, vrf=CLEARNET, cnt=5, len=64, df=false, tim=1000,
> > > > > > > > gap=0, ttl=255, tos=0, sgt=0, flow=0, fill=0, sweep=false, multi=false
> > > > > > > > !!!!!
> > > > > > > > result=100.0%, recv/sent/lost/err=5/5/0/0, took 41, min/avg/max/dev
> > > > > > > > rtt=8/8.0/8/0.0, ttl 58/58.0/58/0.0, tos 164/164/164/0.0
> > > > > > > > PAR0101#ping 195.111.97.109 vrf CLEARNET
> > > > > > > > pinging 195.111.97.109, src=null, vrf=CLEARNET, cnt=5, len=64, df=false,
> > > > > > > > tim=1000, gap=0, ttl=255, tos=0, sgt=0, flow=0, fill=0, sweep=false,
> > > > > > > > multi=false
> > > > > > > > !!!!!
> > > > > > > > result=100.0%, recv/sent/lost/err=5/5/0/0, took 157, min/avg/max/dev
> > > > > > > > rtt=31/31.4/32/0.2, ttl 249/249/249/0.0, tos 0/0.0/0/0.0
> > > > > > > > PAR0101#
> > > > > > > >
> > > > > > > >
> > > > > > > >
> > > > > > > >
> > > > > > > > On 8/28/22 07:33, mc36 wrote:
> > > > > > > > > my bad, i accidentally pinged in the wrong vrf, here is the good one:
> > > > > > > > >
> > > > > > > > > PAR0101#show ipv4 route CLEARNET
> > > > > > > > > typ     prefix                                         metric     iface
> > > > > > > > >                       hop                                         time
> > > > > > > > > S             0.0.0.0/0                             1/0
> > > > > > > > > sdn1.666                 62.40.109.30     00:09:39
> > > > > > > > > C             10.10.10.0/30             0/0                 hairpin6661
> > > > > > > > > null                                     11d19h
> > > > > > > > > LOC     10.10.10.1/32             0/1                 hairpin6661     null
> > > > > > > > >                                  11d19h
> > > > > > > > > C             62.40.109.30/31     0/0                 sdn1.666
> > > > > > > > >  null                                     00:09:39
> > > > > > > > > LOC     62.40.109.31/32     0/1                 sdn1.666                 null
> > > > > > > > >                                     00:09:39
> > > > > > > > >
> > > > > > > > > PAR0101#
> > > > > > > > > PAR0101#ping 62.40.109.30 vrf CLEARNET
> > > > > > > > > pinging 62.40.109.30, src=null, vrf=CLEARNET, cnt=5, len=64, df=false,
> > > > > > > > > tim=1000, gap=0, ttl=255, tos=0, sgt=0, flow=0, fill=0, sweep=false,
> > > > > > > > > multi=false
> > > > > > > > > !!!!!
> > > > > > > > > result=100.0%, recv/sent/lost/err=5/5/0/0, took 4, min/avg/max/dev
> > > > > > > > > rtt=0/0.6/1/0.2, ttl 64/64.0/64/0.0, tos 0/0.0/0/0.0
> > > > > > > > > PAR0101#
> > > > > > > > >
> > > > > > > > > so from this point, i cannot say a word.... well i could.... :)
> > > > > > > > >
> > > > > > > > >
> > > > > > > > > On 8/28/22 07:25, mc36 wrote:
> > > > > > > > > > so helping to the irc question of you, that geant is unable to provide
> > > > > > > > > > internet access for 12 days now...
> > > > > > > > > > fortunately the inband mgmt still works so you can help them find the issue
> > > > > > > > > > with the vlan666...
> > > > > > > > > > seemingly we have some traffic and the good arp entry so it must be a routing
> > > > > > > > > > or acl issue at geant mx...:)))))))))
> > > > > > > > > > bad news is that as today i unhold the dpdk21 packages and the box haven't
> > > > > > > > > > got the dpdk21.11 so it'll self destruct as geant recovers.... :(
> > > > > > > > > >
> > > > > > > > > >
> > > > > > > > > > PAR0101#show platform
> > > > > > > > > > freeRouter v22.7.26-cur, done by cs@nop.
> > > > > > > > > >
> > > > > > > > > > name: PAR0101
> > > > > > > > > > hwid: Dell Inc. PowerEdge R430/0CN7X8
> > > > > > > > > > hwsn: null
> > > > > > > > > > uptime: since 2022-08-16 11:33:15, for 11d19h
> > > > > > > > > > reload: code#2=upgrade finished
> > > > > > > > > > rwpath: /rtr/
> > > > > > > > > > hwcfg: /rtr/rtr-hw.txt
> > > > > > > > > > swcfg: /rtr/rtr-sw.txt
> > > > > > > > > > cpu: 40*amd64
> > > > > > > > > > mem: free=519m, max=1073m, used=1073m
> > > > > > > > > > host: Linux v5.17.0-2-amd64
> > > > > > > > > > java: Debian v19-ea @ /usr/lib/jvm/java-19-openjdk-amd64
> > > > > > > > > > jspec: Oracle Corporation (Java Platform API Specification) v19
> > > > > > > > > > vm: Debian (OpenJDK 64-Bit Server VM) v19-ea+32-Debian-1
> > > > > > > > > > vmspec: Oracle Corporation (Java Virtual Machine Specification) v19
> > > > > > > > > > class: v63.0 @ /rtr/rtr.jar
> > > > > > > > > >
> > > > > > > > > > PAR0101#show interfaces summary
> > > > > > > > > > interface                     state     tx                         rx
> > > > > > > > > >                                 drop
> > > > > > > > > > template1                     admin     0                             0
> > > > > > > > > >                                       588
> > > > > > > > > > template666             admin     0                             0
> > > > > > > > > >                                 0
> > > > > > > > > > loopback0                     up                 2402                 0
> > > > > > > > > >                                       0
> > > > > > > > > > loopback20965     up                 0                             0
> > > > > > > > > >                                    0
> > > > > > > > > > ethernet0                     up                 45335             115091610
> > > > > > > > > >            0
> > > > > > > > > > ethernet1                     up                 780                     4004
> > > > > > > > > >                                 4004
> > > > > > > > > > hairpin6661             up                 486+0             486+0
> > > > > > > > > >                  0+0
> > > > > > > > > > hairpin6662             up                 486+0             486+0
> > > > > > > > > >                  0+0
> > > > > > > > > > sdn1                                         up                 44351+0
> > > > > > > > > > 114894232+0     0+0
> > > > > > > > > > sdn1.102                         up                 3628+0         3958+0
> > > > > > > > > >                     0+0
> > > > > > > > > > sdn1.103                         up                 26429+0     16116+0
> > > > > > > > > >               0+0
> > > > > > > > > > sdn1.666                         up                 11930+0     114479534+0
> > > > > > > > > >   0+0
> > > > > > > > > > sdn2                                         admin     0+0
> > > > > > > > > >  0+0                                     0+0
> > > > > > > > > > tunnel123                     up                 670+0             0+0
> > > > > > > > > >                              0+0
> > > > > > > > > > tunnel2075                 up                 5462+0         4238+0
> > > > > > > > > >               0+0
> > > > > > > > > >
> > > > > > > > > > PAR0101#
> > > > > > > > > > PAR0101#show running-config interface sdn1.666
> > > > > > > > > > interface sdn1.666
> > > > > > > > > >        description AMT RLY INTERNET facing interface
> > > > > > > > > >        monitor-buffer 8192000
> > > > > > > > > >        vrf forwarding CLEARNET
> > > > > > > > > >        ipv4 address 62.40.109.31 255.255.255.254
> > > > > > > > > >        ipv6 address 2001:798:dd:6::6 ffff:ffff:ffff:ffff:ffff:ffff:ffff:fffc
> > > > > > > > > >        ipv6 enable
> > > > > > > > > >        no shutdown
> > > > > > > > > >        no log-link-change
> > > > > > > > > >        exit
> > > > > > > > > > !
> > > > > > > > > >
> > > > > > > > > > PAR0101#show ipv4 arp sdn1.666
> > > > > > > > > > mac                                                 address
> > > > > > > > > >       time                     static
> > > > > > > > > > a8d0.e5f7.8717     62.40.109.30     00:00:11     false
> > > > > > > > > >
> > > > > > > > > > PAR0101#
> > > > > > > > > > PAR0101#ping 62.40.109.30 vrf oob
> > > > > > > > > > pinging 62.40.109.30, src=null, vrf=oob, cnt=5, len=64, df=false, tim=1000,
> > > > > > > > > > gap=0, ttl=255, tos=0, sgt=0, flow=0, fill=0, sweep=false, multi=false
> > > > > > > > > > .....
> > > > > > > > > > result=0.0%, recv/sent/lost/err=0/5/5/0, took 5001, min/avg/max/dev
> > > > > > > > > > rtt=10000/0.0/0/0.0, ttl 256/0.0/0/0.0, tos 256/0.0/0/0.0
> > > > > > > > > > PAR0101#
> > > > > > > >
> > > > > > > >
> > > > > > > > -=-=-=-=-=-=-=-=-=-=-=-
> > > > > > > > Groups.io Links: You receive all messages sent to this group.
> > > > > > > > View/Reply Online (#645): https://groups.io/g/freertr/message/645
> > > > > > > > Mute This Topic: https://groups.io/mt/93302745/6006518
> > > > > > > > Group Owner:
> > > > > > > > Unsubscribe: https://groups.io/g/freertr/unsub []
> > > > > > > > -=-=-=-=-=-=-=-=-=-=-=-

Attachment: 2022-08-29-124441_1920x1080_scrot_000.png
Description: PNG image
