And forgotten, a great  thank you to Marcos.

    Regards
    Xavier

Le 25/11/2021 à 14:35, Xavier JEANNIN a écrit :

Great news
Seems to be very promising

Regards
Xavier

---

De: "frederic loui"
À:
Cc: "Marcos Felipe Schwarz"
Envoyé: Jeudi 25 Novembre 2021 12:30:05
Objet: [RARE-users] RIO DTN server is alive !

Hi all,

I’m pleased to mention that RIO DTN server is alive in GEANT P4 Lab !

This DTN is equipped with one Mellanox ConnecX-5 able to pour 100GE of traffic using DPDK/Trex.

It can be used to enable 100GE traffic test via BELLA and perform traffic flow identification and steering.

For now the uplink toward Europe is 10GE.

A huge thanks to Marcos for his flawless configuration of RARE/freeRtr and kudos to the whole RARE team.

Please find the screenshots of a test running 5GE transfer from RIO-DTN and HAM-DTN.

(We cannot more than 10GE as the Lab is connected via 10G links for now.)

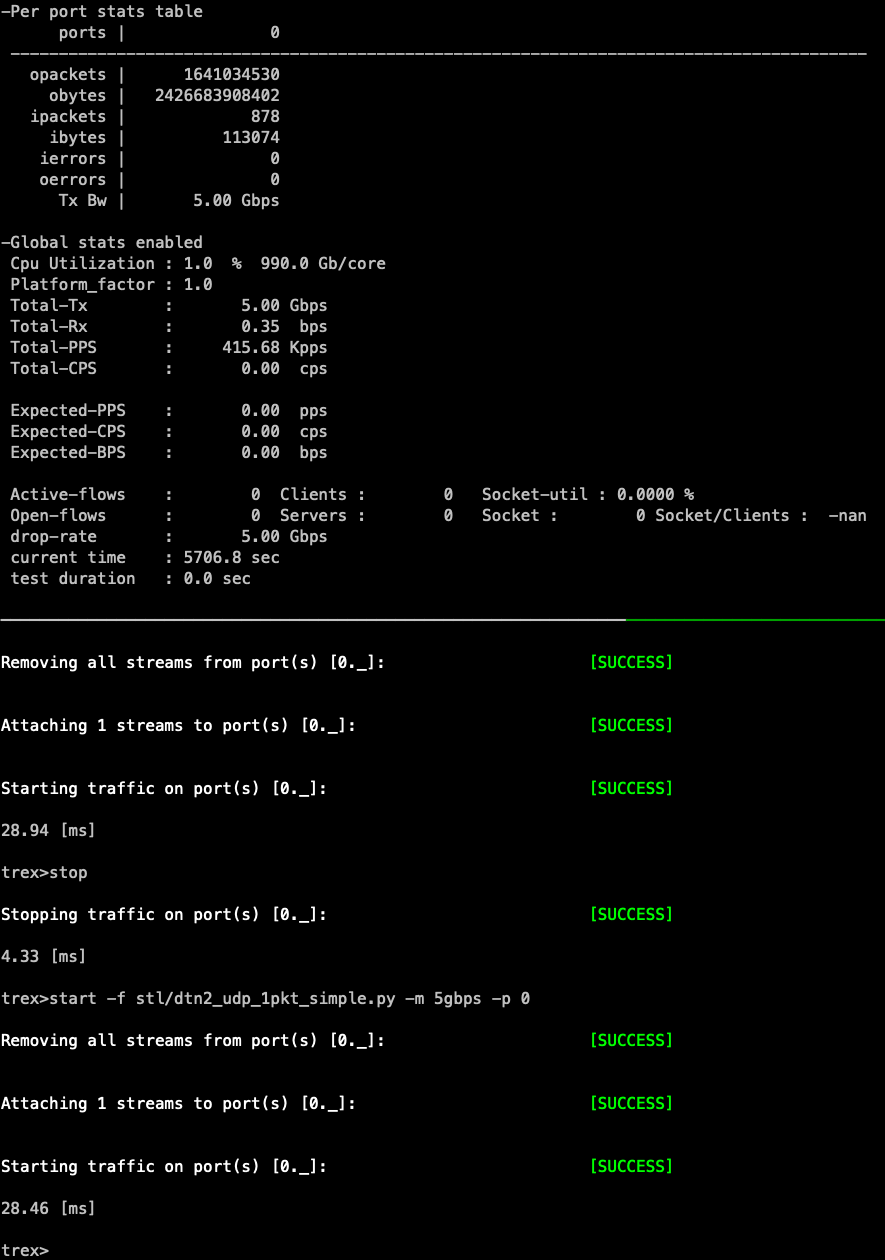

* RIO-DTN transmitting 5 Gbps

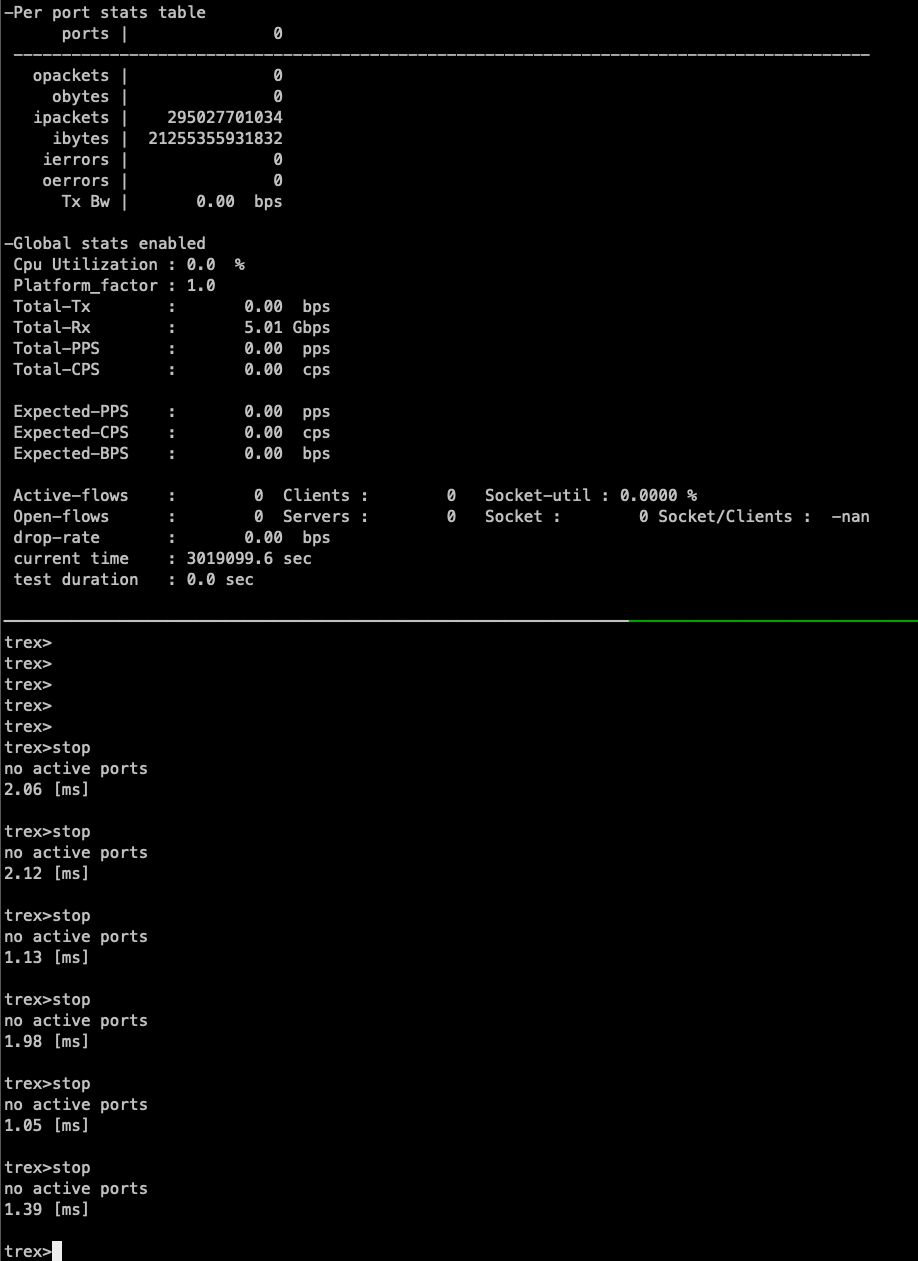

* HAM receiving 5Gbps

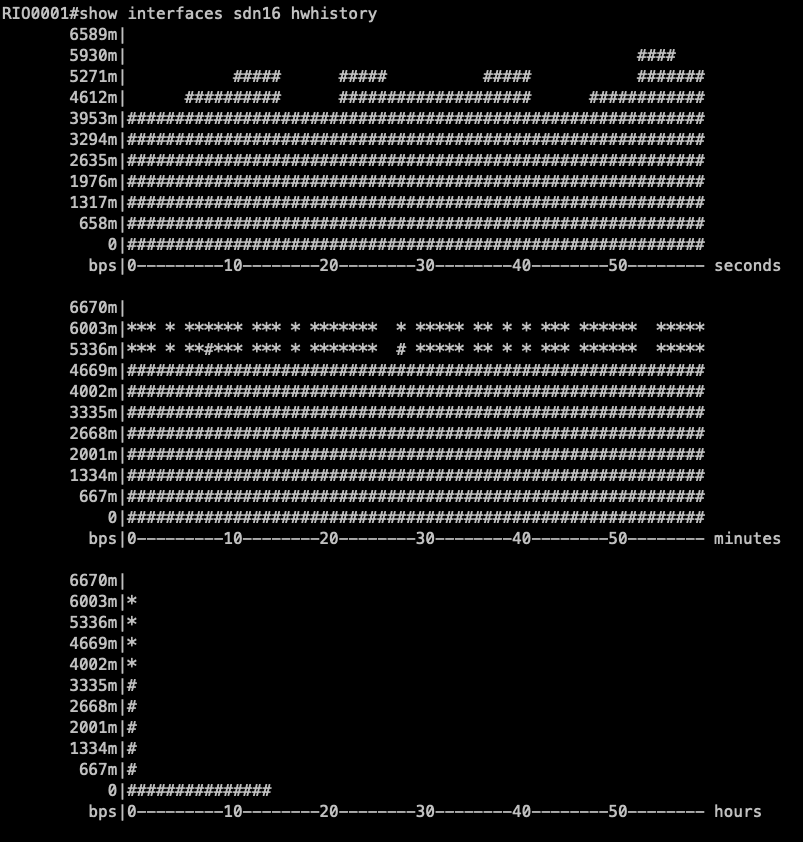

This is confirmed but freeRtr real time observation from CLI:

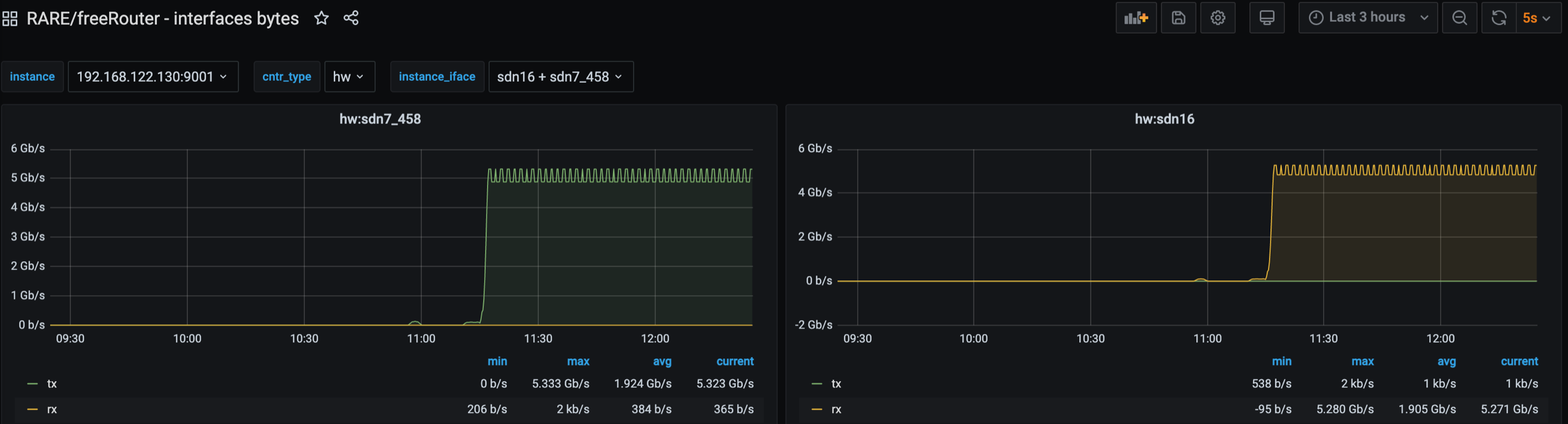

This is confirmed by RIO graphs from NMaaS:

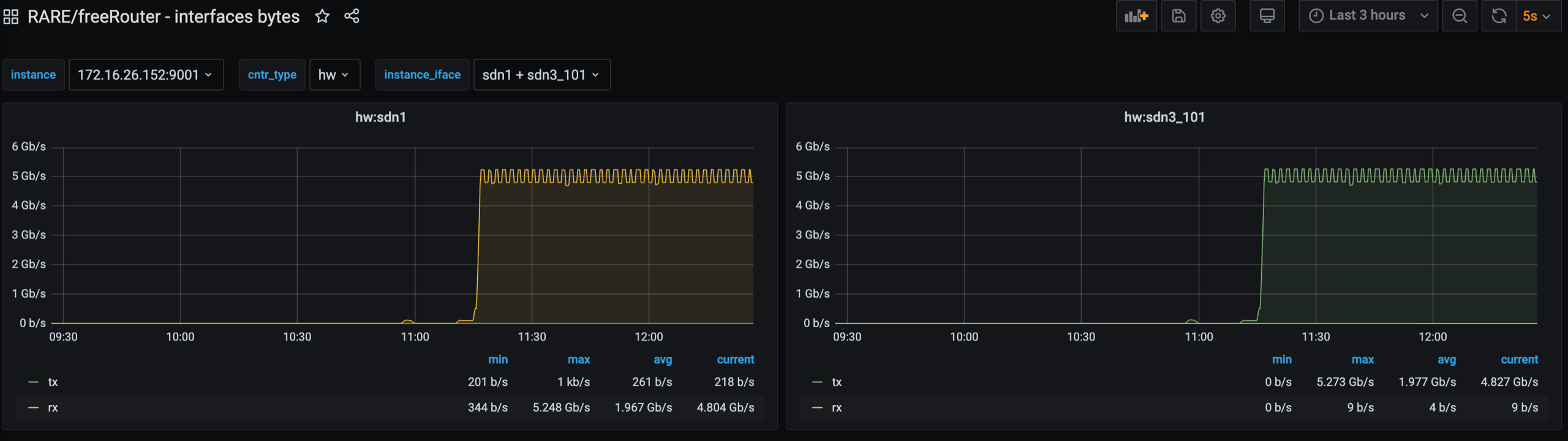

This is confirmed by AMS graphs from NMaaS:

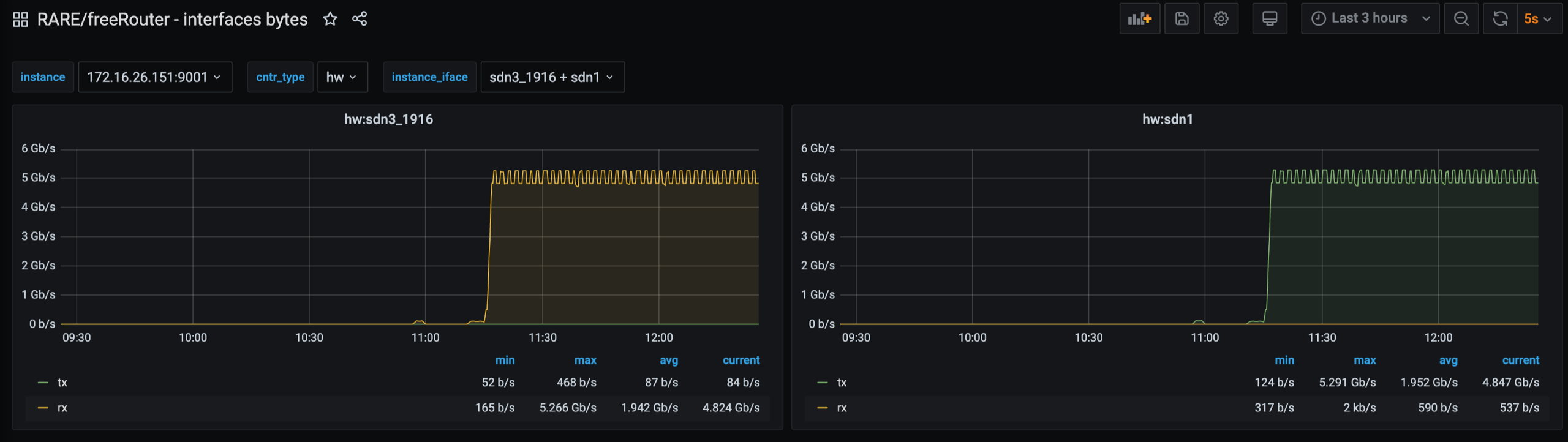

This is confirmed by FRA graphs from NMaaS:

--
