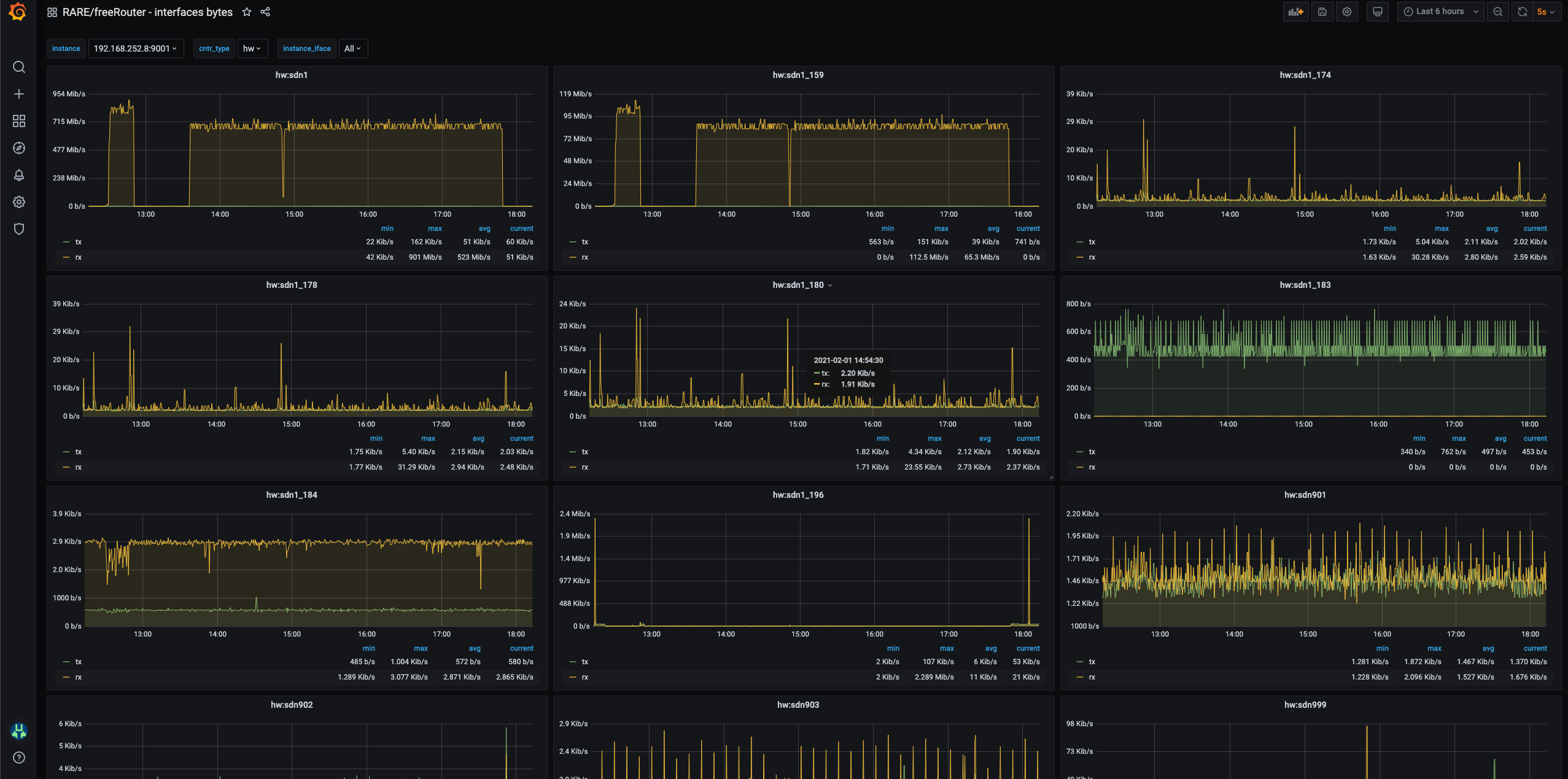

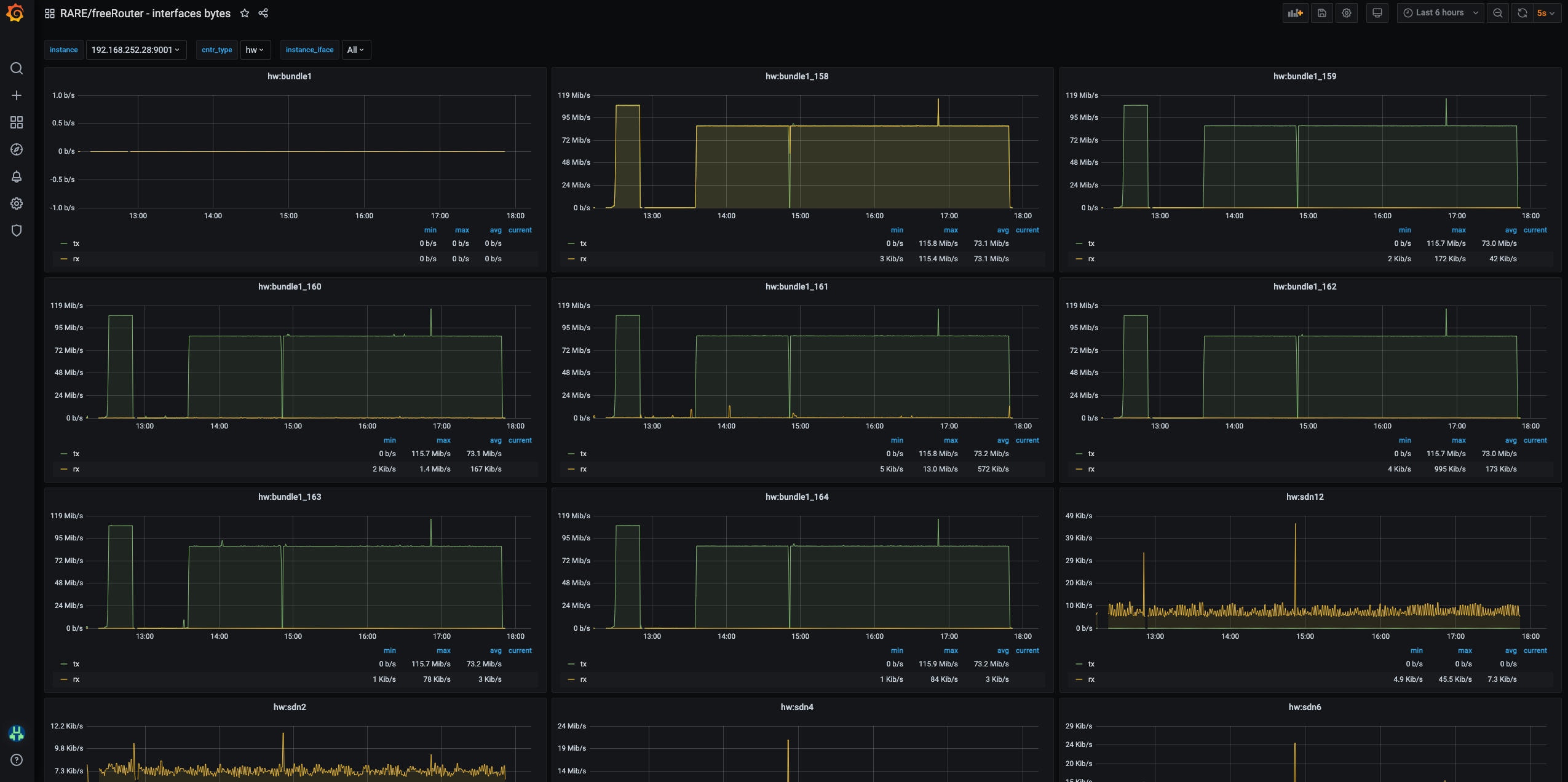

Some screenshots from NMaaS monitoring using VictoriaMetric TSDB.

À bientôt,
--  Frederic

Le 1 févr. 2021 à 17:45, mc36 <> a écrit :

hi,
just a quick follow-up as i let the iperf running at 80mbps so i just crossed the 1tb
receive and 100gb transmit to cpu (*) on all of my boxes who use rare/p4emu or mostly
rare/dpdk, and the replicator, the core, is the only rare/tofino guy... just a fun fact,
the lowest budget node is mediapc, a 50cm3 fanless 3yo brix gb-bace-3000 used 134 minutes
of it's celeron n3000 time to do achieve this with the libpcap packet engine...
another interesting fact that the bfd didn't went down during the experiment....
regards,
cs

*: i figured out that i'm punting up unknown mcast to be able to register in pim at the rp...



core#show interfaces hwsummary
interface    state  tx            rx            drop
bundle1      up     0             0             0
bundle1.158  up     155835306788  156107118311  0
bundle1.159  up     155576574044  53981103      0
bundle1.160  up     155635661917  201388859     0
bundle1.161  up     155821629908  812193305     0
bundle1.162  up     155582320733  233152722     0
bundle1.163  up     155787462368  4785391       0
bundle1.164  up     155993712296  5144032       0
sdn12        up     0             12359538      0
sdn2         up     0             14305827      0
sdn4         up     0             60410642      0
sdn6         up     0             20155345      0

core#


noti#show interfaces hwsummary
interface     state  tx            rx             drop
hairpin11     up     0             0              0
hairpin12     up     0             0              0
hairpin12.14  up     0             0              0
hairpin21     up     0             0              0
hairpin22     up     0             0              0
hairpin22.21  up     0             0              0
sdn1          up     150631008334  1046915410847  1035152917815
sdn1.158      up     149015163723  149786876586   0
sdn1.170      up     5369464       8428954        0
sdn1.171      up     4879289       4222127        0
sdn1.174      up     5020357       3929331        0
sdn1.175      up     4701933       30120704       0
sdn1.176      up     4530530       149756678      0
sdn2          up     1293930       0              0
sdn901        up     40055060      32133180       0
sdn999        up     466878187     150236827066   0

noti#

mediapc#show interfaces hwsummary
interface  state  tx         rx             drop
sdn1       up     116277173  1310611660188  1134839909610
sdn1.159   up     60882546   163580699471   0
sdn1.174   up     6768420    7748905        0
sdn1.178   up     8238565    8905750        0
sdn1.180   up     6771725    7684060        0
sdn1.183   up     1306702    0              0
sdn1.184   up     1804653    5939314        0
sdn1.196   up     31444234   41451808       0
sdn901     up     4691295    4732516        0
sdn902     up     6386666    6423518        0
sdn903     up     4876672    4911883        0
sdn999     up     1386986    1641251        0

mediapc#show interfaces summary
interface  state  tx         rx            drop
loopback0  up     7003451    0             0
loopback8  up     0          0             0
template1  admin  272        0             1222391
template2  admin  116        0             1222391
ethernet0  up     427646474  163209040000  0
sdn1       up     375985217  162941476737  215
sdn1.159   up     58820249   162232874728  831
sdn1.174   up     20430286   24434592      831
sdn1.178   up     21660044   24974687      831
sdn1.180   up     20492845   24423652      831
sdn1.183   up     4050178    0             695
sdn1.184   up     114585     15846930      0
sdn1.196   up     240151502  175228672     831
sdn901     up     14970101   15040781      665
sdn902     up     14940175   15034027      665
sdn903     up     14939488   15019851      665
sdn999     up     608726     155860        278

mediapc#
mediapc#show ipv4 bfd inet neighbor
interface  address     state  uptime    clients
sdn1.159   10.1.1.230  up     04:51:17  lsrp
sdn1.174   10.1.1.177  up     1d5h      lsrp
sdn1.178   10.1.1.157  up     07:53:15  lsrp
sdn1.180   10.1.1.150  up     1d5h      lsrp
sdn1.196   10.1.1.73   up     05:00:28  lsrp
sdn901     10.8.2.18   up     1d5h      pvrp
sdn902     10.8.2.22   up     1d5h      pvrp
sdn903     10.8.2.14   up     1d5h      pvrp

mediapc#



mc36@mediapc:~$ neofetch | grep Host
                             Host: GB-BACE-3000 1.x
mc36@mediapc:~$ ps aux | grep p4emu
root      804651 29.2  0.1 624316  4744 ?        Sl   09:51 134:15 /rtr/p4emu.bin 127.0.0.1 9080 0 veth0b veth1b veth2b veth3b veth4b enp2s0
mc36      982318  0.0  0.0   9704   720 pts/0    S+   17:31   0:00 grep p4emu
mc36@mediapc:~$


On 2/1/21 12:49 PM, mc36 wrote:

hi,
unbelieveable, but this code works in the real life!!!! :)
i loaded the new code to my home stordis and reverted a small portion
of my network from bier (which now goes by cpulabel feature) to plain
old pim (1).... the core box immediately went to distribution mode (2)
and it programmed to the hw, also my notebook noticed (3) via pim about
the needed stream... then started a stream from my notebook (4) and
observed counters (5) on my notebook, and found that the 130mbps of
traffic egressing the sdn1.158 subinterface and obviously counted
on the sdn1 main interface also... then the receive part is more
interesting, i have 940mbps rx on sdn1 which is mostly dropped,
and 130mbps rx on the sdn1.158... now compare it to the mroute (2)
from core and see that 130 * 7 (this many replicas are configured) = 940!!!!
that is, the core box replicates my multicast stream in hardware!!!!!
the same can be observed on core in (6) the hwsummary, whereas i had
9gb on bun1.158, and 9gb tx on every subinterface, so it really replicated!
also the hwsumm from my notebook (7) indicate the 63gb drop on sdn1 so it
really arrived here.... finally the switchport (8) of the stordis also have
a huge amount of mcast rxed....
regards,
cs
1:
core(cfg-if)#show config-differences
interface template1
 no ipv4 pim join-source loopback0
 no ipv4 pim bier-tunnel 28
 ipv4 multicast static-group 232.6.6.6 10.8.255.1
 exit
core(cfg-if)#
noti(cfg)#show config-differences
interface template1
 no ipv4 pim join-source loopback0
 no ipv4 pim bier-tunnel 110
 exit
noti(cfg)#
2:
core(cfg-if)#show ipv4 mroute inet
source      group      interface    upstream    targets
10.8.255.1Â  232.6.6.6Â  bundle1.158Â  10.1.1.233Â  loopback0 template1 bundle1.158 bundle1.159 bundle1.160 bundle1.161 bundle1.162 bundle1.163 bundle1.164
core(cfg-if)#
3:
noti(cfg)#show ipv4 mroute inet
source      group      interface  upstream    targets
10.8.255.1Â  232.6.6.6Â  sdn999Â Â Â Â  10.8.255.1Â  sdn1.158
noti(cfg)#
4:
mc36@noti:~$ iperf -u -c 232.6.6.6 -T 128 -b 100M -i1 -t9999
5:
noti(cfg)#show interfaces hwtraffic
interface     state  tx        rx        drop
hairpin11     up     0         0         0
hairpin12     up     0         0         0
hairpin12.14  up     0         0         0
hairpin21     up     0         0         0
hairpin22     up     0         0         0
hairpin22.21  up     0         0         0
sdn1          up     13532235  94683819  93660400
sdn1.158      up     13386149  13529135  0
sdn1.170      up     709       883       0
sdn1.171      up     577       283       0
sdn1.174      up     826       456       0
sdn1.175      up     617       251       0
sdn1.176      up     689       719       0
sdn2          up     0         0         0
sdn901        up     2750      1429      0
sdn999        up     2176      13489976  0
noti(cfg)#
6:
core(cfg-if)#show interfaces hwsummary
interface    state  tx          rx          drop
bundle1      up     0           0           0
bundle1.158  up     8974768051  8934623100  0
bundle1.159  up     8956997974  3413812     0
bundle1.160  up     8960428143  9674501     0
bundle1.161  up     8973865146  54862879    0
bundle1.162  up     8957181567  15587653    0
bundle1.163  up     8965954026  464373      0
bundle1.164  up     8983713126  569344      0
sdn12        up     0           1114288     0
sdn2         up     0           1299535     0
sdn4         up     0           900564      0
sdn6         up     0           1812658     0
core(cfg-if)#
7:
noti(cfg)#show interfaces hwsummary
interface     state  tx           rx           drop
hairpin11     up     0            0            0
hairpin12     up     0            0            0
hairpin12.14  up     0            0            0
hairpin21     up     0            0            0
hairpin22     up     0            0            0
hairpin22.21  up     0            0            0
sdn1          up     13057392511  64385390230  63198446748
sdn1.158      up     9044587565   9162675875   0
sdn1.170      up     52653820     18237843     0
sdn1.171      up     3032062      2666448      0
sdn1.174      up     3086540      2408920      0
sdn1.175      up     3821865069   188910177    0
sdn1.176      up     10578348     243701499    0
sdn2          up     790114       0            0
sdn901        up     25067677     19427454     2502
sdn999        up     412014029    13041826360  92312752
noti(cfg)#
8:
labor#show interface counters port-channel 7
Port:Â  Po7
Tx Collisions:Â Â Â Â Â Â Â Â Â  0
Tx Ucast:Â Â Â Â Â Â Â Â Â Â Â Â Â Â  88,449,261
Tx Mcast:Â Â Â Â Â Â Â Â Â Â Â Â Â Â  15,126,523
Tx Bcast:Â Â Â Â Â Â Â Â Â Â Â Â Â Â  77,154
Tx Jumbo:Â Â Â Â Â Â Â Â Â Â Â Â Â Â  8,353,874
Tx Pkts:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â  103,652,938
Tx Bytes:Â Â Â Â Â Â Â Â Â Â Â Â Â Â  45,290,174,152
Tx Errors:Â Â Â Â Â Â Â Â Â Â Â Â Â  0
Tx Discards:Â Â Â Â Â Â Â Â Â Â Â  0
Rx Ucast:Â Â Â Â Â Â Â Â Â Â Â Â Â Â  88,649,255
Rx Mcast:Â Â Â Â Â Â Â Â Â Â Â Â Â Â  58,437,586
Rx Bcast:Â Â Â Â Â Â Â Â Â Â Â Â Â Â  6,994
Rx Jumbo:Â Â Â Â Â Â Â Â Â Â Â Â Â Â  57,402,232
Rx Alignment:Â Â Â Â Â Â Â Â Â Â  0
Rx UnderSize:Â Â Â Â Â Â Â Â Â Â  0
Rx 64Pkts:Â Â Â Â Â Â Â Â Â Â Â Â Â  548,118
Rx 65-127Pkts:Â Â Â Â Â Â Â Â Â  54,235,928
Rx 128-255Pkts:Â Â Â Â Â Â Â Â  11,825,131
Rx 256-511Pkts:Â Â Â Â Â Â Â Â  4,180,215
Rx 512-1023Pkts:Â Â Â Â Â Â Â  1,394,053
Rx 1024to1518Pkts:Â Â Â Â Â  17,508,165
Rx Pkts:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â  147,093,835
Rx Bytes:Â Â Â Â Â Â Â Â Â Â Â Â Â Â  119,421,896,809
Rx Errors:Â Â Â Â Â Â Â Â Â Â Â Â Â  0
Rx Discards:Â Â Â Â Â Â Â Â Â Â Â  0
labor#
On 2/1/21 10:57 AM, mc36 wrote:

hi,
i just finished (1) the huge refactoring described in my previous mail!
please find attached the fresh test runs with all the dataplanes, the
p4 based ones now use both ingress and egress pipes which was a prerequisite
to continue adding nexthop based multicast features to these...
so for now, i'll do so by removing the 'not applicable' from p4
results the last some test runs....
regards,
cs


https://bitbucket.software.geant.org/projects/RARE/repos/rare/commits/05e54cb91a2f5b3ede7f0e0459109b81c689fe47

On 1/30/21 8:07 AM, mc36 wrote:

hi,

please find attached the latest test runs with bmv2...
no new features but the bmv2 p4 code got that huge [1]
refactoring that i described in the previous mail.
that is, the decapsulation & routing decision happens
in ingress and the encapsulation happens in egress.

now i'll proceed with the tofino code too, it'll be a
bit more tricky as that guy have completely separate
two stages with own parser, match-actions and deparser
too, whereas bmv2 share the all the metadata and headers
between the stages...

and after that, when everything passes again on tofino too,
i'll start adding the newest multicast feature to both p4
codes, that triggered this whole rework: the lsm edge&core...
(dpdk code already have it all, so at least i see it working:)

and when i'm done with the lsm, i'll proceed to bier (not i
the but but with [2] :), which could be a game-changer for
those who use multicast because it fully eliminates tree
building in the core elements for multicast, and as far as
i know, we'll be the first one who'll have it in hw...

regards,
cs

1: https://github.com/frederic-loui/RARE/commit/dfb3ff2f3d52dc58f6c38d2b2ae12ed74cc10302

2: https://tools.ietf.org/html/rfc8279

On 1/28/21 9:02 PM, mc36 wrote:

hi,
please find attached the fresh runs with dpdk.
news is the label switched multicast features arrived.
it means basically mldp p2mp, mldp mp2mp, rsvp-te p2mp,
pim/igmp-mldp interworking, mldp based mvpn and friends...

regarding the bmv2 and tofino dataplane, there was a long
conversation about it at the intel community (1), and finally
we concluded that we should move away from the current
ingress-pipe-only model and do the encapsulation
exclusively in the egress pipeline...
it'll free up some space in the ingress for more
simultaneous features (or bigger lookup tables)
and will provide us the flexibility needed for
the lsm. the tricky part here is that for pure
multicast, there is no nexthop involved in the
flooding, and as a quick hack, i replicated the
vlan-out table to the egress... but in case of lsm,
we'll need the nexthop rewrite info also because lsm
is basically unicasted on the link, but mostly i
want to get it also done cleanly so nothing left
but to move everything from nexthop to the egress...
regards,
cs

1: https://community.intel.com/t5/Intel-Connectivity-Research/ingress-vs-egress-processing/m-p/1249943#M2025
