- From: Gabriel Tetzner <>
- To: mc36 <>
- Cc:
- Subject: Re: [rare-dev] Exposing docker port on a vm with freeRouter
- Date: Tue, 16 Aug 2022 18:46:40 -0300
That Eth2 there, was the interface created from the docker network interface.
Em ter., 16 de ago. de 2022 às 18:38, mc36 <> escreveu:
could you please give us the following:

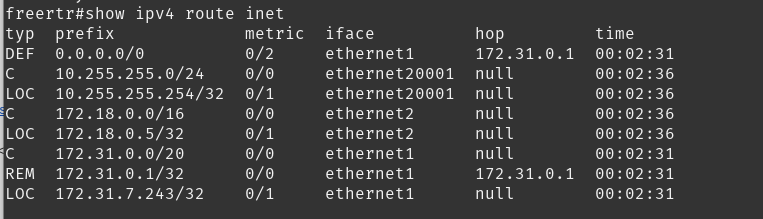

sho ipv4 route inet
sho ipv4 arp eth1
thanks,
cs
On 8/16/22 23:35, Gabriel Tetzner wrote:
> Hi,
>
> I used port 9080 from the host to 9090 from prometheus:
> image.png
>
> forwarder freerouter:
> server forwarder prom
> port 9080
> target vrf inet
> target interface ethernet1
> target address 172.31.7.243
> target port 9080
> interface ethernet1
> vrf inet
> exit
> !
>
> When I try to access http://18.230.37.188:9080/ <http://18.230.37.188:9080/> from the browser, it keeps loading and gives this memory error.
>
>
> Em ter., 16 de ago. de 2022 s 18:27, mc36 < <mailto:>> escreveu:
>
> hi,
> could you please share the relevant parts of your config?
> thanks,
> cs
>
> On 8/16/22 23:25, Gabriel Tetzner wrote:
> > Hi all,
> >
> > Following what Csaba recommended, freeRouter was installed on top of the docker interfaces, but it gives the following error:
> >
> > java.lang.OutOfMemoryError: unable to create native thread: possibly out of memory or process/resource limits reached at
> >
> java.lang.Thread.start0:Thread.java:-2/java.lang.Thread.start:Thread.java:1535/pipeConnectDoer.<init>:pipeConnect.java:75/pipeConnect.connect:pipeConnect.java:21/servForwarder.doConnStart:servForwarder.java:383/servForwarderDoer.run:servForwarder.java:404/java.lang.Thread.run:Thread.java:1589/
> >
> > What could this be?
> >
> > Em seg., 15 de ago. de 2022 s 18:18, Gabriel Tetzner < <mailto:>
> <mailto: <mailto:>>> escreveu:
> >
> > Hi,
> >
> > I will test that possibility, it really makes sense....
> >
> > Thanks Csaba.
> >
> > Em seg., 15 de ago. de 2022 s 18:05, mc36 < <mailto:> <mailto: <mailto:>>> escreveu:
> >
> > okkk, so as i see 172.31.32.29/32 <http://172.31.32.29/32> <http://172.31.32.29/32 <http://172.31.32.29/32>> is LOC, that is, freerouter got it from dhcp...
> >
> > so now, if you look at your forwarder, it's an infinite loop: you binded it to eth1:9090,
> > which is 172.31.32.29:9090 <http://172.31.32.29:9090> <http://172.31.32.29:9090 <http://172.31.32.29:9090>>, according to your screenshot... then you forwarded it to
> > 172.31.32.29:9090 <http://172.31.32.29:9090> <http://172.31.32.29:9090 <http://172.31.32.29:9090>>, which is itself, and the same port.. so it simply ran out of ram
> > regardless how much you gave it... :)
> >
> > instead, if you want to mix freerouter and docker, do install freerouter as the last,
> > and let freerouter take over the host's auto-created docker interfaces too...
> >
> > alternatively, you can re-trigger the physical interface detection by running the bottom
> > lines of the https://github.com/rare-freertr/freeRtr/blob/master/misc/service/c.sh <https://github.com/rare-freertr/freeRtr/blob/master/misc/service/c.sh>
> <https://github.com/rare-freertr/freeRtr/blob/master/misc/service/c.sh <https://github.com/rare-freertr/freeRtr/blob/master/misc/service/c.sh>> script...
> >
> > br,
> > cs
> >
> >
> > On 8/15/22 22:56, Gabriel Tetzner wrote:
> > > image.png
> > >
> > > Em seg., 15 de ago. de 2022 s 17:52, mc36 < <mailto:> <mailto: <mailto:>> <mailto: <mailto:> <mailto:
> <mailto:>>>> escreveu:
> > >
> > > what about show ipv4 route inet? does freerouter know about that 172.31.32.29 ?
> > >
> > > On 8/15/22 22:50, Gabriel Tetzner wrote:
> > > > Hi,
> > > >
> > > > sudo nano docker-compose:
> > > >
> > > > version: '3'
> > > > services:
> > > > prometheus:
> > > > image: prom/prometheus:latest
> > > > container_name: prometheus
> > > > restart: always
> > > > ports:
> > > > - 9090:9090
> > > > command:
> > > > - --config.file=/etc/prometheus/prometheus.yml
> > > > volumes:
> > > > - /etc/prometheus/prometheus.yml:/etc/prometheus/prometheus.yml:ro
> > > > - /etc/prometheus/alert.rules:/etc/prometheus/alert.rules:ro
> > > >
> > > > server forwarder prometheus:
> > > >
> > > > server forwarder prometheus
> > > > access-log
> > > > access-rate 5 5000
> > > > access-total 5
> > > > access-peer 5
> > > > port 9090
> > > > logging
> > > > target vrf inet
> > > > target interface ethernet1
> > > > target address 172.31.32.29
> > > > target port 9090
> > > > interface ethernet1
> > > > vrf inet
> > > > exit
> > > > !
> > > >
> > > >
> > > >
> > > > Em seg., 15 de ago. de 2022 s 17:45, mc36 < <mailto:> <mailto: <mailto:>> <mailto: <mailto:>
> <mailto: <mailto:>>> <mailto: <mailto:> <mailto: <mailto:>> <mailto: <mailto:>
> > <mailto: <mailto:>>>>> escreveu:
> > > >
> > > > hi,
> > > >
> > > > On 8/15/22 22:39, Gabriel Tetzner wrote:
> > > > > I think it is that way, since the public ip is associated with the freeRouter now, or is there another way to redirect the debian OS port
> (9090) to the
> > freeRouter so
> > > that it is
> > > > > accessible externally? Or how to do this?
> > > > >
> > > >
> > > > but in generally speaking, yeahh, the forwarder server is a way to do the work...
> > > > here is the test for it: http://sources.freertr.org/cfg/serv-forward.tst <http://sources.freertr.org/cfg/serv-forward.tst>
> <http://sources.freertr.org/cfg/serv-forward.tst <http://sources.freertr.org/cfg/serv-forward.tst>>
> > <http://sources.freertr.org/cfg/serv-forward.tst <http://sources.freertr.org/cfg/serv-forward.tst> <http://sources.freertr.org/cfg/serv-forward.tst
> <http://sources.freertr.org/cfg/serv-forward.tst>>>
> > > <http://sources.freertr.org/cfg/serv-forward.tst <http://sources.freertr.org/cfg/serv-forward.tst> <http://sources.freertr.org/cfg/serv-forward.tst
> <http://sources.freertr.org/cfg/serv-forward.tst>> <http://sources.freertr.org/cfg/serv-forward.tst <http://sources.freertr.org/cfg/serv-forward.tst>
> > <http://sources.freertr.org/cfg/serv-forward.tst <http://sources.freertr.org/cfg/serv-forward.tst>>>>
> > > >
> > > > > But I can't access the prometheus server externally, I tried to make the server forwarder work to redirect this port, but I lose
> access to ssh from
> > the vm.
> > > >
> > > > did you created a new forwarder or reused the one for the ssh?
> > > >
> > > > br,
> > > > cs
> > > >
> > >
> >
>
