[Gabriel Tetzner <>]

Hi Csaba,

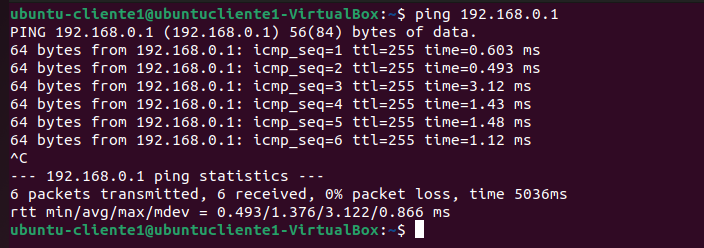

-if the ubuntu client can ping the 192,168.0.1?

Yes, it can ping 192.168.0.1

output:

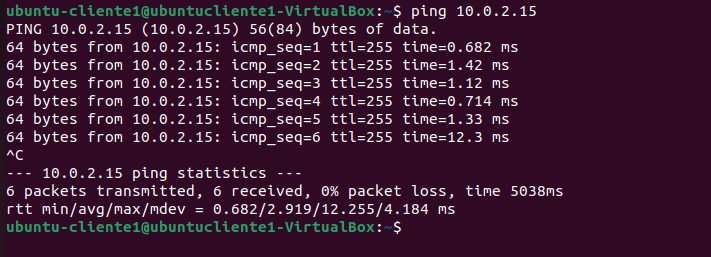

-if the ubuntu client can ping the 10.0.2.15?

Yes, it can ping 10.0.2.15

output:

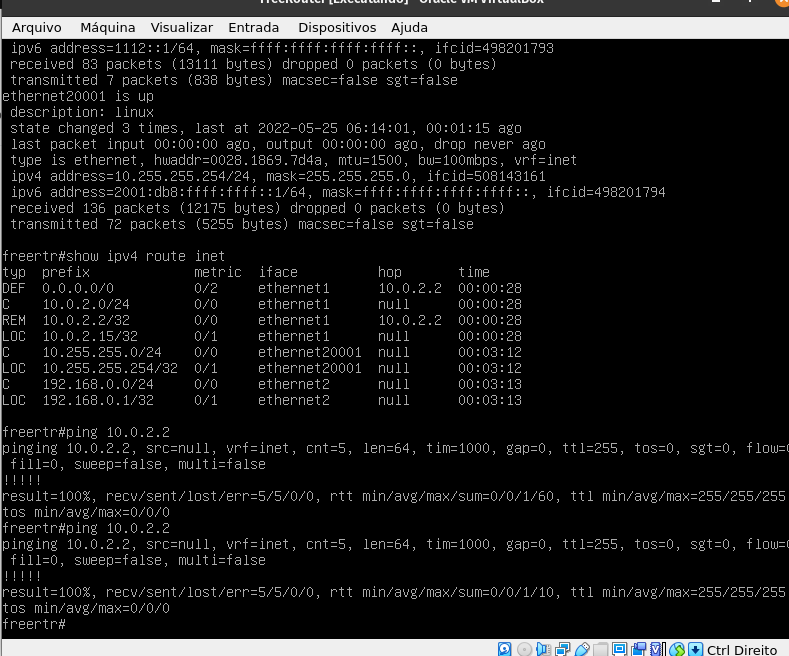

-if freerouter installed the default route: sho ipv4 rou inet

show ipv4 route inet - output:

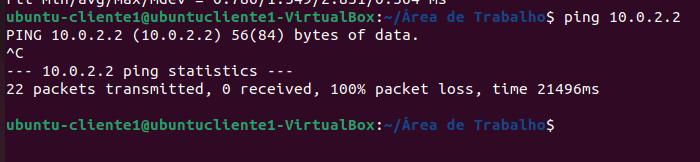

-if the client can ping the freerouter's default gw? (from the above output)

No, he no ping the freerouter default gw.

output:

I am pretty sure, that I have to point the route from 192.168.0.1 to 10.0.2.2, am I right?

Em qua., 25 de mai. de 2022 às 01:05, mc36 <> escreveu:

hi,
it should work with routed interfaces.... things to check:
-if the ubuntu client can ping the 192,168.0.1?
-if the ubuntu client can ping the 10.0.2.15?
-if freerouter installed the default route: sho ipv4 rou inet
-if the client can ping the freerouter's default gw? (from the above output)
br,
cs


On 5/25/22 01:33, Gabriel Tetzner wrote:
> Hi all,
>
> Question:
>
> I decided to test a different DHCP Server topology on FreeRouter.
>
> Topology (VMs):
>
>   * RARE/freeRtr - Debian 11
>   * 2 Clients - Ubuntu 21.04
>
> The network configuration, defined a NAT (WAN) to Internet and a Internal network (LAN).
> I got the client to receive the DHCP IP on the FreeRouter, but it is without external connectivity.
> I wanted to know if it is necessary to configure a routing policy for the Ethernet1 interface or is a bridge perhaps needed to perform such a routing function?
>
> Gateway: 192.168.0.1 (Internal network - Interface Ethernet2).
> Objective: Fetch connectivity via 10.0.2.15 (NAT - Ethernet1 interface).
>
> Configuration Server DHCP freeRtr:
>
> !
>
> server dhcp4 dhcp-server
>    pool 192.168.0.2 192.168.0.100
>    gateway 192.168.0.1
>    netmask 255.255.255.0
>    no dns-server
>    domain-name
>    interface ethernet2
>    vrf inet
>    exit
> !
>
> I need my DHCP to receive external connectivity, more details from the question on github:
> https://github.com/Tetzdesen/Experimentos-FreeRouter/tree/main/experiment-dhcp/experiment-two
> <https://github.com/Tetzdesen/Experimentos-FreeRouter/tree/main/experiment-dhcp/experiment-two>
>
>
>
