The mailing list for users of the eduroam Configuration Assistant Tool (CAT)

[Benjamin Mills <address@concealed>]

Hi Zubayr,

Looking at the output, it seems like your RADIUS server is still using the certificate for idp.smu.ca instead of your new one.

Kind Regards,

Benjamin Mills | Senior Network Engineer

University of Leeds

E: address@concealed

T: 0113 343 8252 or Call me on Teams

Need IT help? Visit the IT Website for self-help, tips and information, to tell us something is broken, or request equipment or software. You can also chat with Falco, our 24/7 chatbot. Follow us on Twitter @ITServicesUoL for service updates and helpful tips.

---

From: address@concealed <address@concealed> on behalf of Zubayr Domun <address@concealed>
Sent: Friday, May 8, 2026 1:58:20 PM
To: Stefan Winter <address@concealed>; address@concealed <address@concealed>
Cc: Art Kennedy <address@concealed>; Mredul Ghosh <address@concealed>
Subject: Re: [[cat-users]] issue with new realm config



CAUTION: External Message. Use caution opening links and attachments.

Hey,

We had this configured already and getting an error, which is why we are contacting you.

We are trying to make a new realm with id.smu.ca(not idp) as shown in the screenshot but the connectivity test on that realm gives us an error for idp.smu.ca even though we specified the server name to be id.smu.ca only.

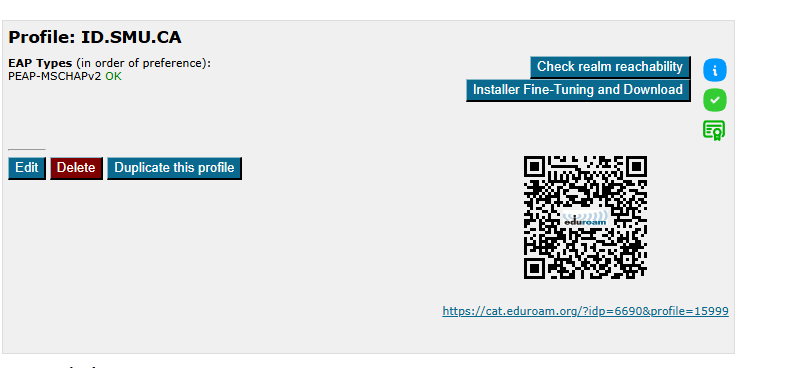

New realm:

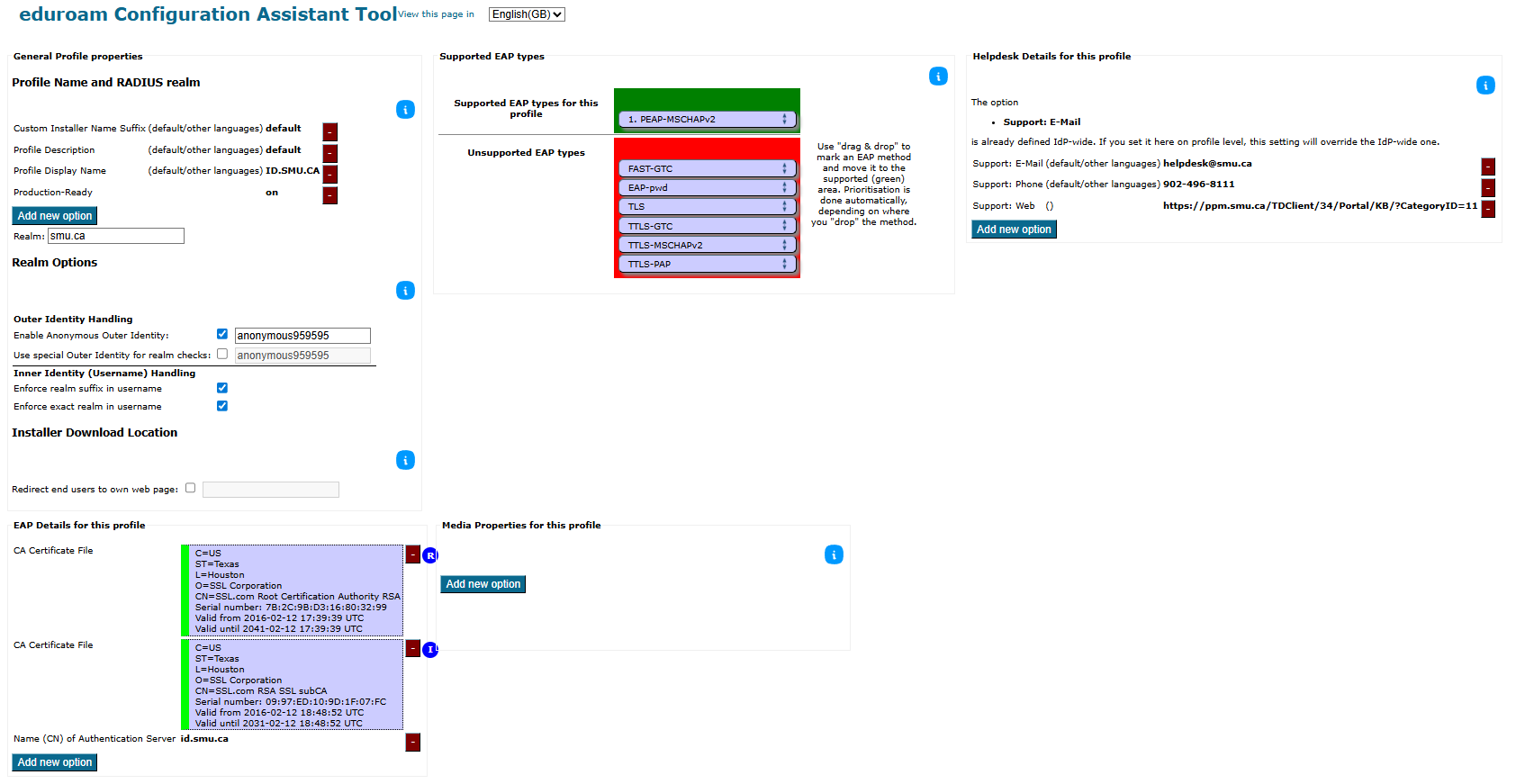

New realm settings:

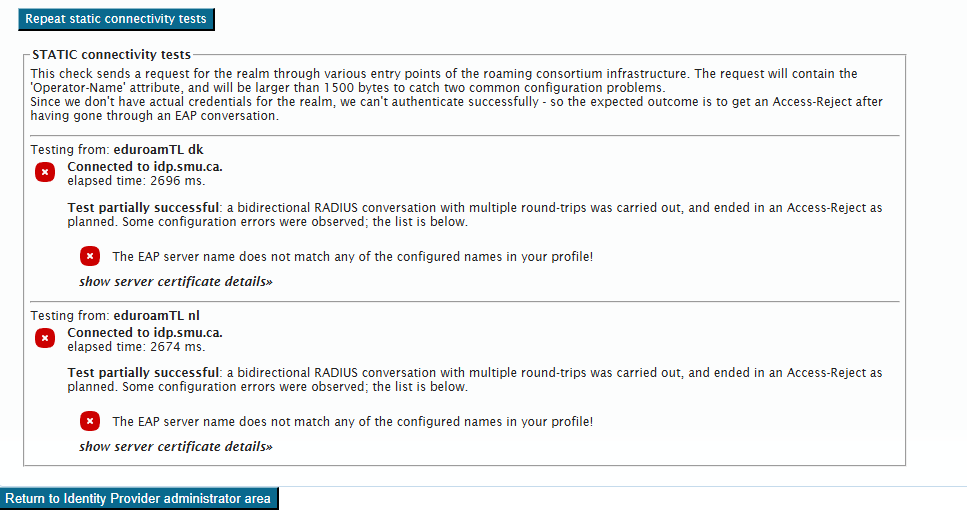

New realm connectivity test:

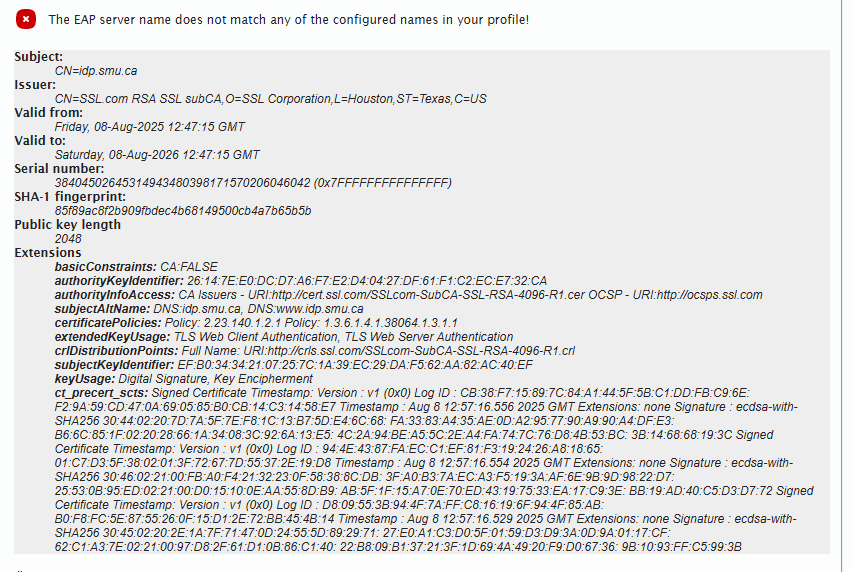

It shows it is still pointing to idp.smu.ca(not our new id.smu.ca cert):

Are we missing anything? Thanks!

Kind regards,

Zubayr Domun
Network Analyst | Saint Mary's University
1+ 902 989 0577  | address@concealed

---

From: Stefan Winter <address@concealed>
Sent: Friday, May 8, 2026 9:42 AM
To: Zubayr Domun <address@concealed>; address@concealed <address@concealed>
Cc: Art Kennedy <address@concealed>; Mredul Ghosh <address@concealed>
Subject: Re: [[cat-users]] issue with new realm config



Hello,

you've configured the new name, good.

And all is well regarding your RADIUS uplink, see attached screenshot I just made with the connectivity check module.

Can you confirm that your setup is now good?

Stefan

On 5/8/26 14:37, Zubayr Domun (via cat-users Mailing List) wrote:

Hello,

Here's what we have, please point us to someone who is able to troubleshoot this for us, thanks!

If we could do it today, that would be great! Available till 5pm ADT.

Kind regards,

Zubayr Domun
Network Analyst | Saint Mary's University
1+ 902 989 0577  | address@concealed

---

From: Stefan Winter <address@concealed>
Sent: Friday, May 8, 2026 5:50 AM
To: Zubayr Domun <address@concealed>; address@concealed <address@concealed>
Cc: Art Kennedy <address@concealed>; Mredul Ghosh <address@concealed>
Subject: Re: [[cat-users]] issue with new realm config



Hello,

well, the server name is one of the parameters you supply in the CAT Admin UI. You obviously have access to the UI and changed the certificates. Changing the server name is literally a pixel away from that.

Greetings,

Stefan Winter

On 5/7/26 14:31, Zubayr Domun (via cat-users Mailing List) wrote:

Hello,

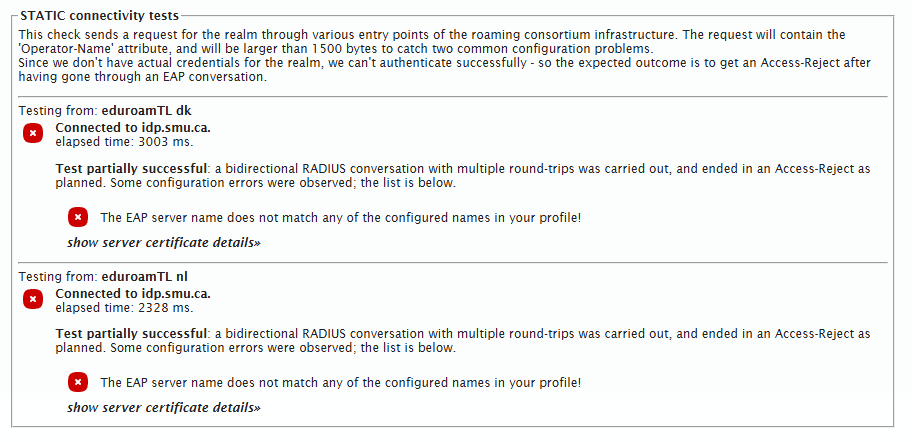

This is the error we get:

We are switching our cert to id.smu.ca - we uploaded that to the new realm.

Kind regards,

Zubayr Domun
Network Analyst | Saint Mary's University
1+ 902 989 0577  | address@concealed

---

From: Stefan Winter <address@concealed>
Sent: Thursday, May 7, 2026 3:34 AM
To: Zubayr Domun <address@concealed>; address@concealed <address@concealed>
Subject: Re: [[cat-users]] issue with new realm config



Hello,

the message didn't read specifically targeted for eduroam CAT; and there is no phone support for eduroam CAT, only this mailing list.

Also, you could avoid moderation by subscribing to the mailing list, as noted in the first sentence of the moderation rejection message.

Anyway: is the error you get in the eduroam CAT admin UI? If so, what is the error you are getting?

Greetings,

Stefan Winter

On 5/6/26 15:40, Zubayr Domun (via cat-users Mailing List) wrote:

Hi,

Not sure why we got the rejection reply, this is for Saint Mary's University in Halifax Nova Scotia and we are doing some configuration on the eduroam portal but need some support

Kind regards,

Zubayr Domun
Network Analyst | Saint Mary's University
1+ 902 989 0577  | address@concealed

---

From: Zubayr Domun
Sent: Wednesday, May 6, 2026 9:33 AM
To: address@concealed <address@concealed>
Subject: issue with new realm config



Hello,

We are trying to make a new realm since we changed our auth server ip and cert but we are getting errors while doing it. Would appreciate if a tech could hop on a call with us and help us configure this. Thanks!

Kind regards,

Zubayr Domun
Network Analyst | Saint Mary's University
1+ 902 989 0577  | address@concealed
