Hello everyone,

I am administrator for the IdP of Hochschule für Wirtschaft und Gesellschaft Ludwigshafen (HWG LU) . I’m writing here because I encounter a strange issue when trying to log in to cat.eduroam.org — maybe someone has seen it before or can give advice.

What works:



• Login at other SPs (e.g. emp.eduroam.de) works flawlessly — our IdP uses a valid SAML pairwise-id plus correct eduroam entitlement; authentication and attribute release succeed.
• Our IdP configuration has been reviewed multiple times: we generate a scoped pairwise-id (with domain-based scope), using a standard SAML2ScopedString.



What fails / what looks strange at cat.eduroam.org:

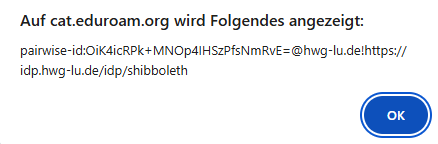

• On cat.eduroam.org the displayed pairwise-id looks unusual: it contains a suffix with !https://…, i.e. after the scope or IdP-EntityID a URL appears.

• After login, the expected attributes (e.g. eduPersonEntitlement, displayName, mail, …) are not shown, and our organization is not recognized / not listed.



What we’ve checked:

• Our pairwise-id generation is spec-compliant: scoped attribute, domain as scope, no extraneous attributes, no persistentID/legacy-ID released.
• Login to other non-CAT SPs works — so IdP seems to operate correctly and releases correct identifiers and attributes.
• Despite that, the login to cat.eduroam.org uses a different-looking pairwise-id (with URL suffix), though we have disabled all URL-based persistentID or metadata-related identifiers in our configuration.

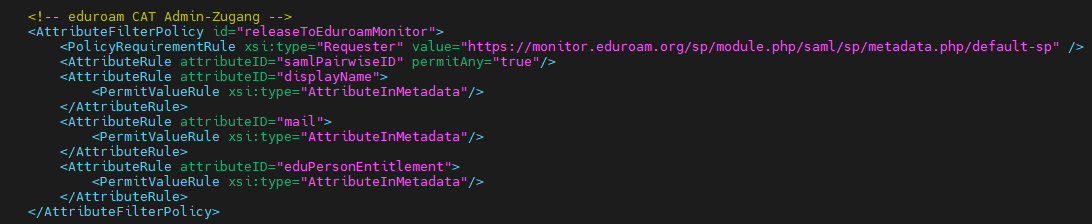

Here the attribute-filter.xml from our IDP:

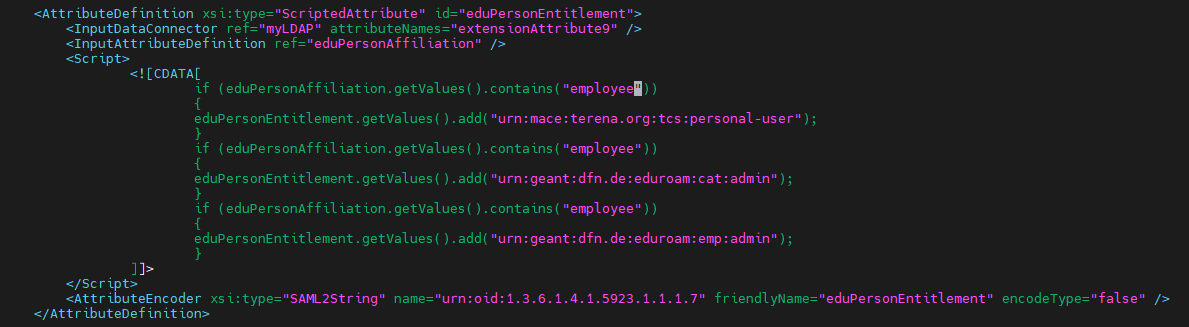

Here the eduPersonEntitlement-attribute:

Thank you very much for any pointers.

Best regards,





Erik Stobbe
