Re: [[cat-users]] Problems with eduroam script for Ubuntu
- From: Joel Garcia <joel.garcia AT devoteam.com>
- To: cat-users AT lists.geant.org
- Cc: es.dvt.bc.bcam AT devoteam.com, it AT bcamath.org
- Subject: Re: [[cat-users]] Problems with eduroam script for Ubuntu
- Date: Wed, 27 Nov 2024 16:38:51 +0100
The script is attached to this email:
On Wed, 27 Nov 2024 at 16:37, Joel Garcia <joel.garcia AT devoteam.com> wrote:

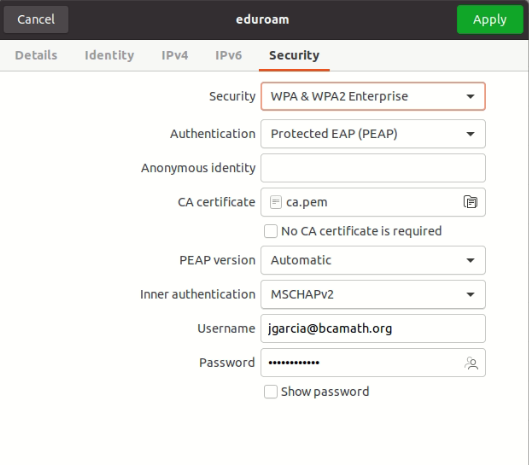

Hello,I am Joel Garcia from Devoteam, I provide IT support to Basque Center for Applied Mathematics, in Spain. I have CCed their IT team in this email (it AT bcamath.org)I have been in contact with RedIRIS support, and while we resolved several issues, there is one they could not assist with, so they redirected me to you.The problem is with the Eduroam script for Linux, more specifically, with Ubuntu 20.04 . After installing eduroam with the python script (attached to this email) it gives an error when trying to connect to Eduroam.In our Freeradius is a TLS generic fatal error.The weird part is that if I go into the Wifi settings -> Security -> Ca certificate, click it and then confirm without selecting any other certificate, it suddenly works!!I have updated everything in that Ubuntu, deleted and reinstalled Eduroam, rebooted... and the script still only works correctly after manually selecting the same certificate that the script installs.Eduroam works in other devices, and the script only uses the self signed CA that signed the certificate of our FreeradiusCould you help me with this? Have you encountered this before?Regards
--
Joel García Escribano Cybersecurity Consultant Cybertrust Devoteam joel.garcia AT devoteam.com
--
| Joel García Escribano | |
| Cybersecurity Consultant | |
| Cybertrust Devoteam | |
| joel.garcia AT devoteam.com | |
#!/usr/bin/env python3
"""
* **************************************************************************
* Contributions to this work were made on behalf of the GÉANT project,
* a project that has received funding from the European Union’s Framework
* Programme 7 under Grant Agreements No. 238875 (GN3)
* and No. 605243 (GN3plus), Horizon 2020 research and innovation programme
* under Grant Agreements No. 691567 (GN4-1) and No. 731122 (GN4-2).
* On behalf of the aforementioned projects, GEANT Association is
* the sole owner of the copyright in all material which was developed
* by a member of the GÉANT project.
* GÉANT Vereniging (Association) is registered with the Chamber of
* Commerce in Amsterdam with registration number 40535155 and operates
* in the UK as a branch of GÉANT Vereniging.
*
* Registered office: Hoekenrode 3, 1102BR Amsterdam, The Netherlands.
* UK branch address: City House, 126-130 Hills Road, Cambridge CB2 1PQ, UK
*
* License: see the web/copyright.inc.php file in the file structure or
* <base_url>/copyright.php after deploying the software
Authors:
Tomasz Wolniewicz <twoln AT umk.pl>
Michał Gasewicz <genn AT umk.pl> (Network Manager support)
Contributors:
Steffen Klemer https://github.com/sklemer1
ikreb7 https://github.com/ikreb7
Dimitri Papadopoulos Orfanos https://github.com/DimitriPapadopoulos
sdasda7777 https://github.com/sdasda7777
Many thanks for multiple code fixes, feature ideas, styling remarks
much of the code provided by them in the form of pull requests
has been incorporated into the final form of this script.
This script is the main body of the CAT Linux installer.
In the generation process configuration settings are added
as well as messages which are getting translated into the language
selected by the user.
The script runs under python3.
"""
import argparse
import base64
import getpass
import os
import platform
import re
import subprocess
import sys
import uuid
from shutil import copyfile
from typing import List, Type, Union
NM_AVAILABLE = True
CRYPTO_AVAILABLE = True
DEBUG_ON = False
parser = argparse.ArgumentParser(description='eduroam linux installer.')
parser.add_argument('--debug', '-d', action='store_true', dest='debug',
default=False, help='set debug flag')
parser.add_argument('--username', '-u', action='store', dest='username',
help='set username')
parser.add_argument('--password', '-p', action='store', dest='password',
help='set text_mode flag')
parser.add_argument('--silent', '-s', action='store_true', dest='silent',
help='set silent flag')
parser.add_argument('--pfxfile', action='store', dest='pfx_file',
help='set path to user certificate file')
parser.add_argument("--wpa_conf", action='store_true', dest='wpa_conf',
help='generate wpa_supplicant config file without configuring the system')
ARGS = parser.parse_args()
if ARGS.debug:
DEBUG_ON = True
print("Running debug mode")
def debug(msg) -> None:
"""Print debugging messages to stdout"""
if not DEBUG_ON:
return
else:
print("DEBUG:" + str(msg))
def byte_to_string(barray: List) -> str:
"""conversion utility"""
return "".join([chr(x) for x in barray])
debug(sys.version_info.major)
try:
import dbus
except ImportError:
debug("Cannot import the dbus module")
NM_AVAILABLE = False
try:
from OpenSSL import crypto
except (ImportError, AttributeError): # AttributeError sometimes thrown by old/broken OpenSSL versions
CRYPTO_AVAILABLE = False
def detect_desktop_environment() -> str:
"""
Detect what desktop type is used. This method is prepared for
possible future use with password encryption on supported distros
the function below was partially copied from
https://ubuntuforums.org/showthread.php?t=1139057
"""
desktop_environment = 'generic'
if os.environ.get('KDE_FULL_SESSION') == 'true':
desktop_environment = 'kde'
elif os.environ.get('GNOME_DESKTOP_SESSION_ID'):
desktop_environment = 'gnome'
else:
try:
shell_command = subprocess.Popen(['xprop', '-root',
'_DT_SAVE_MODE'],
stdout=subprocess.PIPE,
stderr=subprocess.PIPE)
out, _ = shell_command.communicate()
info = out.decode('utf-8').strip()
except (OSError, RuntimeError):
pass
else:
if ' = "xfce4"' in info:
desktop_environment = 'xfce'
return desktop_environment
def get_system() -> List:
"""
Detect Linux platform. Not used at this stage.
It is meant to enable password encryption in distros
that can handle this well.
"""
system = platform.system_alias(
platform.system(),
platform.release(),
platform.version()
)
return [system, detect_desktop_environment()]
def get_config_path() -> str:
"""
Return XDG_CONFIG_HOME path if exists otherwise $HOME/.config
"""
xdg_config_home_path = os.environ.get('XDG_CONFIG_HOME')
if not xdg_config_home_path:
home_path = os.environ.get('HOME')
return '{}/.config'.format(home_path)
return xdg_config_home_path
def run_installer() -> None:
"""
This is the main installer part. It tests for NM availability
gets user credentials and starts a proper installer.
"""
global ARGS
global NM_AVAILABLE
username = ''
password = ''
silent = False
pfx_file = ''
wpa_conf = False
if ARGS.username:
username = ARGS.username
if ARGS.password:
password = ARGS.password
if ARGS.silent:
silent = ARGS.silent
if ARGS.pfx_file:
pfx_file = ARGS.pfx_file
if ARGS.wpa_conf:
wpa_conf = ARGS.wpa_conf
debug(get_system())
debug("Calling InstallerData")
installer_data = InstallerData(silent=silent, username=username,
password=password, pfx_file=pfx_file)
if wpa_conf:
NM_AVAILABLE = False
# test dbus connection
if NM_AVAILABLE:
config_tool = CatNMConfigTool()
if config_tool.connect_to_nm() is None:
NM_AVAILABLE = False
if not NM_AVAILABLE and not wpa_conf:
# no dbus so ask if the user will want wpa_supplicant config
if installer_data.ask(Messages.save_wpa_conf, Messages.cont, 1):
sys.exit(1)
installer_data.get_user_cred()
installer_data.save_ca()
if NM_AVAILABLE:
config_tool.add_connections(installer_data)
else:
wpa_config = WpaConf()
wpa_config.create_wpa_conf(Config.ssids, installer_data)
installer_data.show_info(Messages.installation_finished)
class Messages:
"""
These are initial definitions of messages, but they will be
overridden with translated strings.
"""
quit = "Really quit?"
credentials_prompt = "Please, enter your credentials:"
username_prompt = "enter your userid"
enter_password = "enter password"
enter_import_password = "enter your import password"
incorrect_password = "incorrect password"
repeat_password = "repeat your password"
passwords_differ = "passwords do not match"
installation_finished = "Installation successful"
cat_dir_exists = "Directory {} exists; some of its files may be " \
"overwritten."
cont = "Continue?"
nm_not_supported = "This NetworkManager version is not supported"
cert_error = "Certificate file not found, looks like a CAT error"
unknown_version = "Unknown version"
dbus_error = "DBus connection problem, a sudo might help"
ok = "OK"
yes = "Y"
nay = "N"
p12_filter = "personal certificate file (p12 or pfx)"
all_filter = "All files"
p12_title = "personal certificate file (p12 or pfx)"
save_wpa_conf = "NetworkManager configuration failed. " \
"Ensure you have the dbus-python package for your distro installed on your system. " \
"We may generate a wpa_supplicant configuration file " \
"if you wish. Be warned that your connection password will be saved " \
"in this file as clear text."
save_wpa_confirm = "Write the file"
wrongUsernameFormat = "Error: Your username must be of the form " \
"'xxx@institutionID' e.g. 'john AT example.net'!"
wrong_realm = "Error: your username must be in the form of 'xxx@{}'. " \
"Please enter the username in the correct format."
wrong_realm_suffix = "Error: your username must be in the form of " \
"'xxx@institutionID' and end with '{}'. Please enter the username " \
"in the correct format."
user_cert_missing = "personal certificate file not found"
# "File %s exists; it will be overwritten."
# "Output written to %s"
class Config:
"""
This is used to prepare settings during installer generation.
"""
instname = ""
profilename = ""
url = ""
email = ""
title = "eduroam CAT"
servers = []
ssids = []
del_ssids = []
eap_outer = ''
eap_inner = ''
use_other_tls_id = False
server_match = ''
anonymous_identity = ''
CA = ""
init_info = ""
init_confirmation = ""
tou = ""
sb_user_file = ""
verify_user_realm_input = False
user_realm = ""
hint_user_input = False
class InstallerData:
"""
General user interaction handling, supports zenity, KDialog, yad and
standard command-line interface
"""
def __init__(self, silent: bool = False, username: str = '',
password: str = '', pfx_file: str = '') -> None:
self.graphics = ''
self.username = username
self.password = password
self.silent = silent
self.pfx_file = pfx_file
debug("starting constructor")
if silent:
self.graphics = 'tty'
else:
self.__get_graphics_support()
self.show_info(Config.init_info.format(Config.instname,
Config.email, Config.url))
if self.ask(Config.init_confirmation.format(Config.instname,
Config.profilename),
Messages.cont, 1):
sys.exit(1)
if Config.tou != '':
if self.ask(Config.tou, Messages.cont, 1):
sys.exit(1)
if os.path.exists(get_config_path() + '/cat_installer'):
if self.ask(Messages.cat_dir_exists.format(
get_config_path() + '/cat_installer'),
Messages.cont, 1):
sys.exit(1)
else:
os.mkdir(get_config_path() + '/cat_installer', 0o700)
@staticmethod
def save_ca() -> None:
"""
Save CA certificate to cat_installer directory
(create directory if needed)
"""
certfile = get_config_path() + '/cat_installer/ca.pem'
debug("saving cert")
with open(certfile, 'w') as cert:
cert.write(Config.CA + "\n")
def ask(self, question: str, prompt: str = '', default: bool = None) -> int:
"""
Prompt user for a Y/N reply, possibly supplying a default answer
"""
if self.silent:
return 0
if self.graphics == 'tty':
yes = Messages.yes[:1].upper()
nay = Messages.nay[:1].upper()
print("\n-------\n" + question + "\n")
while True:
tmp = prompt + " (" + Messages.yes + "/" + Messages.nay + ") "
if default == 1:
tmp += "[" + yes + "]"
elif default == 0:
tmp += "[" + nay + "]"
inp = input(tmp)
if inp == '':
if default == 1:
return 0
if default == 0:
return 1
i = inp[:1].upper()
if i == yes:
return 0
if i == nay:
return 1
elif self.graphics == 'tkinter':
from tkinter import messagebox
return 0 if messagebox.askyesno(Config.title, question + "\n\n" + prompt) else 1
else:
command = []
if self.graphics == "zenity":
command = ['zenity', '--title=' + Config.title, '--width=500',
'--question', '--text=' + question + "\n\n" + prompt]
elif self.graphics == 'kdialog':
command = ['kdialog', '--yesno', question + "\n\n" + prompt,
'--title=' + Config.title]
elif self.graphics == 'yad':
command = ['yad', '--image="dialog-question"',
'--button=gtk-yes:0',
'--button=gtk-no:1',
'--width=500',
'--wrap',
'--text=' + question + "\n\n" + prompt,
'--title=' + Config.title]
returncode = subprocess.call(command, stderr=subprocess.DEVNULL)
return returncode
def show_info(self, data: str) -> None:
"""
Show a piece of information
"""
if self.silent:
return
if self.graphics == 'tty':
print(data)
elif self.graphics == 'tkinter':
from tkinter import messagebox
messagebox.showinfo(Config.title, data)
else:
if self.graphics == "zenity":
command = ['zenity', '--info', '--width=500', '--text=' + data]
elif self.graphics == "kdialog":
command = ['kdialog', '--msgbox', data, '--title=' + Config.title]
elif self.graphics == "yad":
command = ['yad', '--button=OK', '--width=500', '--text=' + data]
else:
sys.exit(1)
subprocess.call(command, stderr=subprocess.DEVNULL)
def confirm_exit(self) -> None:
"""
Confirm exit from installer
"""
ret = self.ask(Messages.quit)
if ret == 0:
sys.exit(1)
def alert(self, text: str) -> None:
"""Generate alert message"""
if self.silent:
return
if self.graphics == 'tty':
print(text)
elif self.graphics == 'tkinter':
from tkinter import messagebox
messagebox.showwarning(Config.title, text)
else:
if self.graphics == 'zenity':
command = ['zenity', '--warning', '--text=' + text]
elif self.graphics == "kdialog":
command = ['kdialog', '--sorry', text, '--title=' + Config.title]
elif self.graphics == "yad":
command = ['yad', '--text=' + text]
else:
sys.exit(1)
subprocess.call(command, stderr=subprocess.DEVNULL)
def prompt_nonempty_string(self, show: int, prompt: str, val: str = '') -> str:
"""
Prompt user for input
"""
if self.graphics == 'tty':
if show == 0:
while True:
inp = str(getpass.getpass(prompt + ": "))
output = inp.strip()
if output != '':
return output
while True:
inp = input(prompt + ": ")
output = inp.strip()
if output != '':
return output
elif self.graphics == 'tkinter':
from tkinter import simpledialog
simpledialog.askstring(Config.title, prompt,
initialvalue=val,
show="*" if show == 0 else "")
else:
command = []
if self.graphics == 'zenity':
if val == '':
default_val = ''
else:
default_val = '--entry-text=' + val
if show == 0:
hide_text = '--hide-text'
else:
hide_text = ''
command = ['zenity', '--entry', hide_text, default_val,
'--width=500', '--text=' + prompt]
elif self.graphics == 'kdialog':
if show == 0:
hide_text = '--password'
else:
hide_text = '--inputbox'
command = ['kdialog', hide_text, prompt, '--title=' + Config.title]
elif self.graphics == 'yad':
if show == 0:
hide_text = ':H'
else:
hide_text = ''
command = ['yad', '--form', '--field=' + hide_text,
'--text=' + prompt, val]
output = ''
while not output:
shell_command = subprocess.Popen(command, stdout=subprocess.PIPE,
stderr=subprocess.PIPE)
out, _ = shell_command.communicate()
output = out.decode('utf-8')
if self.graphics == 'yad':
output = output[:-2]
output = output.strip()
if shell_command.returncode == 1:
self.confirm_exit()
return output
def __get_username_password_atomic(self) -> None:
"""
use single form to get username, password and password confirmation
"""
output_fields_separator = "\n\n\n\n\n"
while True:
password = "a"
password1 = "b"
if self.graphics == 'tkinter':
import tkinter as tk
root = tk.Tk()
root.title(Config.title)
# desc_label = tk.Label(root, text=Messages.credentials_prompt)
# desc_label.grid(row=0, column=0, columnspan=2, sticky=tk.W)
username_label = tk.Label(root, text=Messages.username_prompt)
username_label.grid(row=1, column=0, sticky=tk.W)
username_entry = tk.Entry(root, textvariable=tk.StringVar(root, value=self.username))
username_entry.grid(row=1, column=1)
password_label = tk.Label(root, text=Messages.enter_password)
password_label.grid(row=2, column=0, sticky=tk.W)
password_entry = tk.Entry(root, show="*")
password_entry.grid(row=2, column=1)
password1_label = tk.Label(root, text=Messages.repeat_password)
password1_label.grid(row=3, column=0, sticky=tk.W)
password1_entry = tk.Entry(root, show="*")
password1_entry.grid(row=3, column=1)
def submit(installer):
def inner():
nonlocal password, password1
(installer.username, password, password1) = (username_entry.get(), password_entry.get(), password1_entry.get())
root.destroy()
return inner
login_button = tk.Button(root, text=Messages.ok, command=submit(self))
login_button.grid(row=4, column=0, columnspan=2)
root.mainloop()
else:
if self.graphics == 'zenity':
command = ['zenity', '--forms', '--width=500',
f"--title={Config.title}",
# f"--text={Messages.credentials_prompt}",
f"--add-entry={Messages.username_prompt}",
f"--add-password={Messages.enter_password}",
f"--add-password={Messages.repeat_password}",
"--separator", output_fields_separator]
elif self.graphics == 'yad':
command = ['yad', '--form',
f"--title={Config.title}",
# f"--text={Messages.credentials_prompt}",
f"--field={Messages.username_prompt}", self.username,
f"--field={Messages.enter_password}:H",
f"--field={Messages.repeat_password}:H",
"--separator", output_fields_separator]
output = ''
while not output:
shell_command = subprocess.Popen(command, stdout=subprocess.PIPE,
stderr=subprocess.PIPE)
out, _ = shell_command.communicate()
output = out.decode('utf-8')
if self.graphics == 'yad':
output = output[:-(len(output_fields_separator)+1)]
output = output.strip()
if shell_command.returncode == 1:
self.confirm_exit()
if self.graphics in ('zenity', 'yad'):
self.username, password, password1 = output.split(output_fields_separator)
if not self.__validate_user_name():
continue
if password != password1:
self.alert(Messages.passwords_differ)
continue
self.password = password
break
def get_user_cred(self) -> None:
"""
Get user credentials both username/password and personal certificate
based
"""
if Config.eap_outer in ('PEAP', 'TTLS'):
self.__get_username_password()
elif Config.eap_outer == 'TLS':
self.__get_p12_cred()
def __get_username_password(self) -> None:
"""
read user password and set the password property
do nothing if silent mode is set
"""
if self.silent:
return
elif self.graphics in ('tkinter', 'zenity', 'yad'):
self.__get_username_password_atomic()
else:
password = "a"
password1 = "b"
if self.username:
user_prompt = self.username
elif Config.hint_user_input:
user_prompt = '@' + Config.user_realm
else:
user_prompt = ''
while True:
self.username = self.prompt_nonempty_string(
1, Messages.username_prompt, user_prompt)
if self.__validate_user_name():
break
while password != password1:
password = self.prompt_nonempty_string(
0, Messages.enter_password)
password1 = self.prompt_nonempty_string(
0, Messages.repeat_password)
if password != password1:
self.alert(Messages.passwords_differ)
self.password = password
def __check_graphics(self, command) -> bool:
shell_command = subprocess.Popen(['which', command],
stdout=subprocess.PIPE,
stderr=subprocess.PIPE)
shell_command.wait()
if shell_command.returncode == 0:
self.graphics = command
return True
else:
return False
def __get_graphics_support(self) -> None:
if os.environ.get('DISPLAY') is not None:
try:
import tkinter
self.graphics = 'tkinter'
return
except ModuleNotFoundError:
pass
for cmd in ('yad', 'zenity', 'kdialog'):
if self.__check_graphics(cmd):
return
self.graphics = 'tty'
def __process_p12(self) -> bool:
debug('process_p12')
pfx_file = get_config_path() + '/cat_installer/user.p12'
if CRYPTO_AVAILABLE:
debug("using crypto")
try:
p12 = crypto.load_pkcs12(open(pfx_file, 'rb').read(),
self.password)
except crypto.Error as error:
debug("Incorrect password ({}).".format(error))
return False
else:
if Config.use_other_tls_id:
return True
try:
self.username = p12.get_certificate(). \
get_subject().commonName
except crypto.Error:
self.username = p12.get_certificate().\
get_subject().emailAddress
return True
else:
debug("using openssl")
command = ['openssl', 'pkcs12', '-in', pfx_file, '-passin',
'pass:' + self.password, '-nokeys', '-clcerts']
shell_command = subprocess.Popen(command, stdout=subprocess.PIPE,
stderr=subprocess.PIPE)
out, _ = shell_command.communicate()
if shell_command.returncode != 0:
debug("first password run failed")
command1 = ['openssl', 'pkcs12', '-legacy', '-in', pfx_file, '-passin',
'pass:' + self.password, '-nokeys', '-clcerts']
shell_command1 = subprocess.Popen(command1, stdout=subprocess.PIPE,
stderr=subprocess.PIPE)
out, err = shell_command1.communicate()
if shell_command1.returncode != 0:
return False
if Config.use_other_tls_id:
return True
out_str = out.decode('utf-8').strip()
# split only on commas that are not inside double quotes
subject = re.split(r'\s*[/,]\s*(?=([^"]*"[^"]*")*[^"]*$)',
re.findall(r'subject=/?(.*)$',
out_str, re.MULTILINE)[0])
cert_prop = {}
for field in subject:
if field:
cert_field = re.split(r'\s*=\s*', field)
cert_prop[cert_field[0].lower()] = cert_field[1]
if cert_prop['cn'] and re.search(r'@', cert_prop['cn']):
debug('Using cn: ' + cert_prop['cn'])
self.username = cert_prop['cn']
elif cert_prop['emailaddress'] and \
re.search(r'@', cert_prop['emailaddress']):
debug('Using email: ' + cert_prop['emailaddress'])
self.username = cert_prop['emailaddress']
else:
self.username = ''
self.alert("Unable to extract username "
"from the certificate")
return True
def __select_p12_file(self) -> str:
"""
prompt user for the PFX file selection
this method is not being called in the silent mode
therefore there is no code for this case
"""
if self.graphics == 'tty':
my_dir = os.listdir(".")
p_count = 0
pfx_file = ''
for my_file in my_dir:
if my_file.endswith(('.p12', '*.pfx', '.P12', '*.PFX')):
p_count += 1
pfx_file = my_file
prompt = "personal certificate file (p12 or pfx)"
default = ''
if p_count == 1:
default = '[' + pfx_file + ']'
while True:
inp = input(prompt + default + ": ")
output = inp.strip()
if default != '' and output == '':
return pfx_file
default = ''
if os.path.isfile(output):
return output
print("file not found")
cert = ""
if self.graphics == 'zenity':
command = ['zenity', '--file-selection',
'--file-filter=' + Messages.p12_filter +
' | *.p12 *.P12 *.pfx *.PFX', '--file-filter=' +
Messages.all_filter + ' | *',
'--title=' + Messages.p12_title]
shell_command = subprocess.Popen(command, stdout=subprocess.PIPE,
stderr=subprocess.PIPE)
cert, _ = shell_command.communicate()
if self.graphics == 'kdialog':
command = ['kdialog', '--getopenfilename',
'.', '*.p12 *.P12 *.pfx *.PFX | ' +
Messages.p12_filter, '--title=' + Messages.p12_title]
shell_command = subprocess.Popen(command, stdout=subprocess.PIPE,
stderr=subprocess.DEVNULL)
cert, _ = shell_command.communicate()
if self.graphics == 'yad':
command = ['yad', '--file',
'--file-filter=*.p12 *.P12 *.pfx *.PFX',
'-file-filter=*', '--title=' + Messages.p12_title]
shell_command = subprocess.Popen(command, stdout=subprocess.PIPE,
stderr=subprocess.DEVNULL)
cert, _ = shell_command.communicate()
return cert.decode('utf-8').strip()
@staticmethod
def __save_sb_pfx() -> None:
"""write the user PFX file"""
cert_file = get_config_path() + '/cat_installer/user.p12'
with open(cert_file, 'wb') as cert:
cert.write(base64.b64decode(Config.sb_user_file))
def __get_p12_cred(self):
"""get the password for the PFX file"""
if Config.eap_inner == 'SILVERBULLET':
self.__save_sb_pfx()
else:
if not self.silent:
self.pfx_file = self.__select_p12_file()
try:
copyfile(self.pfx_file, get_config_path() +
'/cat_installer/user.p12')
except (OSError, RuntimeError):
print(Messages.user_cert_missing)
sys.exit(1)
if self.silent:
username = self.username
if not self.__process_p12():
sys.exit(1)
if username:
self.username = username
else:
while not self.password:
self.password = self.prompt_nonempty_string(
0, Messages.enter_import_password)
if not self.__process_p12():
self.alert(Messages.incorrect_password)
self.password = ''
if not self.username:
self.username = self.prompt_nonempty_string(
1, Messages.username_prompt)
def __validate_user_name(self) -> bool:
# locate the @ character in username
pos = self.username.find('@')
debug("@ position: " + str(pos))
# trailing @
if pos == len(self.username) - 1:
debug("username ending with @")
self.alert(Messages.wrongUsernameFormat)
return False
# no @ at all
if pos == -1:
if Config.verify_user_realm_input:
debug("missing realm")
self.alert(Messages.wrongUsernameFormat)
return False
debug("No realm, but possibly correct")
return True
# @ at the beginning
if pos == 0:
debug("missing user part")
self.alert(Messages.wrongUsernameFormat)
return False
pos += 1
if Config.verify_user_realm_input:
if Config.hint_user_input:
if self.username.endswith('@' + Config.user_realm, pos - 1):
debug("realm equal to the expected value")
return True
debug("incorrect realm; expected:" + Config.user_realm)
self.alert(Messages.wrong_realm.format(Config.user_realm))
return False
if self.username.endswith(Config.user_realm, pos):
debug("realm ends with expected suffix")
return True
debug("realm suffix error; expected: " + Config.user_realm)
self.alert(Messages.wrong_realm_suffix.format(
Config.user_realm))
return False
pos1 = self.username.find('@', pos)
if pos1 > -1:
debug("second @ character found")
self.alert(Messages.wrongUsernameFormat)
return False
pos1 = self.username.find('.', pos)
if pos1 == pos:
debug("a dot immediately after the @ character")
self.alert(Messages.wrongUsernameFormat)
return False
debug("all passed")
return True
class WpaConf:
"""
Prepare and save wpa_supplicant config file
"""
@staticmethod
def __prepare_network_block(ssid: str, user_data: Type[InstallerData]) -> str:
interface = """network={
ssid=\"""" + ssid + """\"
key_mgmt=WPA-EAP
pairwise=CCMP
group=CCMP TKIP
eap=""" + Config.eap_outer + """
ca_cert=\"""" + get_config_path() + """/cat_installer/ca.pem\"""""""
identity=\"""" + user_data.username + """\"""""""
altsubject_match=\"""" + ";".join(Config.servers) + """\"
"""
if Config.eap_outer in ('PEAP', 'TTLS'):
interface += f"phase2=\"auth={Config.eap_inner}\"\n" \
f"\tpassword=\"{user_data.password}\"\n"
if Config.anonymous_identity != '':
interface += f"\tanonymous_identity=\"{Config.anonymous_identity}\"\n"
elif Config.eap_outer == 'TLS':
interface += f"\tprivate_key_passwd=\"{user_data.password}\"\n" \
f"\tprivate_key=\"{os.environ.get('HOME')}/.cat_installer/user.p12"
interface += "\n}"
return interface
def create_wpa_conf(self, ssids, user_data: Type[InstallerData]) -> None:
"""Create and save the wpa_supplicant config file"""
wpa_conf = get_config_path() + '/cat_installer/cat_installer.conf'
with open(wpa_conf, 'w') as conf:
for ssid in ssids:
net = self.__prepare_network_block(ssid, user_data)
conf.write(net)
class IwdConfiguration:
""" support the iNet wireless daemon by Intel """
def __init__(self):
self.config = ""
def write_config(self) -> None:
for ssid in Config.ssids:
with open('/var/lib/iwd/{}.8021x'.format(ssid), 'w') as config_file:
config_file.write(self.config)
def _create_eap_pwd_config(self, ssid: str, user_data: Type[InstallerData]) -> None:
""" create EAP-PWD configuration """
self.conf = """
[Security]
EAP-Method=PWD
EAP-Identity={username}
EAP-Password={password}
[Settings]
AutoConnect=True
""".format(username=user_data.username,
password=user_data.password)
def _create_eap_peap_config(self, ssid: str, user_data: Type[InstallerData]) -> None:
""" create EAP-PEAP configuration """
self.conf = """
[Security]
EAP-Method=PEAP
EAP-Identity={anonymous_identity}
EAP-PEAP-CACert={ca_cert}
EAP-PEAP-ServerDomainMask={servers}
EAP-PEAP-Phase2-Method=MSCHAPV2
EAP-PEAP-Phase2-Identity={username}@{realm}
EAP-PEAP-Phase2-Password={password}
[Settings]
AutoConnect=true
""".format(anonymous_identity=Config.anonymous_identity,
ca_cert=Config.CA, servers=Config.servers,
username=user_data.username,
realm=Config.user_realm,
password=user_data.password)
def _create_ttls_pap_config(self, ssid: str, user_data: Type[InstallerData]) -> None:
""" create TTLS-PAP configuration"""
self.conf = """
[Security]
EAP-Method=TTLS
EAP-Identity={anonymous_identity}
EAP-TTLS-CACert={ca_cert}
EAP-TTLS-ServerDomainMask={servers}
EAP-TTLS-Phase2-Method=Tunneled-PAP
EAP-TTLS-Phase2-Identity={username}@{realm}
EAP-TTLS-Phase2-Password={password}
[Settings]
AutoConnect=true
""".format(anonymous_identity=Config.anonymous_identity,
ca_cert=Config.CA, servers=Config.servers,
username=user_data.username,
realm=Config.user_realm,
password=user_data.password)
class CatNMConfigTool:
"""
Prepare and save NetworkManager configuration
"""
def __init__(self):
self.cacert_file = None
self.settings_service_name = None
self.connection_interface_name = None
self.system_service_name = "org.freedesktop.NetworkManager"
self.nm_version = None
self.pfx_file = None
self.settings = None
self.user_data = None
self.bus = None
def connect_to_nm(self) -> Union[bool, None]:
"""
connect to DBus
"""
try:
self.bus = dbus.SystemBus()
except AttributeError:
# since dbus existed but is empty we have an empty package
# this gets shipped by pyqt5
print("DBus not properly installed")
return None
except dbus.exceptions.DBusException:
print("Can't connect to DBus")
return None
# check NM version
self.__check_nm_version()
debug("NM version: " + self.nm_version)
if self.nm_version in ("0.9", "1.0"):
self.settings_service_name = self.system_service_name
self.connection_interface_name = \
"org.freedesktop.NetworkManager.Settings.Connection"
# settings proxy
sysproxy = self.bus.get_object(
self.settings_service_name,
"/org/freedesktop/NetworkManager/Settings")
# settings interface
self.settings = dbus.Interface(sysproxy, "org.freedesktop."
"NetworkManager.Settings")
elif self.nm_version == "0.8":
self.settings_service_name = "org.freedesktop.NetworkManager"
self.connection_interface_name = "org.freedesktop.NetworkMana" \
"gerSettings.Connection"
# settings proxy
sysproxy = self.bus.get_object(
self.settings_service_name,
"/org/freedesktop/NetworkManagerSettings")
# settings interface
self.settings = dbus.Interface(
sysproxy, "org.freedesktop.NetworkManagerSettings")
else:
print(Messages.nm_not_supported)
return None
debug("NM connection worked")
return True
def __check_opts(self) -> None:
"""
set certificate files paths and test for existence of the CA cert
"""
self.cacert_file = get_config_path() + '/cat_installer/ca.pem'
self.pfx_file = get_config_path() + '/cat_installer/user.p12'
if not os.path.isfile(self.cacert_file):
print(Messages.cert_error)
sys.exit(2)
def __check_nm_version(self) -> None:
"""
Get the NetworkManager version
"""
try:
proxy = self.bus.get_object(
self.system_service_name, "/org/freedesktop/NetworkManager")
props = dbus.Interface(proxy, "org.freedesktop.DBus.Properties")
version = props.Get("org.freedesktop.NetworkManager", "Version")
except dbus.exceptions.DBusException:
version = ""
if re.match(r'^1\.', version):
self.nm_version = "1.0"
return
if re.match(r'^0\.9', version):
self.nm_version = "0.9"
return
if re.match(r'^0\.8', version):
self.nm_version = "0.8"
return
self.nm_version = Messages.unknown_version
def __delete_existing_connection(self, ssid: str) -> None:
"""
checks and deletes earlier connection
"""
try:
conns = self.settings.ListConnections()
except dbus.exceptions.DBusException:
print(Messages.dbus_error)
exit(3)
for each in conns:
con_proxy = self.bus.get_object(self.system_service_name, each)
connection = dbus.Interface(
con_proxy,
"org.freedesktop.NetworkManager.Settings.Connection")
try:
connection_settings = connection.GetSettings()
if connection_settings['connection']['type'] == '802-11-' \
'wireless':
conn_ssid = byte_to_string(
connection_settings['802-11-wireless']['ssid'])
if conn_ssid == ssid:
debug("deleting connection: " + conn_ssid)
connection.Delete()
except dbus.exceptions.DBusException:
pass
def __add_connection(self, ssid: str) -> None:
debug("Adding connection: " + ssid)
server_alt_subject_name_list = dbus.Array(Config.servers)
server_name = Config.server_match
if self.nm_version in ("0.9", "1.0"):
match_key = 'altsubject-matches'
match_value = server_alt_subject_name_list
else:
match_key = 'subject-match'
match_value = server_name
s_8021x_data = {
'eap': [Config.eap_outer.lower()],
'identity': self.user_data.username,
'ca-cert': dbus.ByteArray(
"file://{0}\0".format(self.cacert_file).encode('utf8')),
match_key: match_value}
if Config.eap_outer in ('PEAP', 'TTLS'):
s_8021x_data['password'] = self.user_data.password
s_8021x_data['phase2-auth'] = Config.eap_inner.lower()
if Config.anonymous_identity != '':
s_8021x_data['anonymous-identity'] = Config.anonymous_identity
s_8021x_data['password-flags'] = 0
elif Config.eap_outer == 'TLS':
s_8021x_data['client-cert'] = dbus.ByteArray(
"file://{0}\0".format(self.pfx_file).encode('utf8'))
s_8021x_data['private-key'] = dbus.ByteArray(
"file://{0}\0".format(self.pfx_file).encode('utf8'))
s_8021x_data['private-key-password'] = self.user_data.password
s_8021x_data['private-key-password-flags'] = 0
s_con = dbus.Dictionary({
'type': '802-11-wireless',
'uuid': str(uuid.uuid4()),
'permissions': ['user:' + os.environ.get('USER')],
'id': ssid
})
s_wifi = dbus.Dictionary({
'ssid': dbus.ByteArray(ssid.encode('utf8')),
'security': '802-11-wireless-security'
})
s_wsec = dbus.Dictionary({
'key-mgmt': 'wpa-eap',
'proto': ['rsn'],
'pairwise': ['ccmp'],
'group': ['ccmp', 'tkip']
})
s_8021x = dbus.Dictionary(s_8021x_data)
s_ip4 = dbus.Dictionary({'method': 'auto'})
s_ip6 = dbus.Dictionary({'method': 'auto'})
con = dbus.Dictionary({
'connection': s_con,
'802-11-wireless': s_wifi,
'802-11-wireless-security': s_wsec,
'802-1x': s_8021x,
'ipv4': s_ip4,
'ipv6': s_ip6
})
self.settings.AddConnection(con)
def add_connections(self, user_data: Type[InstallerData]):
"""Delete and then add connections to the system"""
self.__check_opts()
self.user_data = user_data
for ssid in Config.ssids:
self.__delete_existing_connection(ssid)
self.__add_connection(ssid)
for ssid in Config.del_ssids:
self.__delete_existing_connection(ssid)
Messages.quit = "¿Deseas abandonar?"
Messages.username_prompt = "introduce tu identificador de usuario"
Messages.enter_password = "introduce la contraseña"
Messages.enter_import_password = "introduce tu contraseña de " \
"importación"
Messages.credentials_prompt = "Por favor, introduce tus credenciales:"
Messages.incorrect_password = "contraseña incorrecta"
Messages.repeat_password = "repite tu contraseña"
Messages.passwords_differ = "las contraseñas no coinciden"
Messages.installation_finished = "Instalación correcta"
Messages.cat_dir_exisits = "La carpeta {} ya existe. Algunos de sus " \
"archivos pueden ser sobrescritos."
Messages.cont = "¿Continuar?"
Messages.nm_not_supported = "Esta versión de NetworkManager no está " \
"soportada"
Messages.cert_error = "No se ha encontrado el archivo de certificado. " \
"Parece un error de CAT."
Messages.unknown_version = "Versión desconocida"
Messages.dbus_error = "Problema con la conexión con DBus. Una " \
"ejecución de sudo podría ayudar."
Messages.yes = "S"
Messages.no = "N"
Messages.ok = "OK"
Messages.p12_filter = "fichero con certificado personal (p12 o pfx)"
Messages.all_filter = "Todos los ficheros"
Messages.p12_title = "fichero con certificado personal (p12 o pfx)"
Messages.save_wpa_conf = "La configuración de NetworkManager falló, " \
"pero podemos generar un archivo de configuración para wpa_supplicant " \
"si lo deseas. Aviso: tu contraseña se almacenará sin cifrar en este " \
"archivo."
Messages.save_wpa_confirm = "Escribir el archivo"
Messages.wrongUsernameFormat = "Error: tu nombre de usuario debe tener " \
"la forma usuario@dominio. Por ejemplo: juan AT example.net"
Messages.wrong_realm = "Error: tu nombre de usuario debe tener la " \
"forma usuario@{}. Por favor, introduce el nombre de usuario de forma " \
"correcta."
Messages.wrong_realm_suffix = "Error: tu nombre de usuario debe tener " \
"la forma 'usuario@dominio' y terminar con '{}'. Por favor, introduce " \
"el nombre de usuario de forma correcta."
Messages.user_cert_missing = "No se ha encontrado un certificado " \
"personal"
Messages.cat_dir_exists = "La carpeta {} ya existe. Algunos de sus " \
"archivos pueden ser sobrescritos."
Config.instname = "Basque Center for Applied Mathematics"
Config.profilename = "bcam"
Config.url = "la página de soporte local de eduroam®"
Config.email = "support AT bcamath.org"
Config.title = "eduroam CAT"
Config.server_match = "eduroam.bcamath.org"
Config.eap_outer = "PEAP"
Config.eap_inner = "MSCHAPV2"
Config.init_info = "Este instalador ha sido preparado para {0}\n\nMás " \
"información y comentarios:\n\nEMAIL: {1}\nWWW: {2}\n\nInstalador " \
"creado con software del proyecto GEANT."
Config.init_confirmation = "Este instalador sólo funcionará " \
"correctamente si eres miembro de {0}."
Config.user_realm = "bcamath.org"
Config.ssids = ['eduroam']
Config.del_ssids = []
Config.servers = ['DNS:eduroam.bcamath.org']
Config.use_other_tls_id = False
Config.tou = ""
Config.CA = """-----BEGIN CERTIFICATE-----
MIIEkDCCA3igAwIBAgIUPcVqszMqs+nORFFoLxHoxh/hREEwDQYJKoZIhvcNAQEL
BQAwgYQxCzAJBgNVBAYTAkVTMRAwDgYDVQQIDAdCaXprYWlhMQ8wDQYDVQQHDAZC
aWxiYW8xEDAOBgNVBAoMB0JDQU1hdGgxIjAgBgkqhkiG9w0BCQEWE3N1cHBvcnRA
YmNhbWF0aC5vcmcxHDAaBgNVBAMME2VkdXJvYW0uYmNhbWF0aC5vcmcwHhcNMjMw
NzA0MTIwODQyWhcNMjYwNzAzMTIwODQyWjCBhDELMAkGA1UEBhMCRVMxEDAOBgNV
BAgMB0JpemthaWExDzANBgNVBAcMBkJpbGJhbzEQMA4GA1UECgwHQkNBTWF0aDEi
MCAGCSqGSIb3DQEJARYTc3VwcG9ydEBiY2FtYXRoLm9yZzEcMBoGA1UEAwwTZWR1
cm9hbS5iY2FtYXRoLm9yZzCCASIwDQYJKoZIhvcNAQEBBQADggEPADCCAQoCggEB
ALgXDakBSBdzKqIhxurU9omkhvfjYbwe/HZxtPyDaMyBC2nwMaDASaFObCAznHza
kVAdW3zkTSW3C7MmgaZyHN9MlIWjAGxYULA4R6zQLICiIPX6IoFRJQlDeddj+aS/
HvB12pfkzxwmmlG9guZqGvTMzgxUFR/LjdDEsorfkQ2Iy+Ef7ENw79WONZUxW/qr
nBOU/4mpSITMEeedARa4RvRQstWZ12PLb9GbcvmgEUmiaOUnQg6dnNet+id5vMPF
rR+k2akwHj4QNEEu+uEbGD3OF+qN63/oWlRFkBjNBBMbqJEBTUKfVfj2fwANMVDc
srI1fweytKKKx+JyV3OSGT0CAwEAAaOB9zCB9DAdBgNVHQ4EFgQUBBwCHRMfaaeP
BRbQwvK9j9aPyBMwgcQGA1UdIwSBvDCBuYAUBBwCHRMfaaePBRbQwvK9j9aPyBOh
gYqkgYcwgYQxCzAJBgNVBAYTAkVTMRAwDgYDVQQIDAdCaXprYWlhMQ8wDQYDVQQH
DAZCaWxiYW8xEDAOBgNVBAoMB0JDQU1hdGgxIjAgBgkqhkiG9w0BCQEWE3N1cHBv
cnRAYmNhbWF0aC5vcmcxHDAaBgNVBAMME2VkdXJvYW0uYmNhbWF0aC5vcmeCFD3F
arMzKrPpzkRRaC8R6MYf4URBMAwGA1UdEwQFMAMBAf8wDQYJKoZIhvcNAQELBQAD
ggEBAFj65Br0ERUsSfYncWncqPybVv9Eqii/dXXPxKhjMXhqrBka3vtNtZEjdjgr
gVE5sbqgB3ADmvZRyD64+x1o2l7B1TeVhSuEoWTxh+2KGDUv6Ns9UK0rmepyGVyX
mDtrLPYxSmJLyKH32fLNavWfr+k/t/8C4s12z9dBFKiAB/qQ1z51AnmdNifY0lzR
cmLm+Lc3U/g5C5P9oha7R6DH/TH3PUY+zoJRyPg2vU+vomChEnEBKNCmL4vDr4ZS
P56CZfaTcrrvWObAAMpRNqRWNXf+vC6PaECc1ODx83kprN/6GK+IXtuYW1eUslBq
6QyAu/wzPO1T/y1AVnwzit0CmRU=
-----END CERTIFICATE-----
"""
if __name__ == '__main__':
run_installer()
-
[[cat-users]] Problems with eduroam script for Ubuntu,
Joel Garcia, 11/27/2024
- Re: [[cat-users]] Problems with eduroam script for Ubuntu, Joel Garcia, 11/27/2024
-
Re: [[cat-users]] Problems with eduroam script for Ubuntu,
Tomasz Wolniewicz, 11/28/2024
-
Re: [[cat-users]] Problems with eduroam script for Ubuntu,
Tomasz Wolniewicz, 11/28/2024
- Re: [[cat-users]] Problems with eduroam script for Ubuntu, Joel Garcia, 11/28/2024
-
Re: [[cat-users]] Problems with eduroam script for Ubuntu,
Tomasz Wolniewicz, 11/28/2024
Archive powered by MHonArc 2.6.24.
