[Michele de Varda <michele.devarda AT unimi.it>]

Hi,

On 06/26/2015 12:19 PM, Stefan Winter wrote:
> Hi,
>
> > The only way for authenticating with Android is configuring manually the
> > Wi-Fi network with PEAP, MSCHAPv2 and without certificate.
> This is NOT the case for other users of the app. Something must be wrong
> here.
the APP configure correctly PEAP as EAP method and MSCHAPv2 as Phase 2
Authentication.

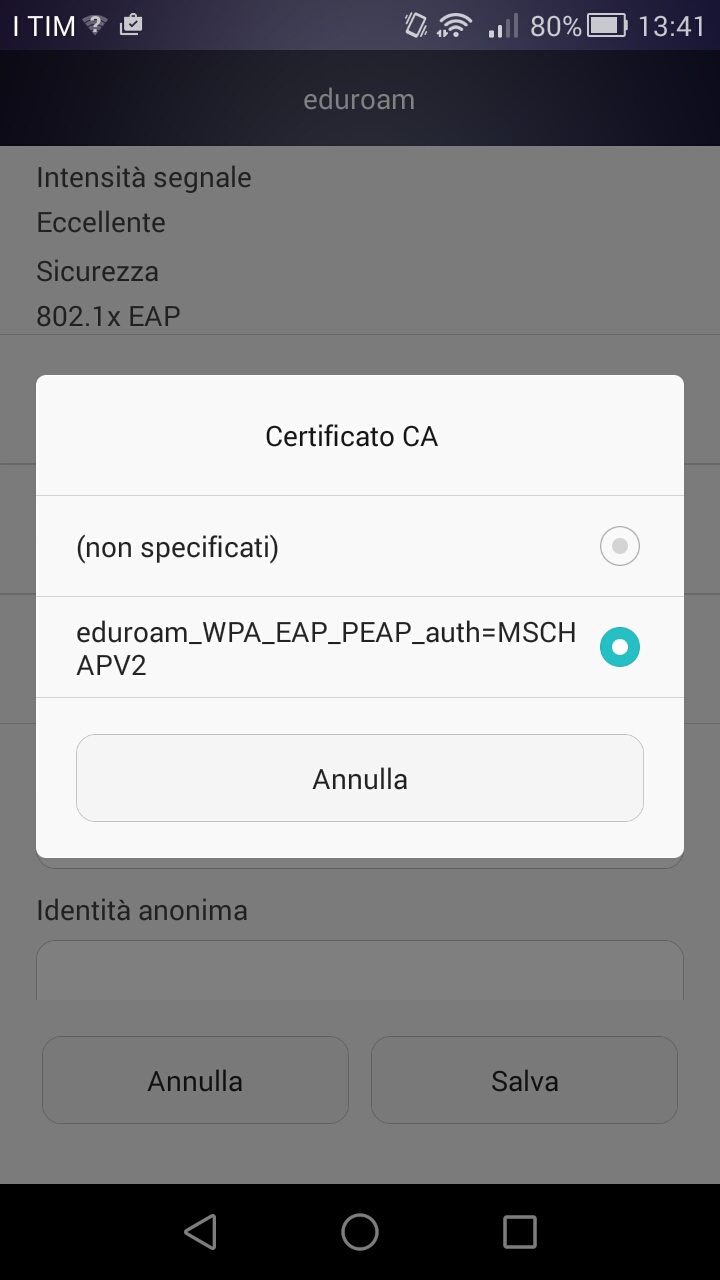

In the CA certificate field of my device I found this certificate name
(see screenshot):

eduroam_WPA_EAP_PEAP_auth=MSCHAPV2

It is correct? The certificate name should be "VeriSign Class 3 Public
Primary Certification Authority - G5"?


> > In the EduroamCAT debug window I see only the root certificate with
> > CN=VeriSign Class 3 Public Primary Certification Authority - G5
> > Is it possible that Android needs to install also the intermediate
> > cert?  The Intermediate cert is present in our CAT config.
> The intermediate needs to be present in the EAP conversation. That is,
> your RADIUS server needs to send it along with the server certificate.
>
> Where in the FreeRADIUS config did you put the intermediate certificate?

In eap.conf (see attached file)
The name of the intermediate certificate is eduroam_chain.crt

Regards,

Michele

> Greetings,
>
> Stefan Winter
>
> > Thanks a lot,
> >
> > Michele
> >
> >
> > On 06/26/2015 11:17 AM, Stefan Winter wrote:
> > > Hello,
> > >
> > > I have just tested your realm against the Verisign root and everything
> > > works just fine.
> > >
> > > There is not a single warning or error in the realm checks.
> > >
> > > Could you verify if you still have an issue?
> > >
> > > Greetings,
> > >
> > > Stefan Winter
> > >
> > > On 25.06.2015 15:44, Michele de Varda wrote:
> > > > Hi Gareth,
> > > > thank you for your answer.
> > > >
> > > > In the Radius server we installed  both server certificate (in attach
> > > > our eap.conf file):
> > > > /[root@nekkar Verisign-Cert]# openssl x509  -noout -text -in
> > > > eduroam_unimi_it.crt //
> > > > //Certificate://
> > > > //    Data://
> > > > //        Version: 3 (0x2)//
> > > > //        Serial Number://
> > > > //            35:b3:75:3d:94:03:f3:cb:e6:44:a1:bc:9d:bb:1a:ed//
> > > > //        Signature Algorithm: sha256WithRSAEncryption//
> > > > //        Issuer: C=US, O=Symantec Corporation, OU=Symantec Trust
> > > > Network, CN=Symantec Class 3 Secure Server CA - G4//
> > > > //        Validity//
> > > > //            Not Before: Mar  2 00:00:00 2015 GMT//
> > > > //            Not After : Mar  2 23:59:59 2017 GMT//
> > > > //        Subject: C=IT, ST=Milano, L=Milano, O=Universita' degli Studi
> > > > di Milano, OU=Div. Telecomunicazioni, CN=eduroam.unimi.it//
> > > > //        Subject Public Key Info://
> > > > //            Public Key Algorithm: rsaEncryption//
> > > > //            RSA Public Key: (2048 bit)//.........
> > > >
> > > > /and chain file certificate:/
> > > >
> > > > [root@nekkar Verisign-Cert]# openssl x509  -noout -text -in
> > > > eduroam_chain.crt
> > > > Certificate:
> > > >      Data:
> > > >          Version: 3 (0x2)
> > > >          Serial Number:
> > > >              51:3f:b9:74:38:70:b7:34:40:41:8d:30:93:06:99:ff
> > > >          Signature Algorithm: sha256WithRSAEncryption
> > > >          Issuer: C=US, O=VeriSign, Inc., OU=VeriSign Trust Network,
> > > > OU=(c) 2006 VeriSign, Inc. - For authorized use only, CN=VeriSign Class
> > > > 3 Public Primary Certification Authority - G5
> > > >          Validity
> > > >              Not Before: Oct 31 00:00:00 2013 GMT
> > > >              Not After : Oct 30 23:59:59 2023 GMT
> > > >          Subject: C=US, O=Symantec Corporation, OU=Symantec Trust
> > > > Network, CN=Symantec Class 3 Secure Server CA - G4
> > > >          Subject Public Key Info:
> > > >              Public Key Algorithm: rsaEncryption
> > > >              RSA Public Key: (2048 bit).......
> > > >
> > > > Also in the CAT configuration we put root certificate and chain file
> > > > (see attached screenshot). Initially in the cat conf we put only the
> > > > root certificate and it worked fine only with Windows and iOS, but
> > > > didn't work with MAC OS X, so we put the chain ca file./
> > > > //Do you have any suggestions/?
> > > >
> > > > Thank you again,
> > > >
> > > > Michele
> > > >
> > > > /
> > > >
> > > >
> > > > On 06/25/2015 02:41 PM, Ayres G.J. wrote:
> > > > > Hi,
> > > > >
> > > > >
> > > > >
> > > > > I have tested your eap-config and it looks like it parses OK, and
> > > > > installs a Verisign CA Cert:
> > > > >
> > > > > CERT Subject=CN=VeriSign Class 3 Public Primary Certification
> > > > > Authority - G5, OU="(c) 2006 VeriSign, Inc. - For authorized use
> > > > > only", OU=VeriSign Trust Network, O="VeriSign, Inc.", C=US
> > > > >
> > > > > Is this the correct CA cert you have configured in your radius setup?
> > > > >
> > > > >
> > > > >
> > > > > You have a certificate chain present, so you need to ensure your
> > > > > radius server is sending the intermediates.
> > > > >
> > > > > I think you can test this via cat.eduroam.org site using the realm check.
> > > > >
> > > > > Can you test this please?
> > > > >
> > > > >
> > > > >
> > > > > Thanks,
> > > > >
> > > > > Gareth Ayres.
> > > > >
> > > > >
> > > > >
> > > > > *From:*Michele de Varda
> > > > > [mailto:michele.devarda AT unimi.it]
> > > > > *Sent:* 25 June 2015 12:56
> > > > > *To:*
> > > > > cat-users AT geant.net
> > > > > *Cc:* Claudio Lori
> > > > > *Subject:* Re: [cat-users] Impossible to download Windows client
> > > > >
> > > > >
> > > > >
> > > > > Today the Windows CAT download for Univ. degli Studi di Milano seems ok.
> > > > >
> > > > > The configuration for Android is still not working: we tested
> > > > > eduroamCAT app 1.0.16 only with 2 kitkat 4.4 devices and we obtain the
> > > > > RADIUS  TLS error (unknown CA):
> > > > > /Thu Jun 25 13:44:10 2015 : Auth: Login incorrect (TLS Alert
> > > > > read:fatal:unknown CA):
> > > > > [//michele.devarda AT unimi.it/
> > > > > <mailto:michele.devarda AT unimi.it>/]
> > > > >  (from client IAM2 port 109 cli
> > > > > b4:30:52:28:38:d2)/
> > > > >
> > > > > The CA config. works fine with WIndows, Mac and iOS systems.
> > > > > I attached an app screenshot, I don't know if is it possible copy and
> > > > > past the complete WiFi Logs from EduroamCAT App.
> > > > >
> > > > >
> > > > > Thank you for your support,
> > > > >
> > > > > Michele de Varda
> > > > >
> > > > > On 06/24/2015 05:12 PM, Michele de Varda wrote:
> > > > >
> > > > >      Dear CAT developers,
> > > > >
> > > > >      I'm the CAT admin for Univ. of Milan.
> > > > >      Today I did some tests changing our CA chain because the CAT
> > > > >      Android client doesn't work for our university, this is the RADIUS
> > > > >      log:
> > > > >      /Wed Jun 24 11:33:02 2015 : Auth: Login incorrect (TLS Alert
> > > > >      read:fatal:unknown CA):
> > > > > [//michele.devarda AT unimi.it/
> > > > >
> > > > > <mailto:michele.devarda AT unimi.it>/]/
> > > > >
> > > > >      Now we can not download Windows configuration, we receive this
> > > > >      message:
> > > > >      /"This is embarrassing. Generation of your installer failed.
> > > > >      System admins have been notified. We will try to take care of the
> > > > >      problem as soon as possible."/
> > > > >
> > > > >      Can you help us?
> > > > >
> > > > >      Thank you for your great job
> > > > >
> > > > >
> > > > >      Michele de Varda
> > > > >
> > > > >
> > > > >
> > > > >      Università degli Studi di Milano
> > > > >
> > > > >      Divisione Telecomunicazioni
> > > > >
> > > > >      via G. Colombo 46
> > > > >
> > > > >      20133 Milano
> > > > >
> > > > >      Tel. 02 50315306
> > > > --
> > > > Michele de Varda
> > > >
> > > > Università degli Studi di Milano
> > > > Divisione Telecomunicazioni
> > > > via G. Colombo 46
> > > > 20133 Milano
> > > > Tel. 02 50315306
> > --
> > Michele de Varda
> >
> > Università degli Studi di Milano
> > Divisione Telecomunicazioni
> > via G. Colombo 46
> > 20133 Milano
> > Tel. 02 50315306

--
Michele de Varda

Università degli Studi di Milano
Divisione Telecomunicazioni
via G. Colombo 46
20133 Milano
Tel. 02 50315306

Attachment: Screenshot_Android_CA.jpeg
Description: JPEG image

# -*- text -*-
##
##  eap.conf -- Configuration for EAP types (PEAP, TTLS, etc.)
##
##      $Id$

        eap eap-personale {
                default_eap_type = peap
                timer_expire     = 60
                ignore_unknown_eap_types = no
                cisco_accounting_username_bug = no
                max_sessions = 2048

                tls {
                        certdir = ${confdir}/certs/Verisign-Cert
                        cadir = ${confdir}/certs/Verisign-Cert
                        private_key_password = **********
                        private_key_file = ${certdir}/private.pem
                        certificate_file = ${certdir}/eduroam_unimi_it.crt
                        CA_file = ${cadir}/eduroam_chain.crt
                        dh_file = ${certdir}/dh
                        random_file = /dev/urandom
                        fragment_size = 1024
                        include_length = yes
                        check_crl = no
                        cipher_list = "DEFAULT"
                }

                ttls {
                        default_eap_type = mschapv2
                        copy_request_to_tunnel = yes
                        use_tunneled_reply = yes
                        virtual_server = "eduroam-personale-inner-tunnel"
                }

                peap {
                        default_eap_type = mschapv2
                        copy_request_to_tunnel = yes
                        use_tunneled_reply = yes
                        virtual_server = "eduroam-personale-inner-tunnel"
                }

                mschapv2 {
                }
        }



        eap eap-unimi {
                default_eap_type = peap
                timer_expire     = 60
                ignore_unknown_eap_types = no
                cisco_accounting_username_bug = no
                max_sessions = 2048

                tls {
                        certdir = ${confdir}/certs/Verisign-Cert
                        cadir = ${confdir}/certs/Verisign-Cert
                        private_key_password = *********
                        private_key_file = ${certdir}/private.pem
                        certificate_file = ${certdir}/eduroam_unimi_it.crt
                        CA_file = ${cadir}/eduroam_chain.crt
                        dh_file = ${certdir}/dh
                        random_file = /dev/urandom
                        fragment_size = 1024
                        include_length = yes
                        check_crl = no
                        cipher_list = "DEFAULT"
                }

                ttls {
                        default_eap_type = mschapv2
                        copy_request_to_tunnel = yes
                        use_tunneled_reply = yes
                        virtual_server = "eduroam-unimi-inner-tunnel"
                }

                peap {
                        default_eap_type = mschapv2
                        copy_request_to_tunnel = yes
                        use_tunneled_reply = yes
                        virtual_server = "eduroam-unimi-inner-tunnel"
                }

                mschapv2 {
                }
        }
